Victron Phoenix Smart IP43 Charger 12/50 (1+1) 120-240V

Victron EnergySKU: PSC125051095

Price:
Sale price€443,81 EUR Regular price€600,95 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days
 More payment options

Description

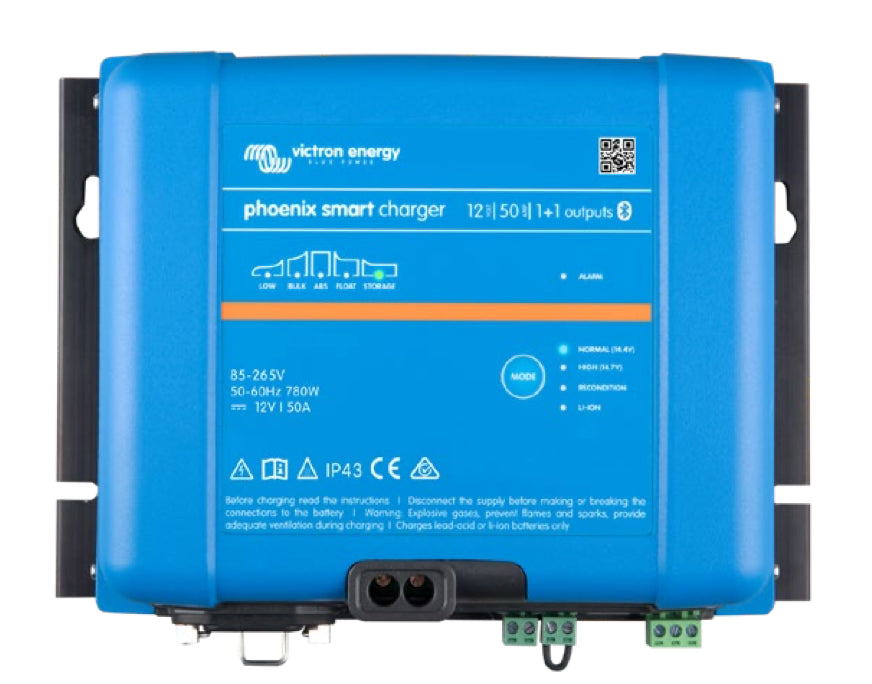

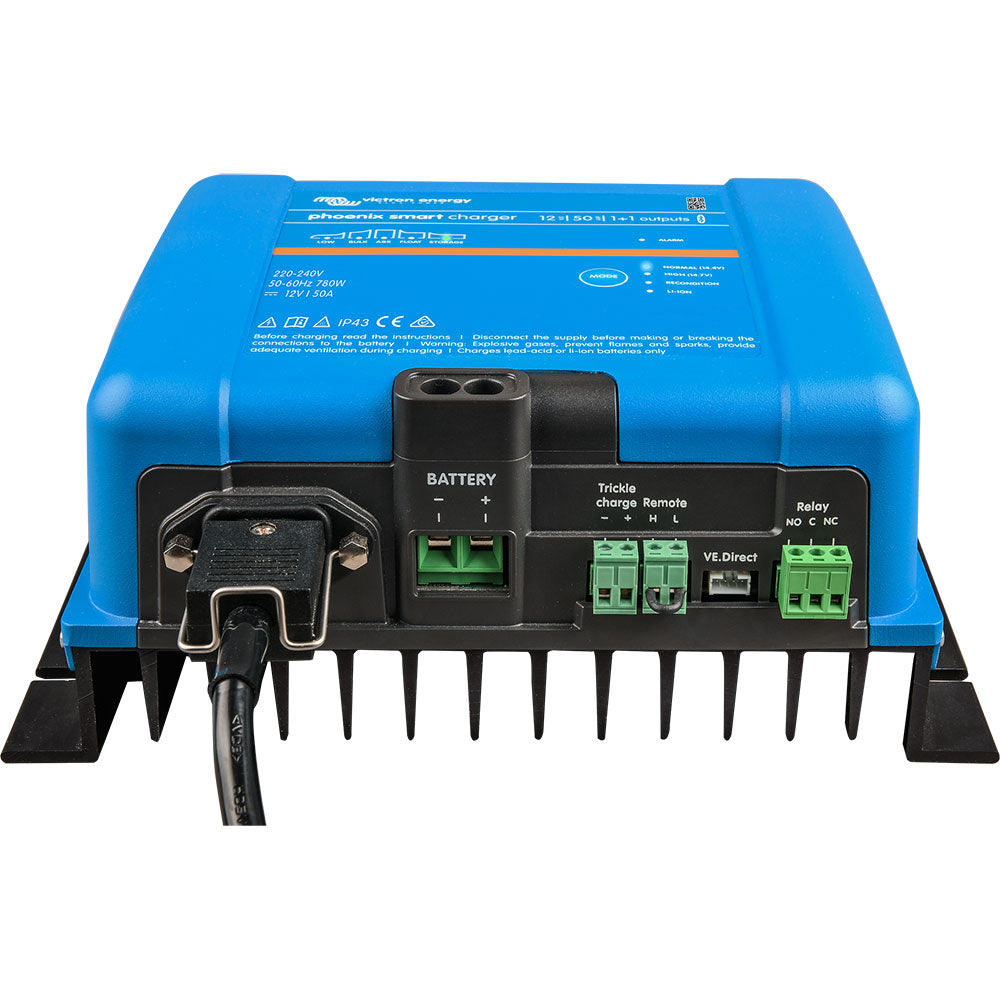

The Phoenix Smart Charger 12/50 (1+1) IP43 from Victron Energy (MPN PSC125051095) is a powerful battery charger of the latest generation. The device is designed for 12V battery voltage and, in addition to the strong 50a main charging output, also offers a secondary load output with 3a charging power for a starter battery.

The Phoenix Smart Charger 12/50 (1+1) IP43 fits into the integrated Bluetooth module in which the Victron smart family is becoming increasingly becoming, which can be perfectly networked and can also be controlled centrally. In addition to the Bluetooth module, there is also a VE.Direct connection and a freely programmable relay. Optionally, the Smart Battery Sense to control the battery temperature compensation can also be connected. The proven five-stage loading algorithm and the possibility of programming its own charging algorithm make the Phoenix Smart Charger 12/50 (1+1) IP43 a universally applicable high-tec battery cador, which can optimally load almost every battery type.

Perfect battery charger for boats and vehicles

Phoenix Smart Battery charger devices that (1+1) contain in the model name have a main charging output, with a full charging current and a 3A side charging output for charging starter batteries. These models are therefore particularly suitable for the mobile area. The Phoenix Smart models with (3) in the model designation were developed particularly with regard to the needs in the marine area and offer three full power outputs for charging 3 battery benches.

Highlights of the Phoenix Smart Charger 12/50 (1+1) IP43

  • Integrated Bluetooth module
  • Integrated VE.Direct connections
  • 1x 50a main charging output and 1 further side charging output for starter batteries
  • Automatic voltage compensation
  • adaptive, five -stage loading algorithm
  • Variable constant stress phase
  • Eye all common types of battery
  • Prevention of damage caused by gastroplating thanks
  • Reduced aging through storage with storage mode
  • Lifepo4 also charges and can be connected to a BMS via optocoupler
  • Fully programmable charging algorithm
  • Remote on/off
  • can be used as a power source

Technical features of the Phoenix Smart 12/30 (1+1)

  • Victron part number: PSC125051095
  • Number of batteries: 1 + 1 (1 main output with full power + 1x starter battery (max. 3A load)
  • Maximum nominal charging current: 50A, battery voltage: 12V
  • High efficiency: 94%
  • Protection class: IP43 (electronic components), IP22 (connection area)
  • You can find more data with the technical data

Three integrated technologies for all -round healthy batteries

Variable constant voltage phase: always delivers the correct charging quantity

With a low battery discharge (e.g. a yacht connected to country current), a short constant voltage phase is chosen to avoid an overload. After a deep discharge, the constant voltage phase is automatically extended to ensure that the battery is fully charged.

Prevention of damage caused by excessive gastung: the battery-safe mode

In order to shorten the loading time, the highest possible charging current was selected together with a high constant voltage. However, in order for an excessive gas development to be avoided towards the end of the constant trump phase, the charger limits the speed of the voltage climb after the gas voltage has been reached (see also the graphics in the brochure).

Less maintenance and aging in the resting state of the battery: the storage mode

The warehouse mode is always activated if no discharge has been carried out within 24 hours. In storage mode, the loading voltage is then reduced to 2.2 V/cell (13.2 V for a 24 V battery) in order to minimize gas development and corrosion on the positive plates. Once a week, the voltage is increased to the level of the gas voltage. This achieves a kind of compensation charge that prevents the electrolystic layering and sulfating - the two main reasons for premature battery failure.

Also perfect for Lifepo4 battery

The Phoenix Smart Charger 12/50 (1+1) IP43 can be attached to an on/off control by connecting a relay or an optocoupler output with an open collector from an Li-Ion BMS to a remote-controlled one/output port will. Alternatively, voltage and electricity can also be ruled completely via Bluetooth.

Ve.direct interface, bluetooth and programmable relay

The Phoenix Smart Charger 12/50 (1+1) IP43 from VICTRON is ideal thanks to the VE.Direct ports for a wired data connection with a color control panel, a PC or other devices. Also note the VictronConnect app for Android and iOS, which you can use with any smartphone or tablet to wirelessly read and read out your Phoenix Charger via Bluetooth. The programmable relay can also be programmed via the VE.Direct interface or a Bluetooth-compatible device in order to trigger an alarm or other events.

Required accessories

Please note that an AC connection cable is required for the shot of the Phoenix Smart Charger 12/50 (1+1) IP43 to the power grid. This is not included. You can find the right connection cable here:

Frenchman Energy

Frenchman marine



scope of delivery

1x PSC125051095 Victron Phoenix Smart Charger 12/50 (1+1) IP43

1x AC cable clamp

1x operating instructions

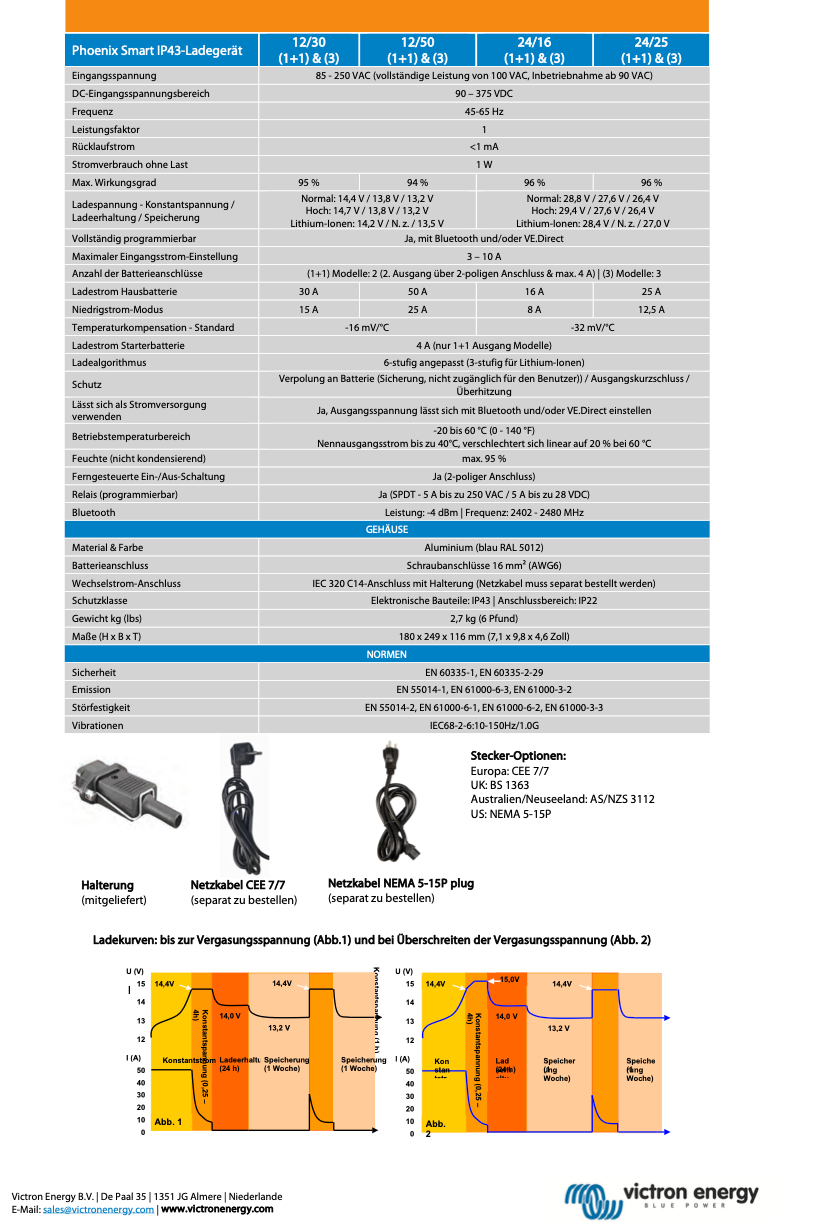

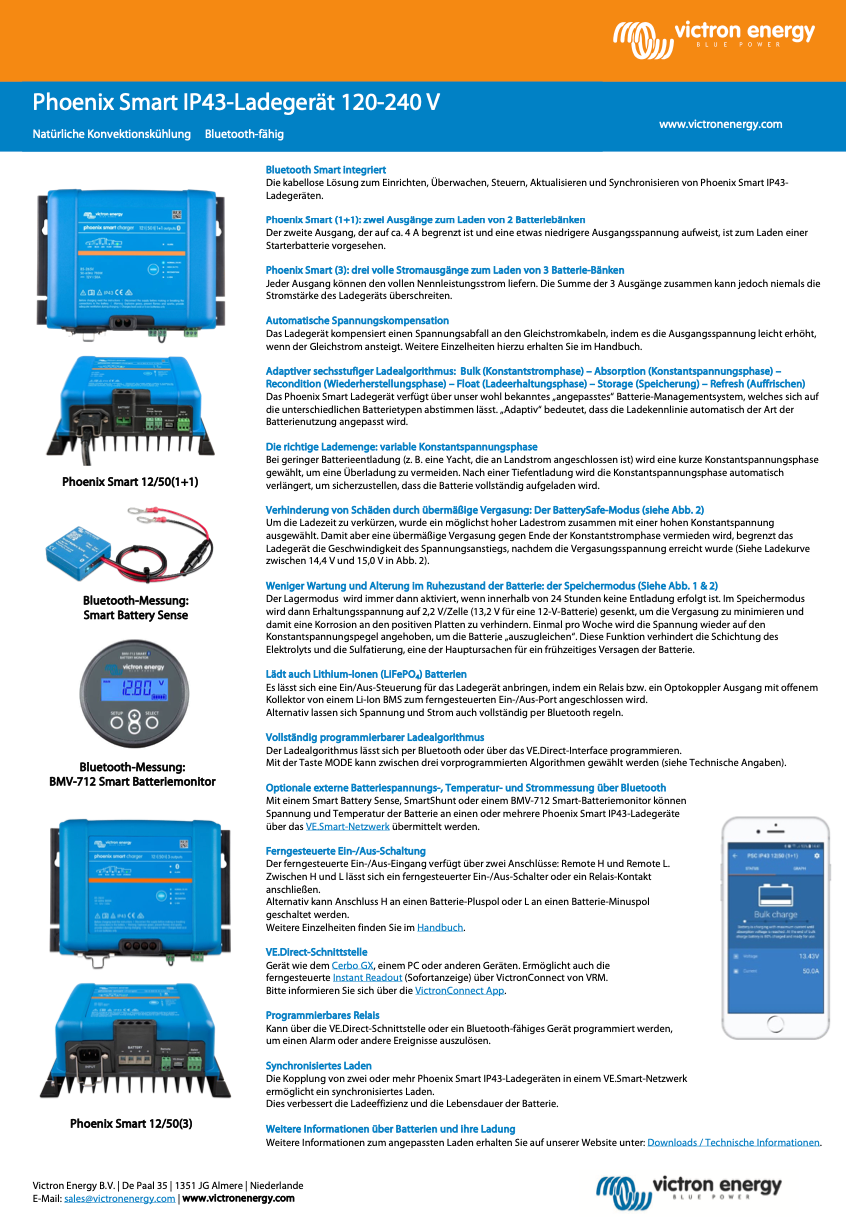

data sheet

IP protection

IP43

Communication sports

Bluetooth, ve.direct

EAN

Manufacturer part number

PSC125051095

Ambient temperature

-20 ° C - +60 ° C

Battery voltage

12V

Number of charging outputs

1 + 1

Battery type adjustable

Acid, gel, AGM, LIFEPO4

Charging

Adaptive battery management

Protective functions

Polation on the battery, output ceiling, over temperature

guarantee

2 years

Temperature compensation

Yes, via Smart Battery Sense

humidity

Max. 95 %, not condensing

Manufacturer

Victron Energy

weight

3.6 kg

Dimensions (LXBXH)

24.9 x 18 x 10 cm

GPSR Information

Hersteller
Name: Victron Energy BV
Anschrift: The Palm 35
PLZ, Ort: 1351, JG Almere
Land: Netherlands
Email: sales@victronenergy.com
Web: https://www.victronenergy.com
