Victron Smart Battery Sense Long Range

VictronSKU: SBS050150200

Price:
Sale price€43,40 EUR Regular price€49,98 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

Victron Energy's Smart Battery Sense Long Range (MPN SBS050150200) is a wireless battery voltage and temperature sensor for many Victron chargers and solar chargers or combinations of devices. The Battery Sense Long Range is identical to the standard version. Only the transmission power has been increased, which now allows a distance of up to 10m between the battery and charger instead of 3m. With a voltage and temperature sensor, the batteries are charged better, the charging efficiency is improved and the life expectancy of your batteries is extended, since the charging voltage is constantly adapted to the battery temperature.

Features of the Smart Battery Sense

  • avoids errors due to voltage loss due to cable resistance
  • 10m signal range
  • ensures the correct charging voltage
  • wireless communication with the Victron Solar charge controllers via the Smart Network
  • works with 12V, 24V and 48V batteries

Battery charging is improved

By measuring the voltage directly at the battery bank terminals, errors caused by voltage loss due to cable resistance are avoided. This ensures the correct charging voltage.

With lead-acid batteries, the battery temperature data is used to adjust the charging voltages: cold batteries require a higher charging voltage, while hot batteries require a lower charging voltage. For lithium batteries, the temperature data is used to stop charging when the batteries are too cold: charging lithium batteries at temperatures around freezing or below will permanently damage the cells.

wireless communication

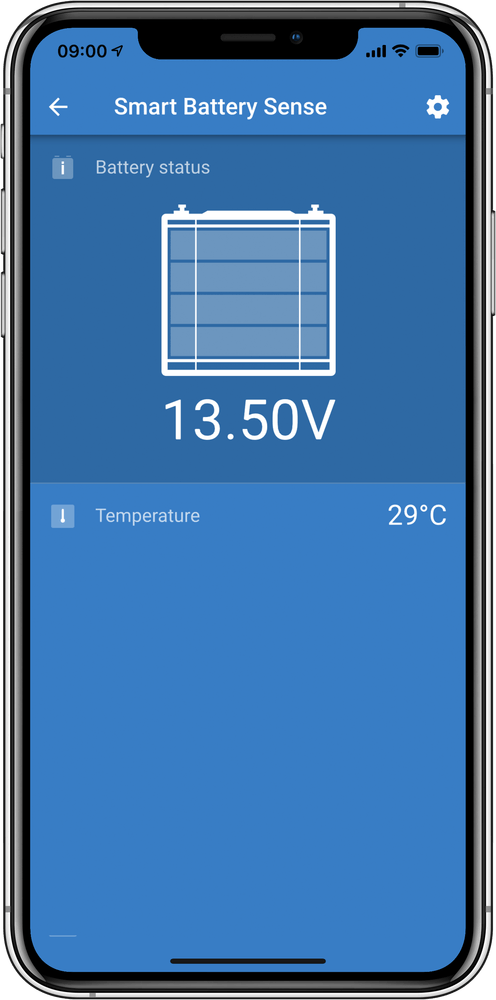

The connection between the Smart Battery Sense and one or more solar chargers is wireless. A VE.Smart Network is used - a wireless technology based on the Bluetooth Smart function. The transmitted data can be used simultaneously by one, two or more solar chargers connected to the same 12V, 24V or 48V battery bank. The Smart Network is set up using the VictronConnect App.

the installation: neat, simple, smart

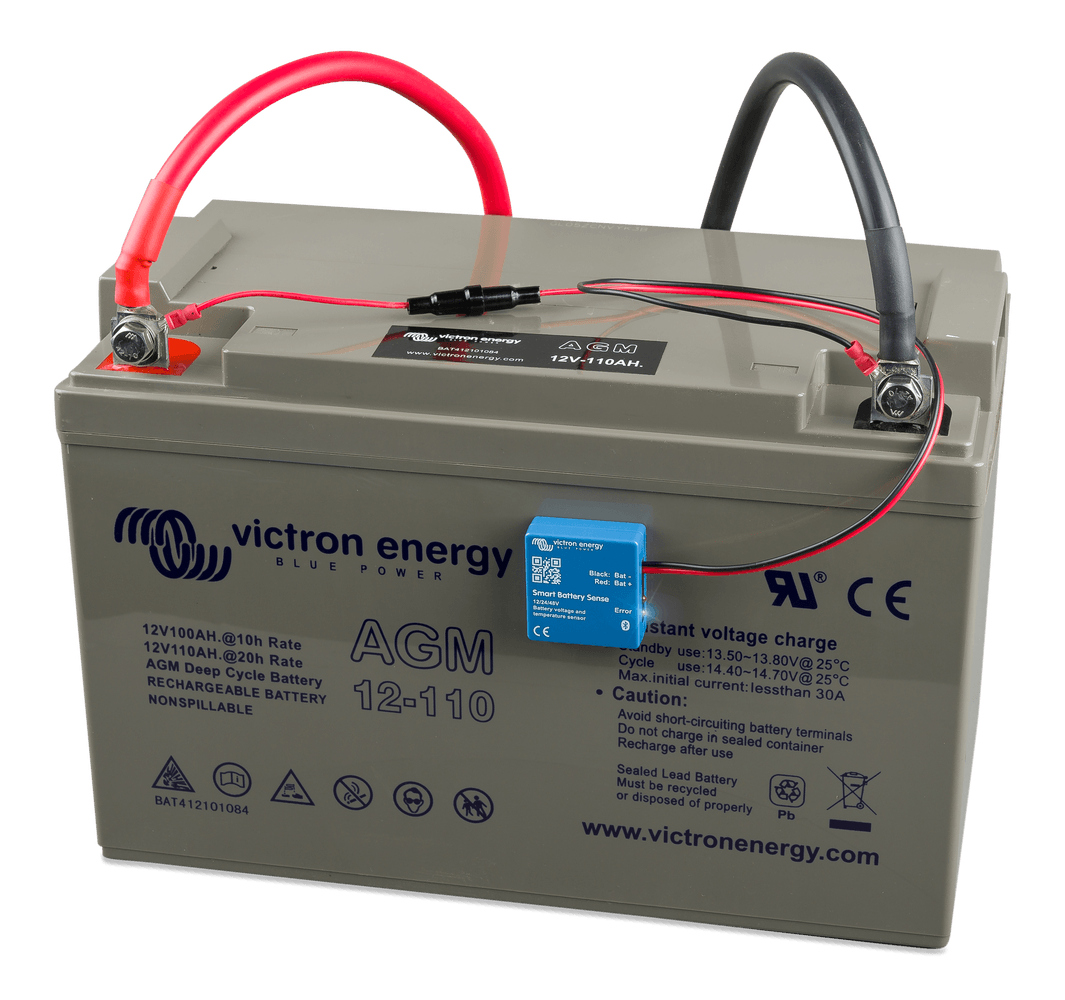

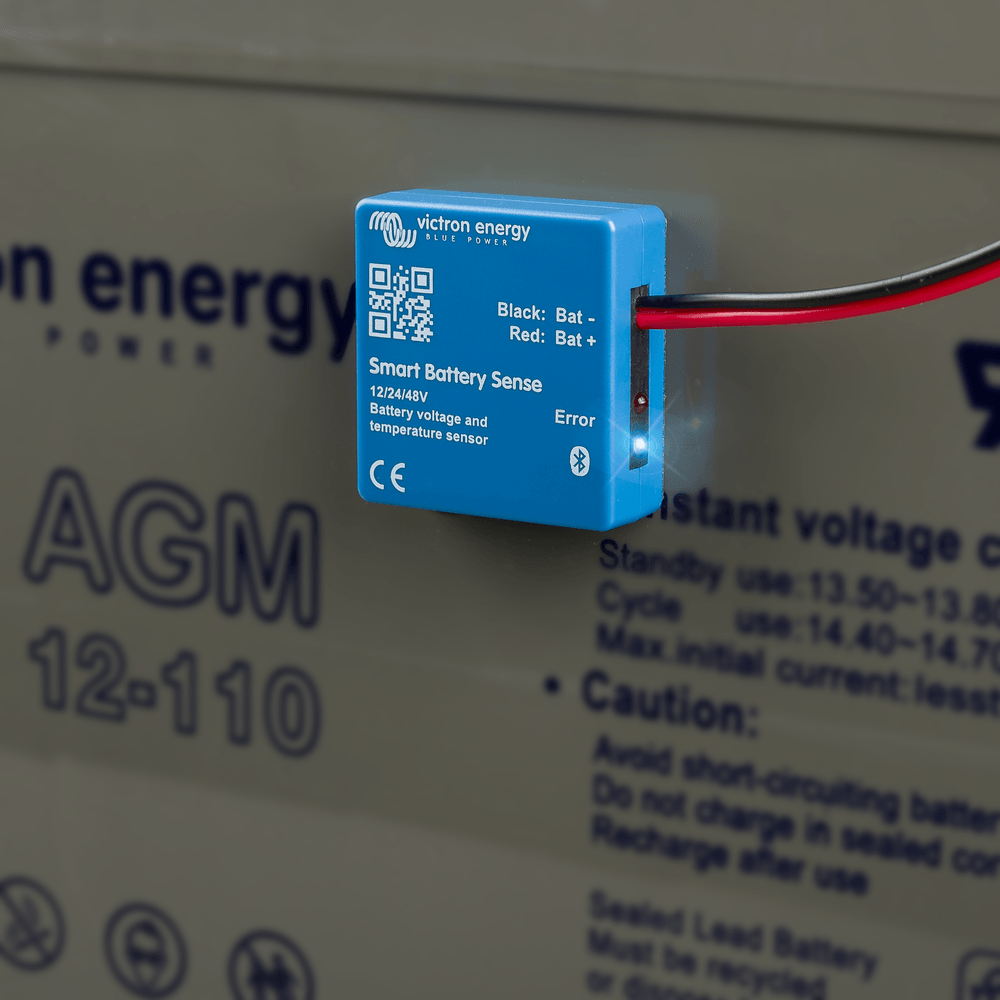

Installation is simple, quick and neat. Simply attach the device's two spade terminals to the battery terminals and mount the Smart Battery Sense device directly onto the battery using its self-adhesive strip.

Delivery time: 1-3 working days

Scope of delivery:

1x Victron Energy SBS050150200 Smart Battery Sense Long Range
1x user manual

data sheet

Generally
item number 8-67-012495
Manufacturer part number SBS050150200
Manufacturer VictronEnergy
ambient temperature -20°C - +60°C
weight 0.041kg
EAN 8719076047919

GPSR Information

Hersteller
Name: Victron Energy BV
Anschrift: The Palm 35
PLZ, Ort: 1351, JG Almere
Land: Netherlands
Email: sales@victronenergy.com
