Victron Smart Battery Protect 48V-100A

Victron EnergySKU: BPR110048000

Price:
Sale price€156,02 EUR Regular price€174,93 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

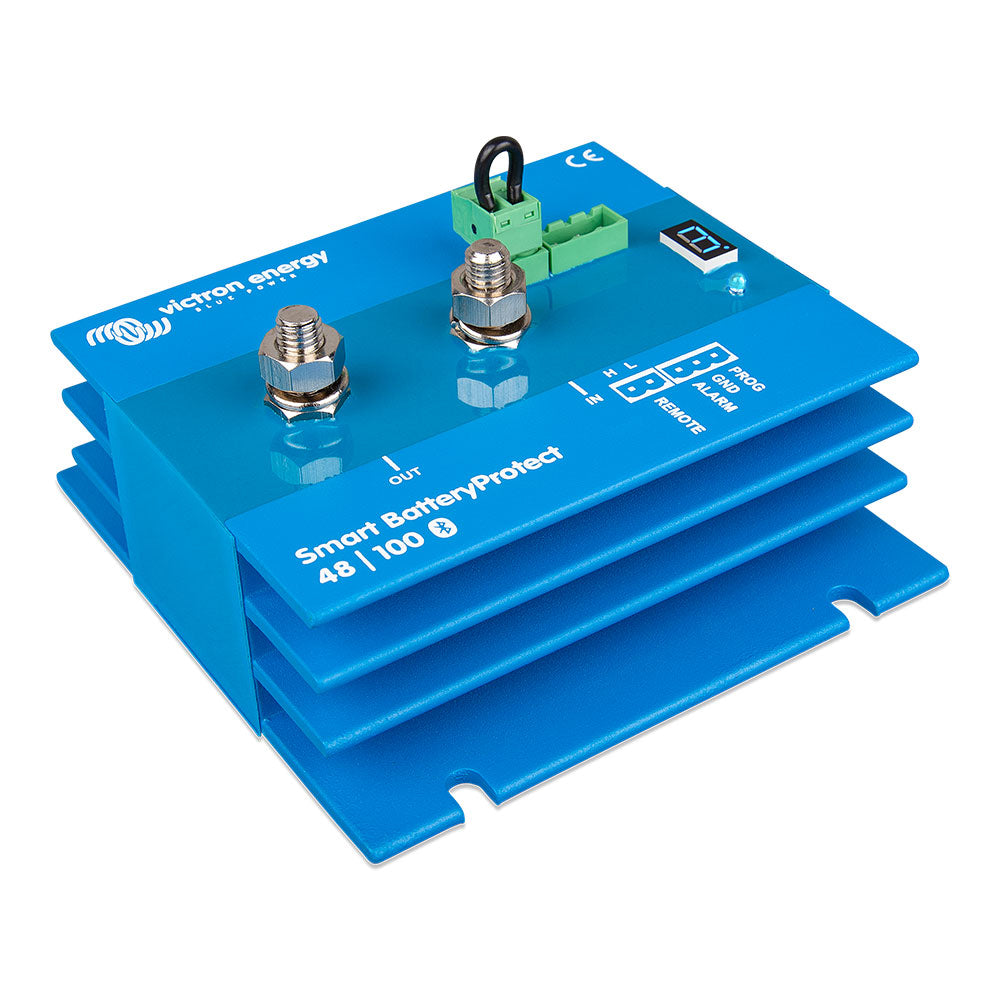

The Smart BatteryProtect 48/100 from Victron Energy (MPN BPR110048000) offers solid battery protection for 48 V batteries of various designs. Compared to the previous series, the Smart version has an integrated Bluetooth module that connects the Smart BatteryProtect (SBP 48/100) to a smartphone or tablet. You can program all required on/off thresholds or set the appropriate value from 9 predefined thresholds.

The BatteryProtect 48/100 can also be used as a charging breaker between the battery charger and a lithium battery. A wide operating voltage range of 24 - 70 V makes the device universally applicable. The ability to connect an external switch or alarm to the BatteryProtect makes the SBP 48/100 Smart the perfect battery monitor.

Features of the Smart BatteryProtect 48/100

  • 100 A maximum switching capacity
  • For 48 V batteries with automatic detection of the battery bank voltage range
  • Explosion protection provided by integrated MOSFET switches that replace the relays, reducing the risk of sparking to zero
  • integrated Bluetooth module, optionally switchable
  • Freely programmable switch-on and switch-off thresholds, easily and wirelessly via the VictronConnect app
  • alternative programming and status display of the settings possible via a seven-segment display
  • integrated alarm output, 9 predefined threshold values ​​selectable
  • An external alarm, an LED or a relay can be connected to the alarm output
  • The load shedding of the BP can be controlled via relays by external events that cannot be programmed in this way

Delayed alarm output

The alarm output is then activated when the battery voltage falls below the preset cut-off value for more than 12 seconds. Turning on the engine will therefore not activate the alarm. The alarm output is a short circuit protected open collector output connected to the negative (minus) rail. Max current 50mA. The alarm output is normally used to activate an audible signal, LED or relay.

Solid battery protection for every battery type

Thanks to its wide range of configuration options, the Smart SBP 48/100 is the perfect protective device for your battery and thus ensures maximum service life, because most voltage converters or charge controllers have undervoltage protection, but this only takes effect at fairly low values. The higher this switch-off threshold is, the longer you will be able to enjoy your batteries, which are usually quite expensive.

Selection of the switch-off threshold

Depending on the battery type, there are different minimum battery voltages that must be observed in order not to damage the battery. For AGM/Gel batteries we recommend setting the Batteryprotect to a switch-off threshold of 11.5V. For lithium batteries (LifePo4), a switch-off threshold of 12.0V is recommended. Depending on the intended use of the battery, it may be necessary to change these limits. The manufacturers also give different information about their batteries. Therefore, always ask the battery manufacturer which switch-off threshold is the right one for your battery!

Scope of delivery:

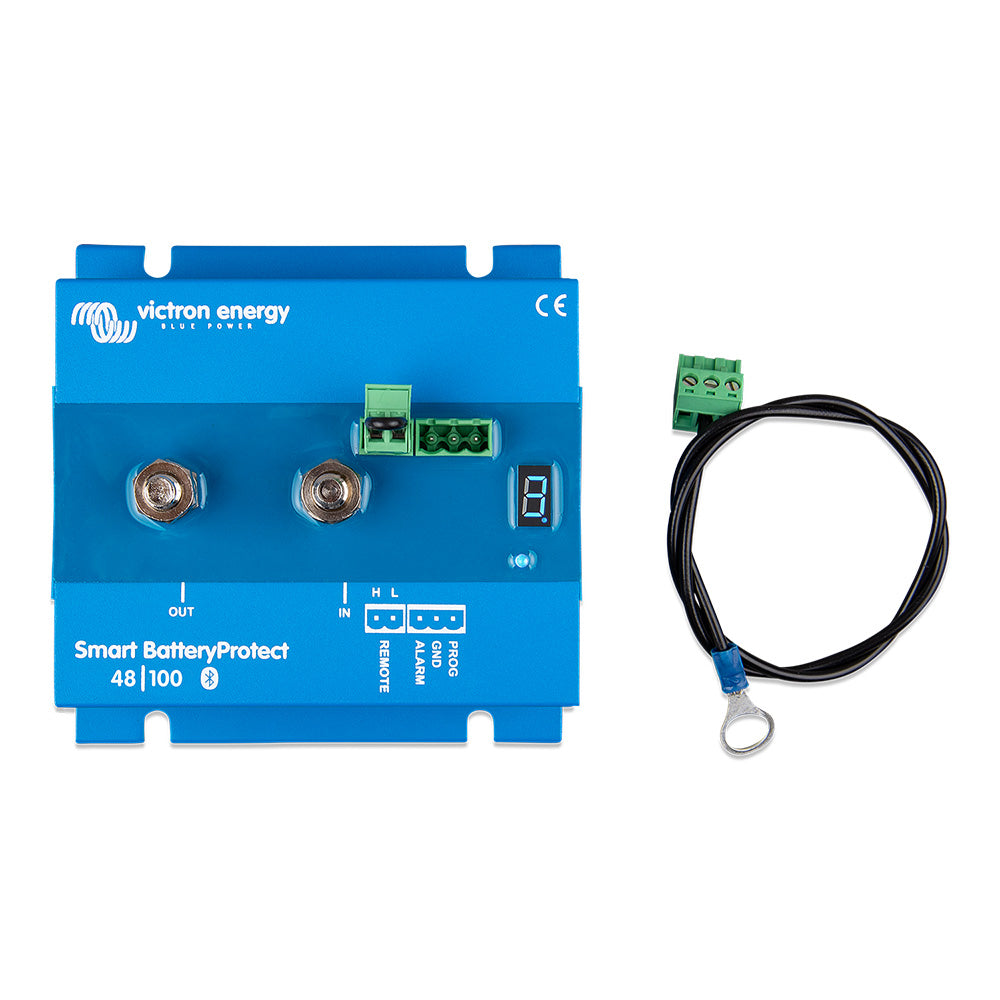

1x Victron Energy BPR110048000 Smart BatteryProtect SBP 48/100 100A

1x user manual

data sheet

ambient temperature

-40°C - +40°C

Dimensions (LxWxH)

12.3x12x6.2cm

Manufacturer part number

BPR110048000

guarantee

2 years

humidity

95% max, non-condensing

Manufacturer

VictronEnergy

weight

0.8kg

GPSR Information

Hersteller
Name: Victron Energy BV
Anschrift: The Palm 35
PLZ, Ort: 1351, JG Almere
Land: Netherlands
Email: sales@victronenergy.com
Web: https://www.victronenergy.com
