Victron SmartSolar MPPT 100/30 Bluetooth integrated

Victron EnergySKU: SCC110030210

Price:
Sale price€110,09 EUR Regular price€163,03 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

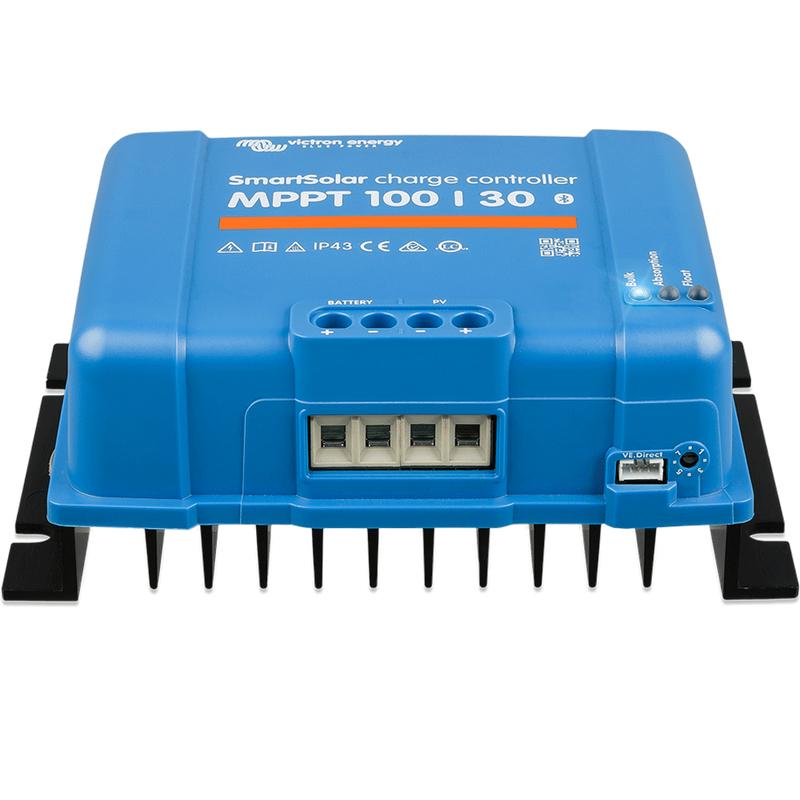

The Victron Energy SmartSolar MPPT 100/30 30A 12V/24V solar charge controller is the new version of the BlueSolar 100/30. The Smart version differs from the Blue version only in its integrated Bluetooth communication module. This allows the SmartSolar charge controller to be fully monitored and analyzed on any app-enabled device. The required Victron Connect app can be installed free of charge.

Product features:
Ultra-fast MPP tracker of the latest generation ensures the best possible yield even under overcast skies
integrated VE.Direct data communication port
high maximum efficiency of 98%
for 12V and 24V systems
integrated Bluetooth module
30A maximum charging current
fully programmable charging algorithms that can later be activated and used manually via a switch on the housing
100V maximum PV open circuit voltage
440W maximum PV power at 12V, 880W at 24V systems
integrated protection against battery polarity reversal
multi-stage and adaptive charging algorithm
Day/night time control and light dimming option
130x186x70
1.3 kg

more protection:
Compared to the 75/10, 75/15 and 100/15 models, the SmartSolar 100/30 MPPT has an overheating protection with a shutdown function and automatic restart after reaching a normal operating temperature.

VE.Direct data communication port
VE.Direct in text mode transmits all important parameters every second to other devices connected to the charge controller, thus enabling communication with additional devices such as the Victron GX Color Control Panel. The VE.Direct connection is intended for products where full CANbus integration (VE-Direct) would be too costly.

Latest generation high-speed MPP tracker
Especially under overcast skies, when light intensity is constantly changing, an extremely fast MPPT controller improves energy yield by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. In addition, the 100/30 features several other innovative technologies, such as the VE.Direct communication port.

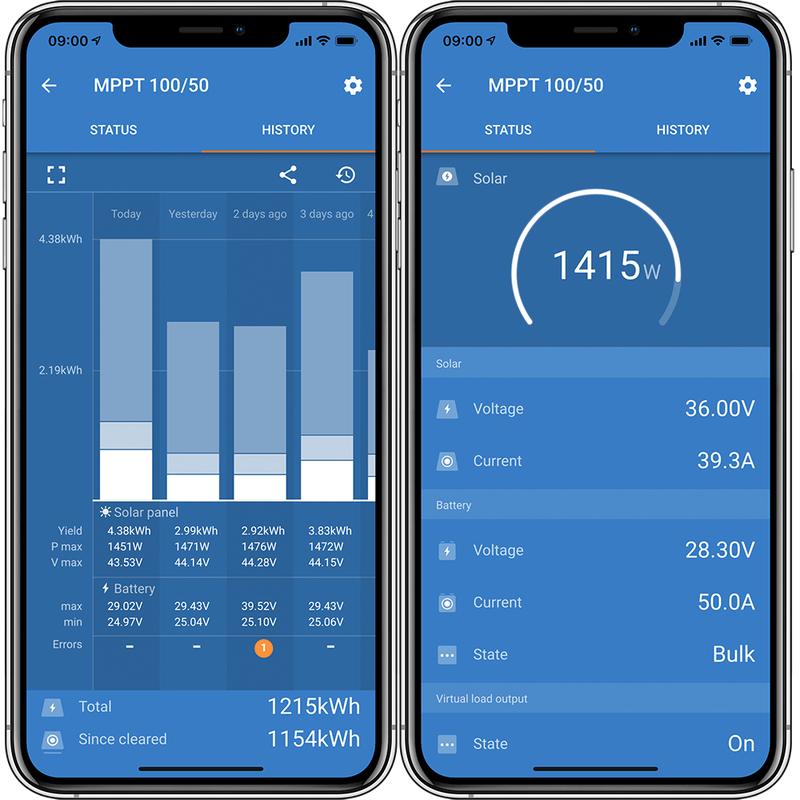

Programming, real-time data and history display
Modern Apple and Android smartphones, tablets, MacBooks, and other devices can be connected via the integrated Bluetooth Smart dongle and the MPPT app or the GX Color Control. Please note that Bluetooth Smart dongles and GX Color Control are separate items that are not included with the charge controller but can be purchased from us as an option.

Flexible charging algorithms
Fully programmable charging algorithm as well as eight pre-programmed algorithms that can be selected via a rotary knob.

Scope of delivery:
1x Victron Energy SCC110030210 SmartSolar MPPT 100/30 30A 12V/24V solar charge controller
1x instruction manual
