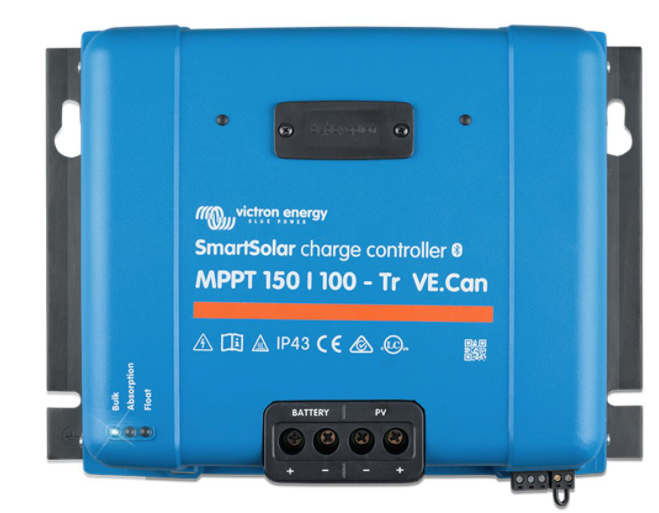

Victron SmartSolar MPPT 150/100-Tr charge controller VE.Can

Victron EnergySKU: SCC115110411

Price:
Sale price€462,91 EUR Regular price€656,88 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

The Smartsolar MPPT 150/100-Tr VE.Can from Victron Energy belongs to the Dutch premium manufacturer's latest generation of smart solar controllers. Ultra-fast power tracking and automatic power point detection in the event of partial shading are just two of the many highlights of this new device class. Devices in the 150/45 to 150/100-Tr VE.Can classes are also available in a version with MC4 connectors on the solar side of the charge controller instead of screw terminals. This model also supports parallel operation with other controllers of the same type.
Compared to the BlueSolar series, the SmartSolar family's Bluetooth module is already integrated into the controller, eliminating the need for a smart dongle. Also new is the optionally available LCD display, which can be easily attached to the SmartSolar as needed. The display then provides all important information about the controller. If required, the MPPT WireBox-XL from Victron Energy is the ideal addition to your SmartSolar charge controller. It securely covers the cable entries and connection terminals of the controller, protecting them from external influences and contact.

key product features
Ultra-fast MPP tracker of the latest generation ensures the best possible yield even under overcast skies
Automatic detection of the MPP voltage in partial shading ensures a further improvement in yield compared to "simple" MPPT charge controllers
with optional LCD display
Integrated Bluetooth module for app-supported analysis and configuration of the controller (via free Victron app on compatible devices)
optional LCD display available
VE-Can, the solution for multiple controllers
Integrated VE.Direct data communication port for connecting to additional devices such as the GX Color Control Panel or a Smart BMV battery monitor
high maximum efficiency of 98%
Parallel operation with other 150/100 controllers possible
Adjustable constant charging voltage
Adjustable trickle charge voltage
Suitable for all AGM, GEL, lead-acid calcium-calcium and lithium batteries
fully programmable charging algorithms that can be manually activated and switched later via a switch on the housing
Max. rated charging current 100A, 150V maximum PV open circuit voltage
Maximum PV power: 12V 1450W / 24V 2900W / 48V 5800W
integrated protection against battery polarity reversal
multi-stage and adaptive charging algorithm
Remote switching on and off via 2-pin plug possible
Protection class IP 43 for the electronic components and protection class IP 22 for the connection area of ​​the controller
Integrated temperature sensor balances float and constant charge voltage according to temperature
Day/night time control and light dimming option
216x295x103
4.5kg

Smart data communication via VE.Direct and Bluetooth module
Modern Apple and Android smartphones, tablets, MacBooks, and other devices can be connected thanks to the integrated Bluetooth module and the free Victron Connect app. The app can then be used to configure many important functions of the SmartSolar controller. Of course, it also provides all important parameters, such as the current solar yield, in real time.

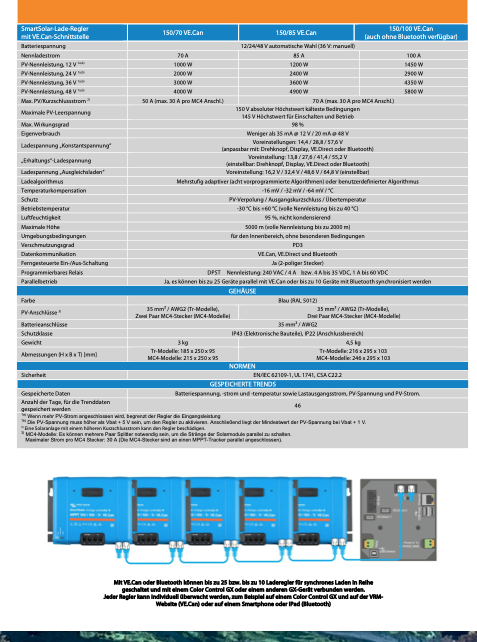

VE.Can: the solution for multiple controllers
Using VE.Can or Bluetooth, up to 25 or up to 10 charge controllers can be connected in series for synchronous charging and connected to a Color Control GX or another GX device.
Each controller can be monitored individually, for example on a Color Control GX and on the VRM website (VE.Can) or on a smartphone or iPad (Bluetooth)

Automatic detection of the maximum power point
In the case of partial shading, two or more maximum power points (MPP) may exist on the current-voltage curve. Conventional MPPTs tend to focus on a local MPP, but this may not be the optimal MPP. The innovative algorithm of the SmartSolar device will always maximize energy yield by focusing on the optimal MPP.

High-speed MPP tracker
Especially under overcast skies, when the light intensity is constantly changing, an extremely fast MPPT controller improves energy yield by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

optionally available LCD display for retrofitting
Those who prefer to operate and configure the Smartsolar MPPT 150/100-Tr directly can upgrade to the Smartsolar Control SCC900600010 display. The display allows for easy configuration of the controller via keypad input and provides all important performance data at a glance.

comprehensive electronic protection
Protection against reversed battery connection
PV backflow preventer
Protection against overheating of the device
Protection against short circuits
Protection against reversed PV connection

VE.Direct data communication port
VE.Direct in text mode transmits all important parameters every second to other devices connected to the charge controller, thus enabling communication with additional devices such as the GX Color Control system panel. The VE.Direct connection is intended for products where full CANbus integration (VE-Direct) would be prohibitively expensive.

Scope of delivery
1x Victron SmartSolar MPPT 150/100-Tr VE.Can 12V 24V 36V 48V 100A charge controller
Operating instructions

GPSR Information

Hersteller
Name: Victron Energy BV
Anschrift: The Palm 35
PLZ, Ort: 1351, JG Almere
Land: Netherlands
Email: sales@victronenergy.com
Web: https://www.victronenergy.com
