Victron SmartSolar MPPT 250/70-MC4

Victron EnergySKU: SCC125070521

Price:
Sale price€403,08 EUR Regular price€648,55 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

The Smartsolar MPPT 250/70-MC4 VE.Can from Victron Energy is part of the Dutch premium manufacturer's latest generation of smart charge controllers. The controller handles a whopping 70A of solar power and can be flexibly operated with 12/24/36/48V batteries. Ultra-fast power tracking and automatic power point detection in the event of partial shading are just two of the many highlights of this new device class. VE.Can is particularly suitable for systems with multiple solar chargers; it can synchronize up to 25 controllers.

Compared to the BlueSolar series, the Bluetooth module in the SmartSolar family is already integrated into the controller, making the smart dongle obsolete. Also new is the optionally available LCD display, which can be easily plugged onto the SmartSolar 250/70-Tr VE.Can as needed. The display then provides all important information about the controller. If required, the MPPT WireBox-L Tr from Victron Energy is the ideal addition to your SmartSolar charge controller. It securely covers the cable entries and connection terminals of the controller, thus protecting them from external influences and contact.

special product features
ultra-fast MPP tracker
Automatic detection of the MPP voltage in case of partial shading
permanently integrated Bluetooth module
optional LCD display available
VE-Can, the solution for multiple controllers
integrated VE.Direct & VE.Can data communication port for connection
Parallel operation with other VE.Can controllers possible
Adjustable constant charging voltage
Adjustable trickle charge voltage
Suitable for all AGM, GEL, lead-acid calcium-calcium and lithium batteries
fully programmable charging algorithms
integrated protection against battery polarity reversal
multi-stage and adaptive charging algorithm
Remote switching on and off via 2-pin plug possible
integrated temperature sensor
Programmable relay

Data communication via VE.Direct and Bluetooth module
Modern Apple and Android smartphones, tablets, MacBooks, and other devices can be connected thanks to the integrated Bluetooth module and the free Victron Connect app. The app can then be used to configure many important functions of the SmartSolar controller. Of course, it also provides all important parameters, such as the current solar yield, in real time.

VE.Can: the solution for multiple controllers
Using VE.Can or Bluetooth, up to 25 or up to 10 charge controllers can be connected in series for synchronous charging and connected to a Color Control GX or another GX device.
Each controller can be monitored individually, for example on a Color Control GX and on the VRM website (VE.Can) or on a smartphone or iPad (Bluetooth)

Automatic detection of the maximum power point in case of partial shading
In the case of partial shading, two or more maximum power points (MPP) may exist on the current-voltage curve. Conventional MPPTs tend to focus on a local MPP, but this may not be the optimal MPP. The innovative algorithm of the SmartSolar device will always maximize energy yield by focusing on the optimal MPP.

High-speed MPP tracker
Especially under overcast skies, when the light intensity is constantly changing, an extremely fast MPPT controller improves energy yield by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

comprehensive electronic protection
Protection against reversed battery connection
PV backflow preventer
Protection against overheating of the device
Protection against short circuits
Protection against reversed PV connection

VE.Direct data communication port
VE.Direct in text mode transmits all important parameters every second to other devices connected to the charge controller, thus enabling communication with additional devices such as the GX Color Control system panel. The VE.Direct connection is intended for products where full CANbus integration (VE-Direct) would be prohibitively expensive.

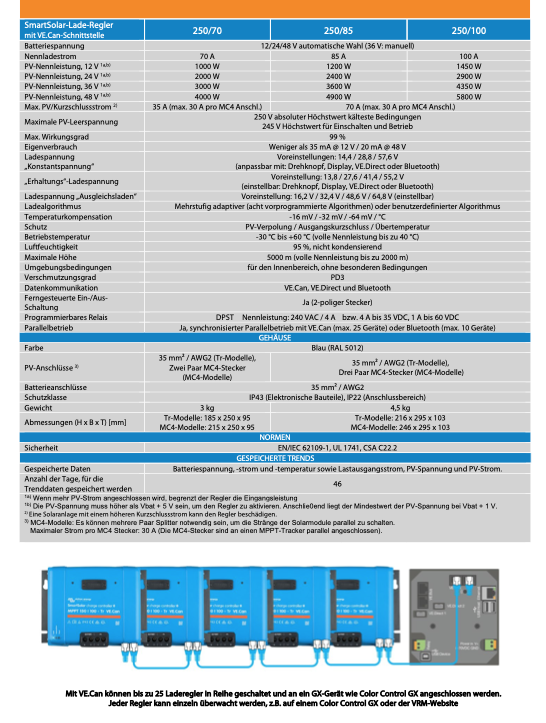

Technical data
Nominal charging current 70A
Maximum PV open circuit voltage: 250V
high maximum efficiency of 99%
Maximum PV power: 12V 1000W / 24V 2000W / 48V 4000W
Protection class IP 43 (electronic components) and protection class IP 22 (connection area)
Weight: 3kg
Dimensions: 185 x 250 x 95 mm

Scope of delivery
1x Victron SCC125070421 SmartSolar MPPT 250/70-Tr 12V 24V 36V 48V 70A charge controller
1x instruction manual
