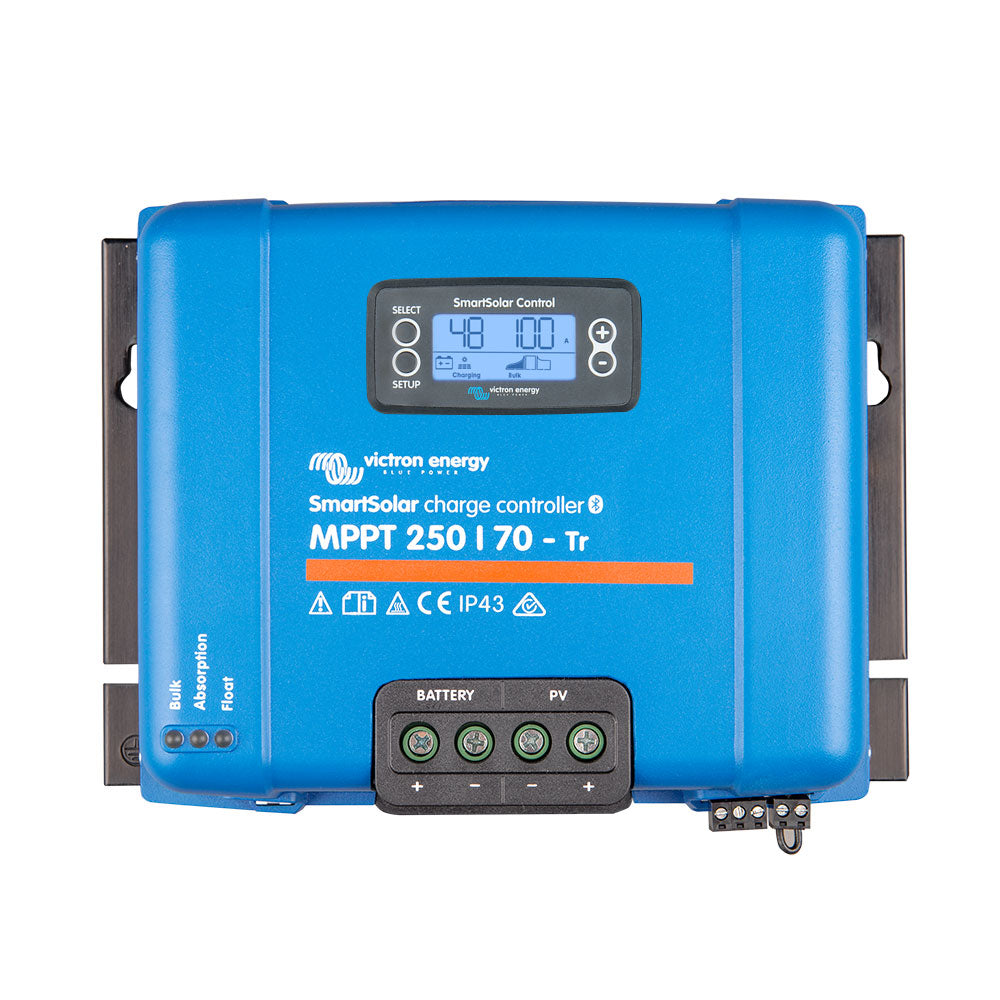

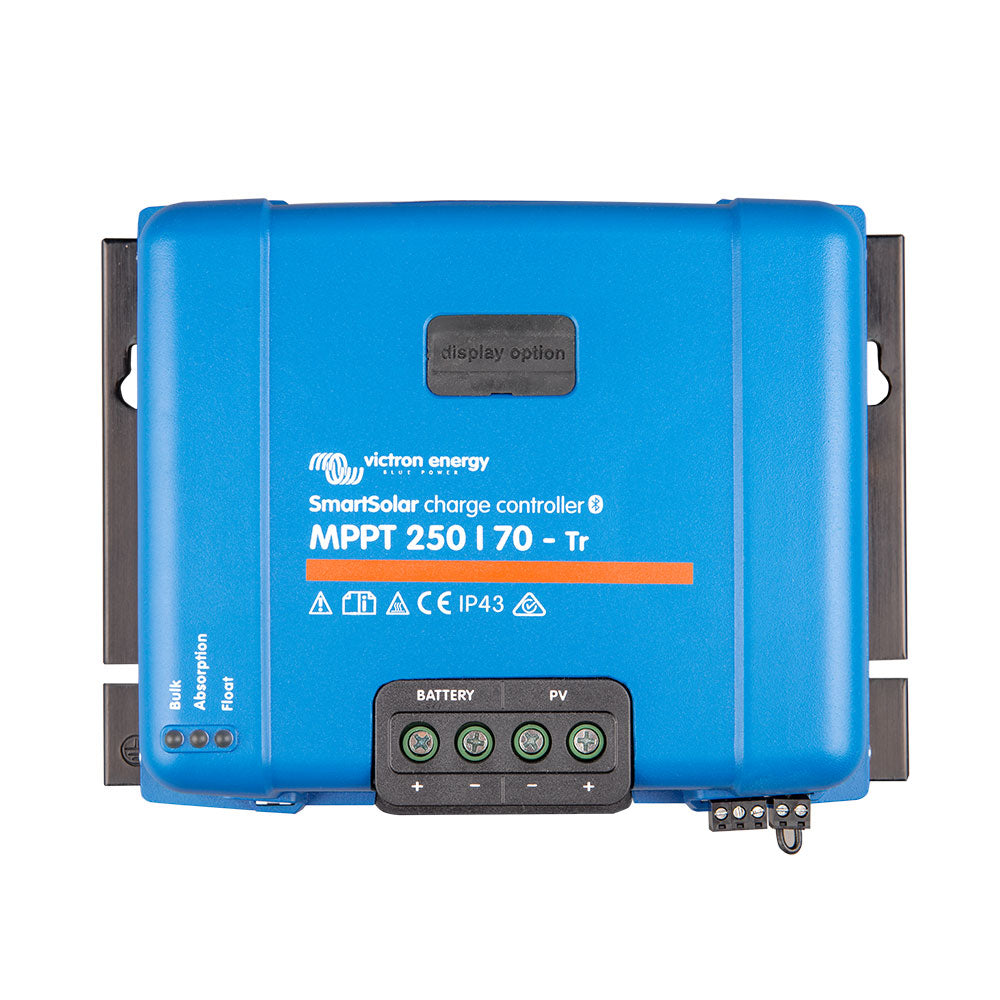

Victron SmartSolar MPPT 250/70-Tr

Victron EnergySKU: SCC125070221

Price:
Sale price€427,21 EUR Regular price€608,09 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

The Smartsolar MPPT 250/70-Tr from Victron Energy belongs to the latest generation of smart solar controllers from the Dutch premium manufacturer. The controller handles 70 A of solar power and can operate flexibly with 12/24/36/48 V batteries, with a maximum PV input voltage of 250 V DC. Ultrafast power tracking and automatic power point detection in the event of partial shading are just two of the many highlights of this new device class. This model also supports parallel operation with other controllers of the same type.

Compared to the SmartSolar 150 series, the 250 series can handle a maximum PV input voltage of 250V. This is also one of the reasons why the 250 solar controller family was able to increase its efficiency by a further 1 percent to a total of 99%, thus setting new standards across the industry. This value is currently the best of all solar charge controllers known to us. Unlike the BlueSolar family, the Bluetooth module in the 250 Smartsolar series is already permanently integrated into the controller, making the smart dongle unnecessary if you want to analyze and configure the controller via Bluetooth using a smartphone or tablet. Also new is the optionally available LCD display, which can be easily plugged onto the SmartSolar 250/70-tr as required. The display then provides all the important information about the controller. If required, the MPPT WireBox-L Tr from Victron Energy is the ideal addition to your SmartSolar charge controller. It safely covers the cable entries and the connection terminals of the controller and thus protects them from external influences and contact.

key product features
Max. PV power: 12V 1000W / 24V 2000W / 48V 4000W
Max. rated charging current 70A, 250V maximum PV open circuit voltage
Ultra-fast MPP tracker of the latest generation ensures the best possible yield even under overcast skies
Automatic detection of the MPP voltage in partial shading ensures a further improvement in yield compared to "simple" MPPT charge controllers
Integrated Bluetooth module for app-supported analysis and configuration of the controller (via free Victron app on compatible devices)
optionally also available as a version with MC4 connectors
optional LCD display available
Integrated VE.Direct data communication port for connecting to additional devices such as the GX Color Control Panel or a Smart BMV battery monitor
groundbreaking efficiency 99%
Parallel operation with other 250/85 controllers possible
adjustable constant charging voltage
adjustable trickle charge voltage
suitable for all AGM, GEL, lead-acid calcium-calcium and lithium batteries
fully programmable charging algorithms that can be manually activated and switched later via a switch on the housing
integrated protection against battery polarity reversal
multi-stage and adaptive charging algorithm
Remote switching on and off via 2-pin plug possible
Protection class IP 43 for the electronic components and protection class IP 22 for the connection area of ​​the controller
Integrated temperature sensor balances float and constant charge voltage according to temperature
Day/night time control and light dimming options
200x250x95
3kg

Configuration and analysis via Victron Connect App
Modern Apple and Android smartphones, tablets, MacBooks, and other devices can be connected thanks to the integrated Bluetooth module and the free Victron Connect app. The app can then be used to configure many important functions of the SmartSolar controller. Of course, it also provides all important parameters, such as the current solar yield, in real time.

Automatic detection of the maximum power point in case of partial shading
In the case of partial shading, two or more maximum power points (MPP) may exist on the current-voltage curve. Conventional MPPTs tend to focus on a local MPP, but this may not be the optimal MPP. The innovative algorithm of the SmartSolar controller will always maximize energy yield by focusing on the optimal MPP.

High-speed MPP tracker
Especially under overcast skies, when the light intensity is constantly changing, an extremely fast MPPT controller improves energy yield by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

optionally available LCD display for retrofitting
Those who prefer to operate and configure the Smartsolar MPPT 250/70-Tr directly can retrofit the Smartsolar Control SCC900600010 display. The display allows for easy configuration of the controller via keypad input and provides all important performance data at a glance.

comprehensive electronic protection
Protection against reversed battery connection
PV backflow preventer
Protection against overheating of the device
Protection against short circuits
Protection against reversed PV connection

VE.Direct data communication port

VE.Direct in text mode transmits all important parameters every second to other devices connected to the charge controller, thus enabling communication with additional devices such as the GX Color Control system panel. The VE.Direct connection is intended for products where full CANbus integration (VE-Direct) would be prohibitively expensive.

Scope of delivery
1x Victron SmartSolar MPPT 250/70-tr 12V 24V 48V 70A charge controller
1x instruction manual
