Victron SmartSolar MPPT 75/10 10A 12V 24V solar charge controller

Victron EnergySKU: SCC075010060R

Price:
Sale price€57,90 EUR Regular price€78,54 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

The Smartsolar 75/10 from Victron Energy with integrated Bluetooth is an MPPT solar charge controller with a maximum charging current of 10A for charging 12V and 24V batteries. A VE.Direct connection is also available for communication with other Victron devices such as the Color Control GX or the MPPT Control.

The integrated Bluetooth in the SmartSolar series is the wireless solution for setting up, monitoring and updating the controller using Apple and Android smartphones, tablets or other devices.

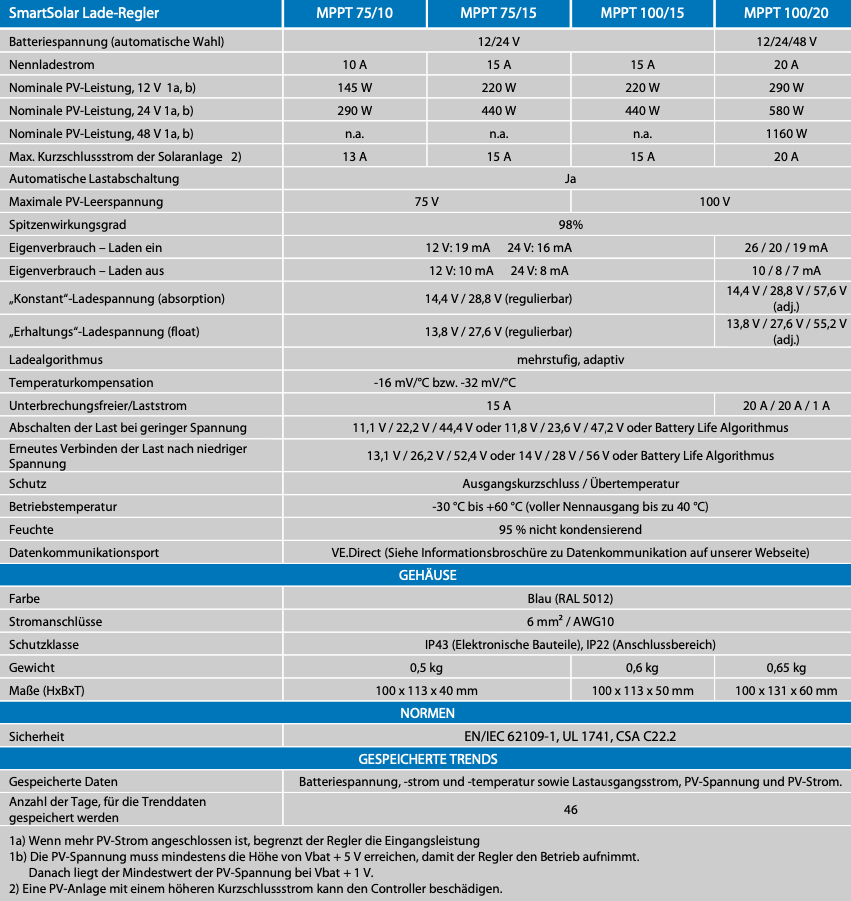

Technical features
- 10A max. charging current, suitable for 12V and 24V batteries
- Nominal PV power for 12V systems: 145W
- Nominal PV power for 24V systems: 290W
- 10A load output
- high peak efficiency of 98%
- Freely programmable battery charging algorithm (via the free Victron Connect APP)
- Light dimming functions programmable (via the free Victron Connect APP)
- Ultra-fast maximum power point tracking
- max. PV open circuit voltage: 75V
- Charging algorithm: multi-stage, adaptive
- integrated Bluetooth module
- 100x113x40

Maximum Power Point Tracking
Especially under overcast skies, when the light intensity is constantly changing, an extremely fast MPPT controller improves energy yield by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Intelligent load output
Deep battery discharge can be prevented by connecting all loads to the load output. The load output disconnects the loads when the battery has been discharged to a specified voltage. Alternatively, an algorithm for intelligent battery management can be selected: see BatteryLife.
The load output is short-circuit proof.

Battery Life : intelligent battery management
If the solar charge controller is unable to charge the battery to its full capacity within a day, the battery's status will constantly cycle between "partially charged" and "end of discharge." This operating mode (without regular full charging) will damage a lead-acid battery within a few weeks or months.
The Battery Life algorithm monitors the battery's state of charge and, if necessary, raises the load disconnect threshold daily (i.e., disconnects the load earlier) until the harvested energy is sufficient to charge the battery to nearly 100%. From this point, the load disconnect threshold is modulated so that near-100% charging is achieved approximately once a week.

Scope of delivery
1x Victron Energy SCC075010060R Smartsolar MPPT 75/10 10A 12V 24V solar charge controller
1x instruction manual
