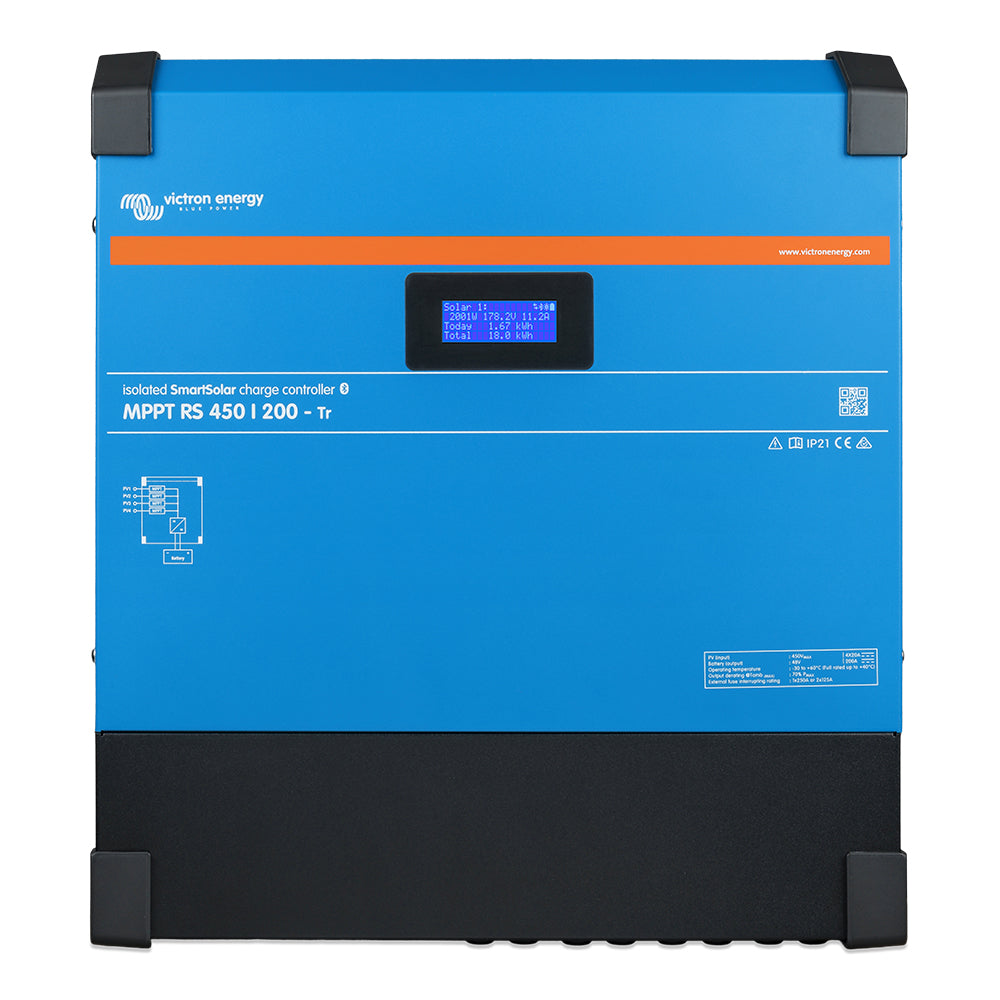

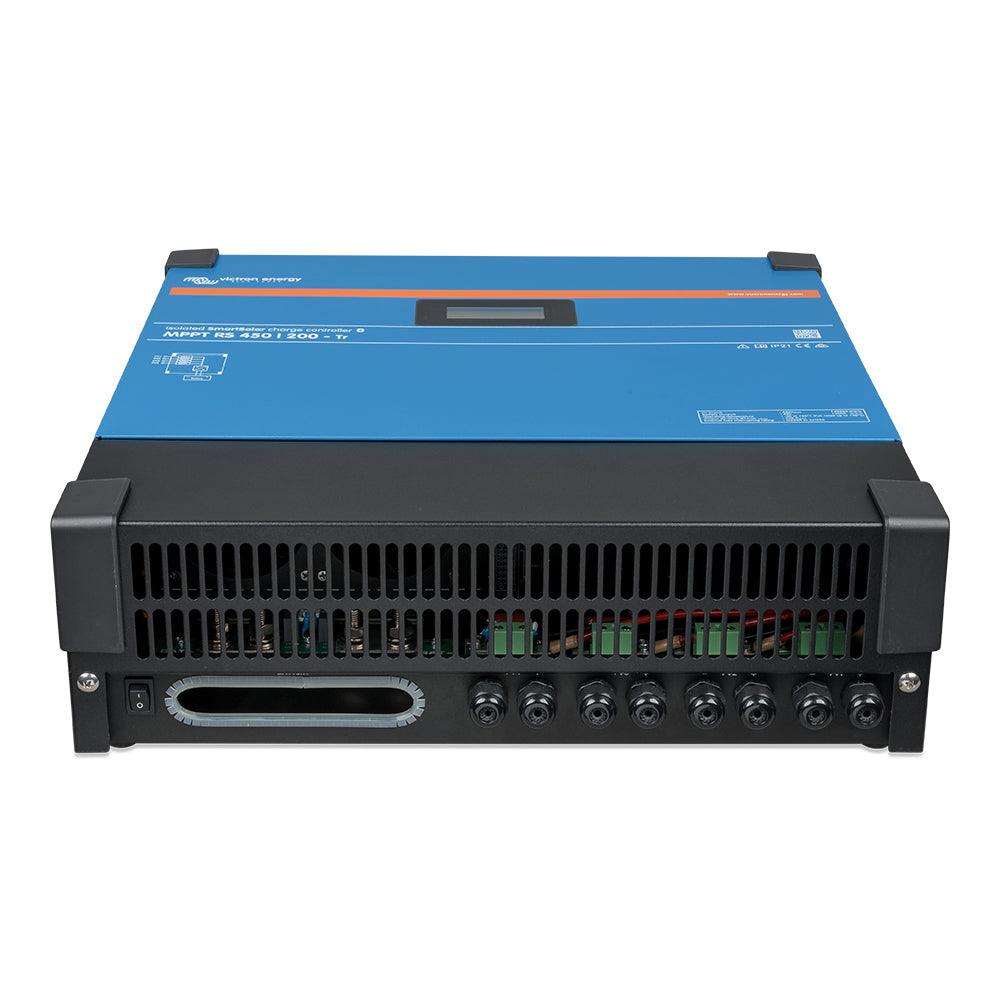

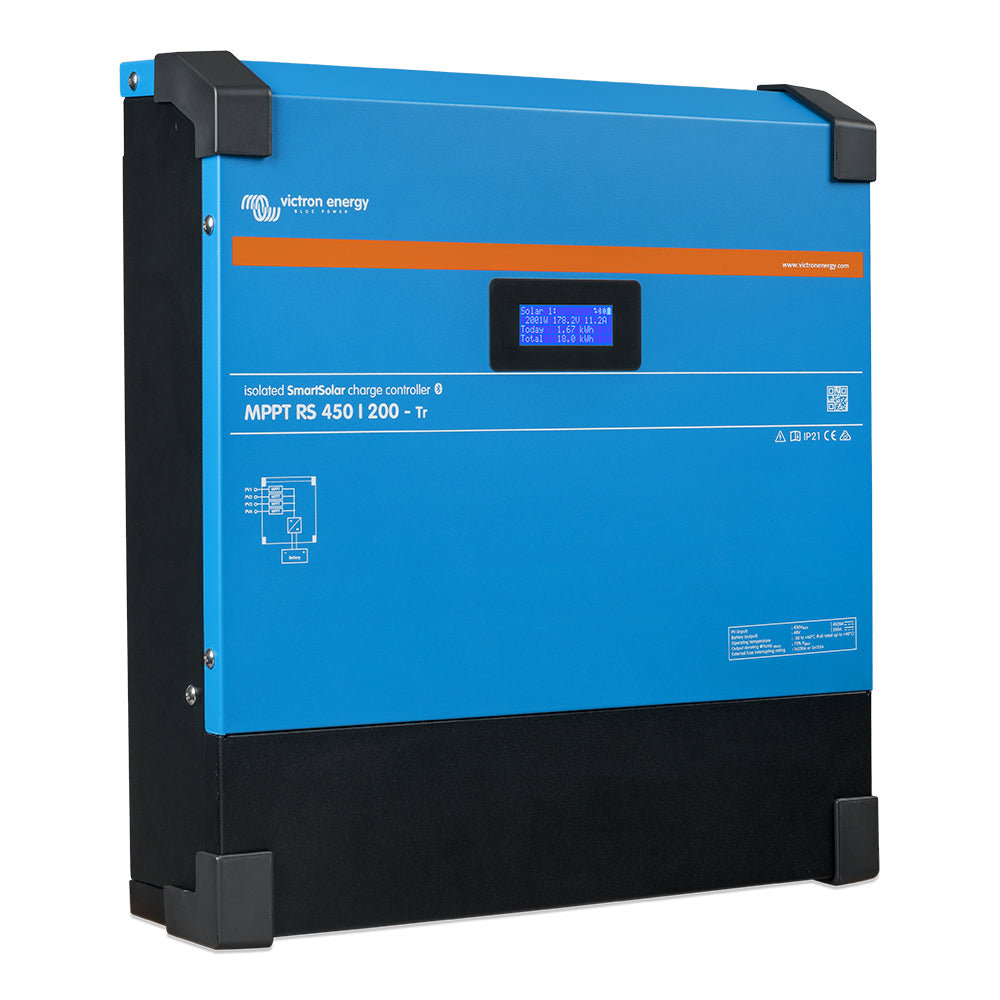

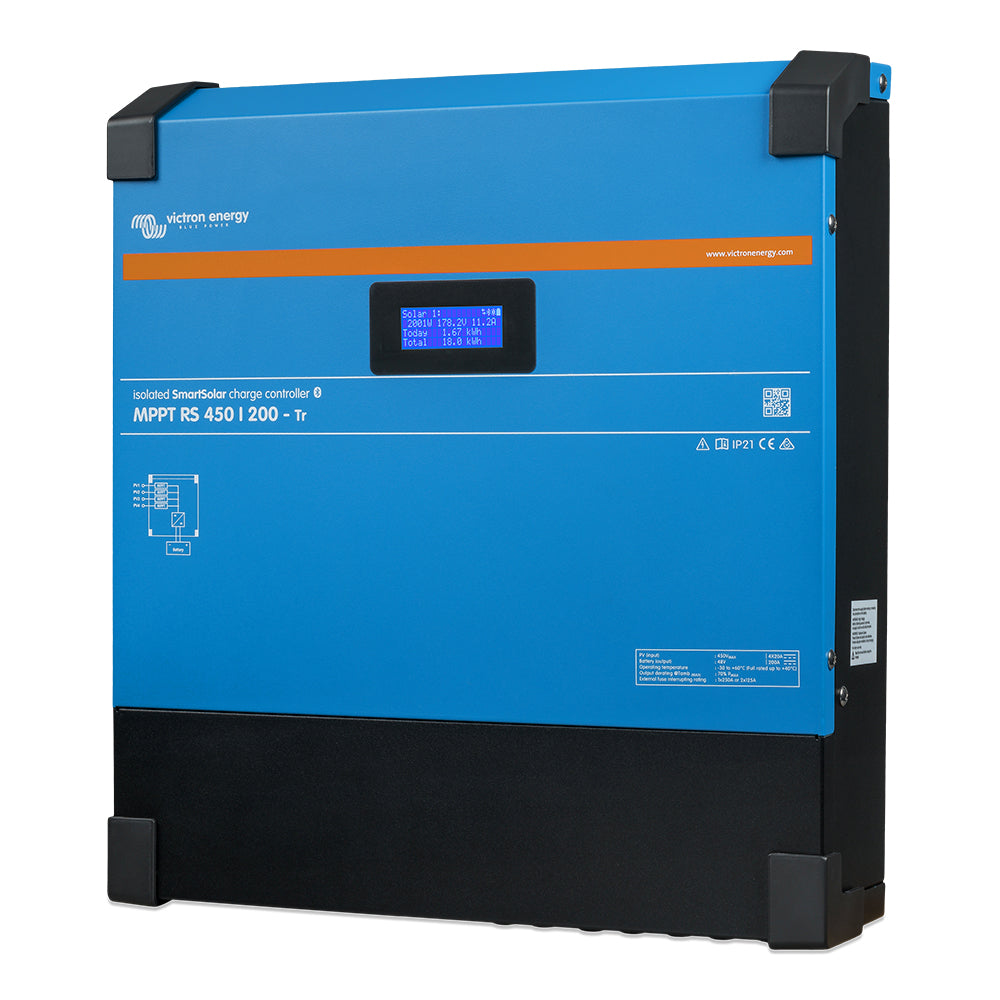

Victron SmartSolar MPPT RS 450/200 MC4 48V charge controller

Victron EnergySKU: SCC145120510

Price:
Sale price€1.520,82 EUR Regular price€2.462,11 EUR

Tax included Shipping calculated at checkout

Shipping April 2025

Description

The MPPT RS SmartSolar from Victron Energy is a 48V solar charge controller with a PV input voltage of up to 450VDC and an output current of 200A. It is used in on-grid and off-grid solar applications where maximum battery charging power is required.

Characteristics

  • With ultra-fast Maximum Power Point Tracking (MPPT)
  • Multiple independent MPPT tracking inputs
  • Isolated PV connections for additional safety
  • Wide MPPT voltage range
  • Light, efficient and quiet
  • Integrated display and Bluetooth communication
  • PV insulation resistance monitoring for safety at higher voltages
  • VE.Can and VE.Direct connection

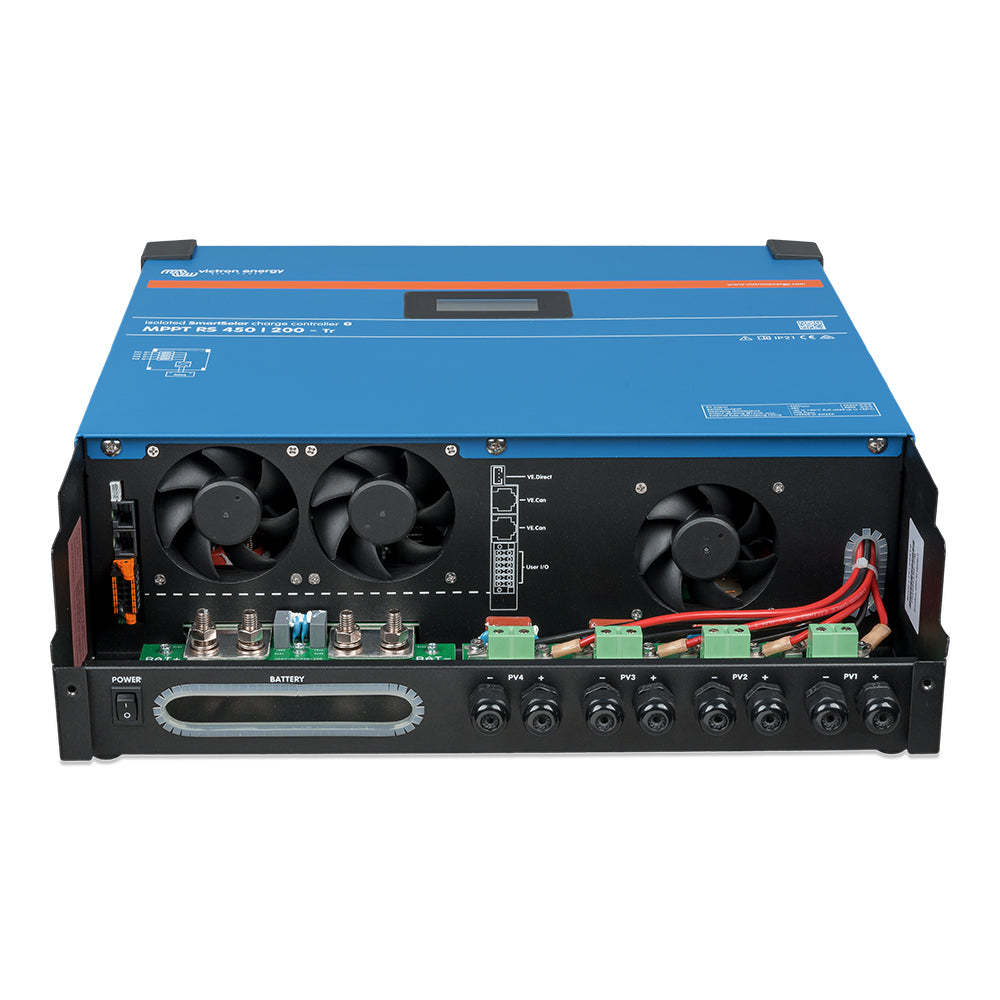

  • I/O connections

Configure and monitor with VictronConnect app or VRM portal

The integrated Bluetooth Smart connection allows for quick monitoring or configuration of settings via the app. The integrated 30-day history shows the individual performance of each MPPT tracker. The app allows for display of information such as battery voltage and current, PV voltage and current, historical data, and trends. The VictronConnect app is available for Android, iOS, Windows, and macOS X.
When the solar controller is connected to a GX device and the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your SmartSolar RS charge controllers.

Additional units connected in series

The SmartSolar RS charge controller is equipped with VE.Can bus ports. This enables communication with additional SmartSolar RS & VE.Can MPPT units. The additional units are simply "daisy-chained" together using an RJ45 cable. When connected, all individual charge controllers synchronize their charging levels. You can also send your data to a GX device (such as the CerboGX) for monitoring via the same cable.

Technical data

  • Battery voltage: 48V
  • Nominal charging current: 200A
  • Max. charging power: 11.5 kW at 57.6 V
  • Charging algorithm: multi-stage adaptive (adjustable)
  • Max. DC PV voltage: 450V
  • MPPT operating voltage range: 80-450V
  • Number of trackers: 4
  • Max. PV operating input current: 18A per tracker
  • Protection class: IP21
  • Dimensions: 487 x 434 x 146 mm
  • Weight: 13.7 kg

Scope of delivery:

1x Victron SmartSolar MPPT RS 450/200-RT 48V charge controller

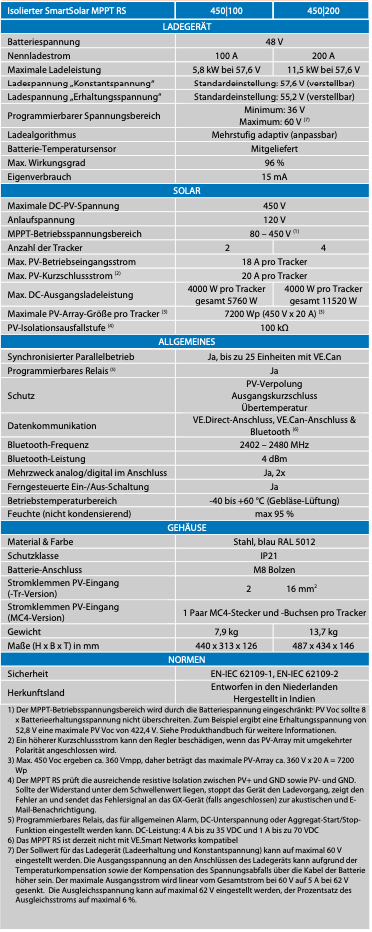

Data sheet

System voltage

48V

Dimensions (LxWxH)

487 x 434 x 146 mm

EAN

8719076051886

Manufacturer part number

SCC145120410

solar module voltage max 153

450 V

max. charging current

200A

Weight

13.7 kg

Protection class IP

IP21

solar module power max 154

18A

Manufacturer

Victron Energy

GPSR Information

Hersteller
Name: Victron Energy BV
Anschrift: The Palm 35
PLZ, Ort: 1351, JG Almere
Land: Netherlands
Email: sales@victronenergy.com
Web: https://www.victronenergy.com
