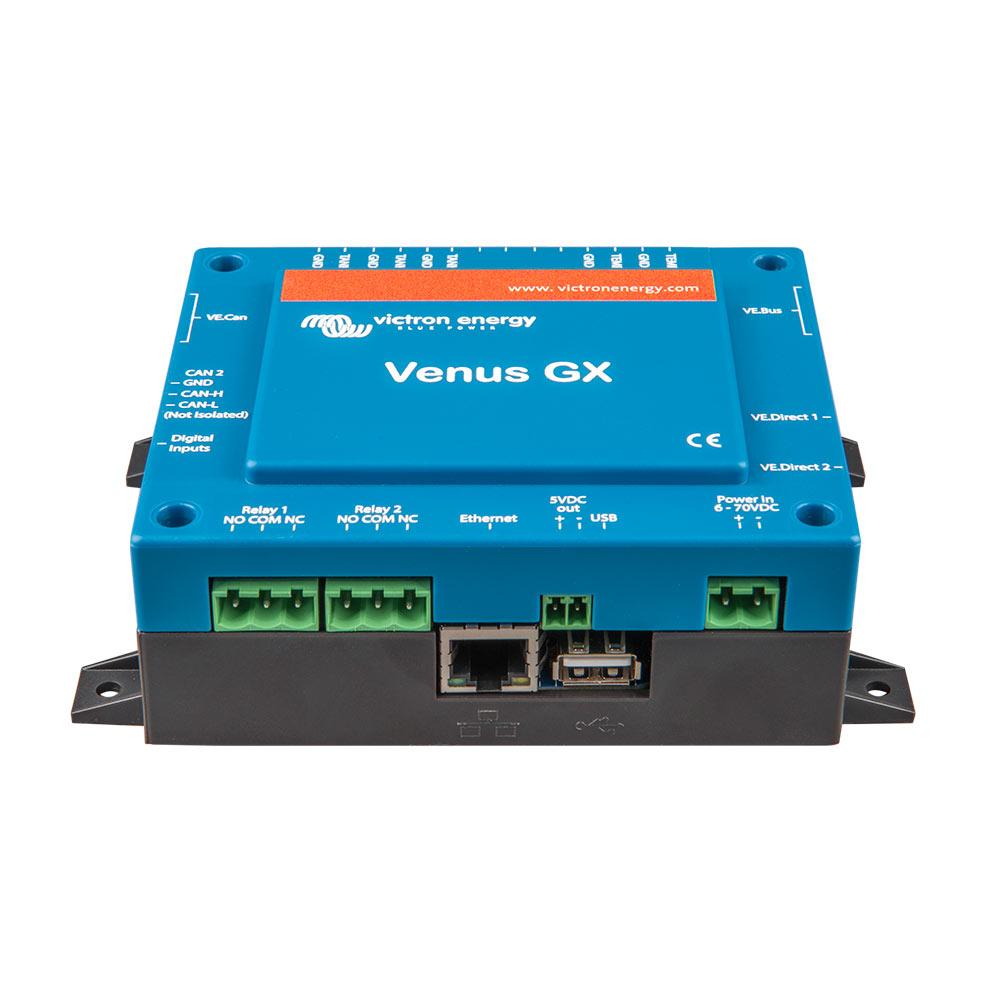

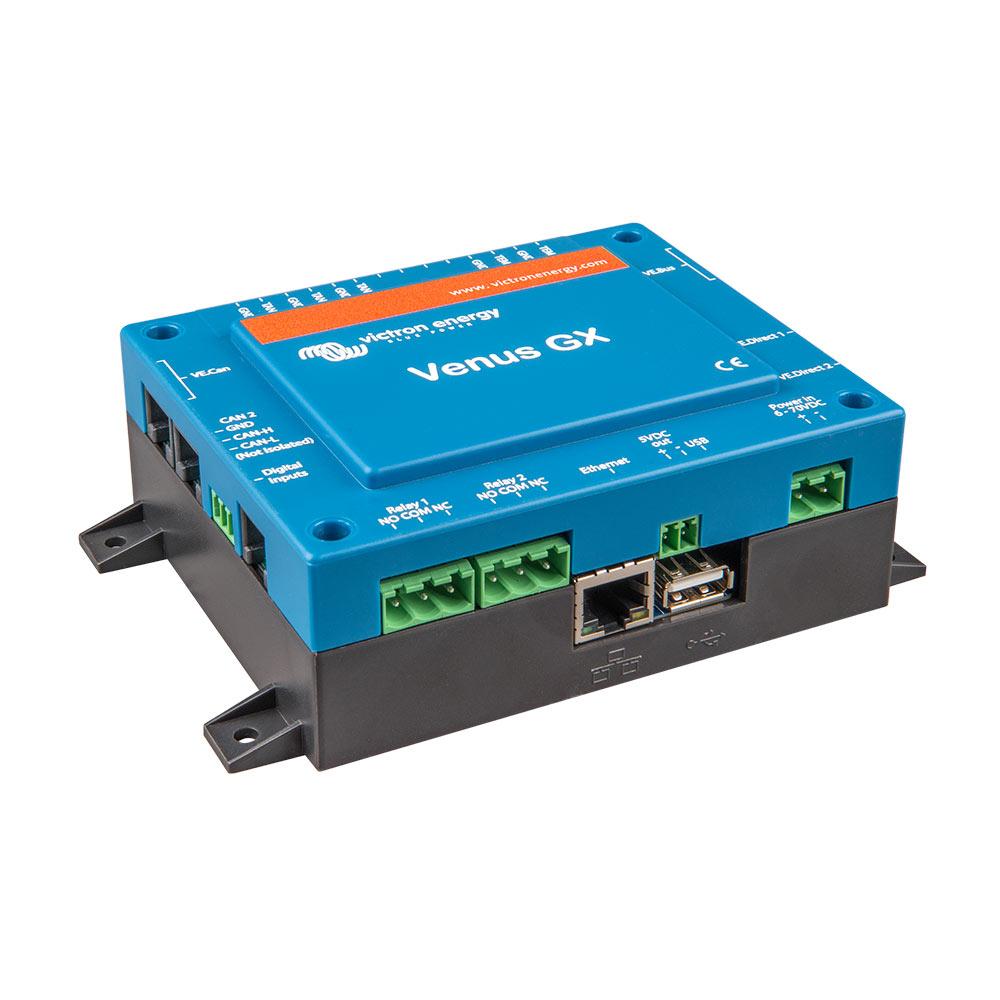

Victron Venus GX System Monitor BPP900400100

Victron EnergySKU: BPP900400100

Price:
Sale price€166,48 EUR Regular price€226,10 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

The Victron Energy Venus GX system control module offers intuitive operation and monitoring of all power systems based on Victron components.

It is particularly suitable as the heart of an ESS (Energy Storage System).

In terms of functionality, the Venus GX is similar to Victron's Color Control GX, but without a display and built-in modem, but considerably less expensive. It transmits all system data to Victron's free VRM portal, from where you can monitor and manage your power system worldwide.

In addition to the power electronics, tank levels of up to three tanks can also be monitored and visualized in the VRM portal. In addition to remote monitoring of the connected devices, remote configuration is also possible.

Remote Console on the VRM

Setup and monitoring are performed via the remote console, either via the VRM, the built-in Wi-Fi access point, or the local LAN/WiFi network.

Automatic generator start/stop

An extremely flexible start/stop system. Using charging, voltage, load, and other parameters. Specific settings for rest periods and optional monthly test runs can be configured.

Internet connection

The Venus GX can be connected to the Internet via an Ethernet cable and Wi-Fi. The Venus GX does not have an internal cellular modem: There is no slot for a SIM card. Instead, use a standard GPRS or 3G router.

Tank level indicator inputs

The inputs for the tank level indicator are resistive: Connect them to a resistive tank sender. Victron does not offer such tank sender. The tank level indicator ports can be configured to work with European tank sender (0-180 ohms) or US tank sender (240-30 ohms).

Data recording

If the system is connected to the internet, all data is sent to the VRM portal. If an internet connection is unavailable, the Venus GX stores the data internally for up to 48 hours. Even more data can be stored by inserting a micro SD card or USB stick. These files can be uploaded to the VRM portal or converted for analysis offline using the VictronConnect app.

further highlights

  • The Venus GX can automatically update itself over the Internet when a new software version is available.
  • Multiple languages: English, Czech, German, Spanish, French, Italian, Dutch, Russian, Swedish, Turkish, Chinese, Arabic.
  • Use the Venus GX as a Modbus-TCP gateway to all connected Victron products.
  • Linux OS based operating system

supported products

  • Multis and Quattros, including split-phase and three-phase systems. Monitoring and control (on/off and current limiter). Configuration changes are possible (only remotely via the internet, not without an internet connection).
  • BlueSolar MPPT solar chargers with a VE.Direct port.
  • BlueSolar MPPT 150/70 and the MPPT 150/85 with VE.Can port. When multiple BlueSolar MPPTs with VE.Can are used in parallel, all information is combined into one.
  • Devices from the BMV-700 family can be connected directly to the VE.Direct ports on the Venus GX. Use the VE.Direct cable.
  • Devices from the BMV-600 family can be connected to the VE.Direct ports on the Venus GX. An additional cable is required.
  • Lynx Ion + Shunt
  • Lynx Ion BMS
  • Lynx Shunt VE.Can
  • Skylla-i battery chargers
  • NMEA2000 tank sensors
  • A USB GPS can be connected to the USB port. The data is sent to the VRM portal for traceability. The most recent position is then displayed on the map on the VRM.
  • Fronius PV inverters

Scope of delivery :

1x Victron BPP900400100 Venus GX system control module
1x instruction manual

Data sheet

Generally:
Manufacturer part number BPP900400100
Product type central system monitoring unit
Manufacturer Victron Energy
Ambient temperature -20C - +50C
Dimensions (LxWxH) 45 x 143 x 96 mm
Weight 0.254 kg
EAN 8719076037897
