VOTRONIC minus distributor 14

VotronicSKU: 3218

Price:
Sale price€40,29 EUR Regular price€50,70 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

circuit distributor

motorhome

off-road

blue light

Proper wiring of electricity in the vehicle is not only a question of orderliness but rather an imperative to ensure safety on board. The frequently encountered tangle of cables, which continues from the battery behind the furniture walls, makes it difficult to find the cause in the event of a fault and often poses a serious risk.

This is where small, indispensable helpers from the VOTRONIC peripheral device program come in, which among other things take care of the professional distribution or protection of the battery plus side and secure ground conditions.

Minus distributor 12

Compact, powerful distributor on the battery negative side for 12 individual circuits. Two large collective terminals (cable cross-sections up to 16 mm², current carrying capacity max. 50 A) serve to feed current back to the battery; they can also be used for a further minus passage distribution.

On the consumer side, 12 distribution terminals allow the connection of cable cross-sections of up to 4 mm² with a maximum current carrying capacity of 20 A. The minus distributor 12 is particularly recommended for ground merging in isolating (plastic) vehicle bodies or in the case of insufficient ground ratios. The cover hood provides a clean look. Suitable for 12 V and 24 V operation.

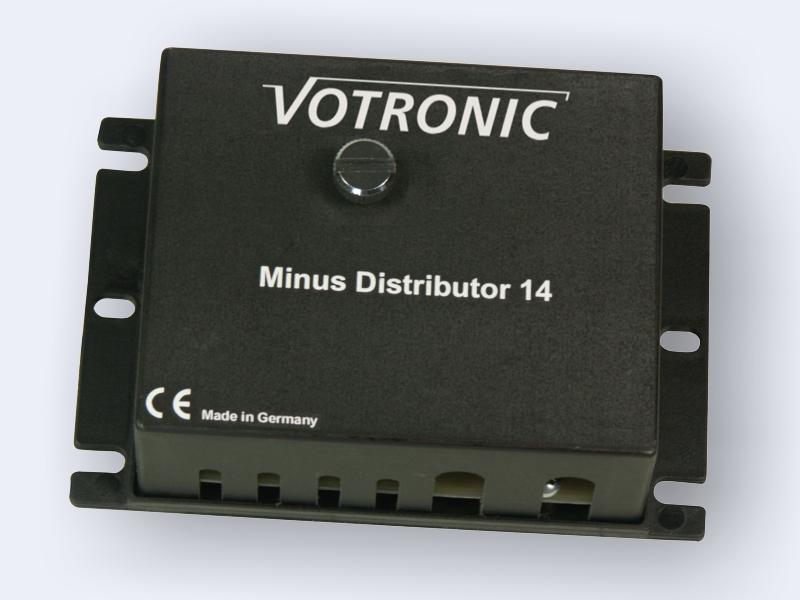

Minus distributor 14

Efficient distributor on the negative battery side for 12 individual circuits. Particularly recommended for mass distribution with isolating (plastic) vehicle bodies or uncertain mass ratios. The negative lead is connected to a solid screw block with a cable lug (cable cross-section 16mm², total current carrying capacity max. 96 A). If required, another screw block is used for further minus passage distribution (cable lug 16 mm²). It is distributed to 4 terminals (6 mm², max. 32 A) and 8 terminals (4 mm², max. 20 A). These circuits are labeled 1-12. The cover hood with cable routing comb ensures that the cables are held securely and that the appearance is clean. Suitable for 12 V and 24 V operation.

device type
Art.-
No.
battery voltage
[V]
Dimensions (W x H x D)
[mm]
weight
[G]
Minus distributor 12 1st 3208 12 and 24 90x38x60 80 C
Minus distributor 14 2nd 3218 12 and 24 108x36x71 125 D
Approval: CE, E-test (EMC/Automotive Directive)
Scope of delivery 1 : operation manual
Scope of delivery 2 : 2x cable lugs 16mm², operating instructions

Also available in boat version with moisture-proof electronics ! ?

Delivery time: 1-3 working days

GPSR Information

Hersteller
Name: Votronic
Anschrift: Musterstrasse 10
PLZ, Ort: 12345, Musterstrasse
Land: Germany
