Now with an 8-year warranty!
Highest quality and reliability for almost all areas of application, whether caravan, marine or energy storage. The latest cell technology, optimized BMS 2.0 control and monitoring set the standard for maximum performance and service life. Optimum monitoring and control of measurement and consumption values possible via measurement shunt and Bluetooth.
TOP features
100% usable capacity
With our premium battery series, 100% of the specified capacity can be used without damaging the battery. Conventional lithium batteries can often only be discharged to 92-95%.
Multi-Charge-Mode (MCM)
With the Multi-Charge-Mode (MCM) you can continue to use 99% of the devices such as boosters, shore chargers or solar regulators. This saves you additional costs and preserves the manufacturer's warranty for new vehicles.
Bluetooth measuring shunt
Optionally, all our X-series batteries are available with a 500A Bluetooth measuring shunt to display the truly exact charge level via APP.
Built-in complete protection / safety first
The integrated, intelligent battery management system (BMS) protects the battery and ensures completely safe use.
Big Power Prismatic Cells (BPC)
In contrast to conventional batteries, which consist of many small interconnected cells, FORSTER relies on a few, larger battery cells. The minus in complexity brings a plus in performance, service life and safety.
- Maximum space utilization
- Few cell connectors
- Lower weight
- Quick assembly
- High safety and durability
- High reliability
200A High Load Power Battery Management System (BMS)
A battery management system monitors and controls the individual cells of a battery and protects them from damage.
Important functions of the BMS:
- &overload protection
- Deep discharge protection
- overvoltage protection
- Active cell balancing
- Complete charge control
- Multi-Charge-Mode (MCM)
- Temperature protection of the BMS
- Short-circuit protection
Protection class IP67
The housing of the premium battery is fully bonded to enable flexible use even in damp or wet conditions.
Best warranty processing 8-year warranty
FORSTER INDIVIDUAL BATTERIES grants an 8-year warranty on its batteries. Even after the warranty period, our service is there for you and can check and repair your battery. Thanks to our modular design and the use of large cells, this is easy, quick and cost-effective.
- 8-year manufacturer's warranty
- Fast warranty processing
- Fast and efficient
- Good value even after the warranty period
You can find suitable pole adapters here.

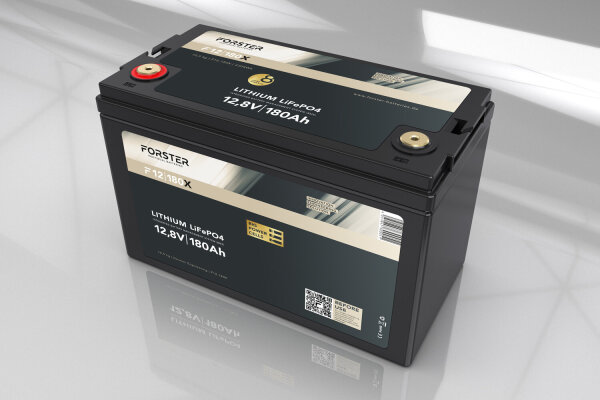

Technical specifications
|
Data / order no.:
|
F12-180X
|
|
EAN
|
4251847302468
|
|
Capacity
|
180Ah
|
|
Replaces lead-gel AGM battery
|
360Ah
|
|
Nominal voltage
|
12.8V
|
|
Energy content
|
2304Wh
|
|
Operating voltage
|
10.5V - 14.6V
|
|
Application parallel circuit
|
Yes, any number of the same type possible in parallel!
|
|
Application series shifting
|
Yes, serial up to 24V, 36V and maximum 48V possible!
|
|
Cell technology
|
Lithium LiFePO4
|
|
Cell type
|
BPC Big-Prismatic-Power High Load Cells- GradeAA
|
|
Charging programs
|
CCCV / IU / IUoU / Lead-Säure
|
|
Final charge voltage
|
14.2V - 14.6V
|
|
Preservation charge
|
13.3 - 13.8V
|
|
Maximum charging current
|
180A
|
|
Recommended charging current
|
90A
|
|
Max. discharge current / 5 sec.
|
400A
|
|
Continuous discharge current
|
200A
|
|
Battery shutdown
|
10.5V
|
|
BMS Battery Management System
|
integrated
|
|
Remote monitoring optional
|
Optionally available with 500A Bluetooth measuring shunt and free APP
|
|
Remote monitoring/measurement shunt integrated
|
F12-180XB
|
|
Protection class
|
IP67
|
|
Cycles / service life at 50% DoD
|
>6000
|
|
Cycles / service life at 80% DoD
|
>4000
|
|
Cycles / service life at 90% DoD
|
>3000
|
|
Temperature during charging
|
0°C to +60°C / below 0°C the charging current is automatically reduced by "Cell-Frost-Control" in the BMS
|
|
Temporary repair on discharge
|
-20°C to +60°C
|
|
Recommended storage temperature
|
-10°C to 30°C
|
|
Storage
|
80 - 100% charged / when not in use, charge battery every 6 months
|
|
Self-discharge
|
1 - 2% / month
|
|
Connection
|
M8
|
|
Plus pole arrangement
|
front left
|
|
Endpolart
|
M8 internal thread
|
|
Preparation for shunt assembly
|
n/a
|
|
Emergency stop switch built in
|
n/a
|
|
Maße
|
330 x 175 x 220 mm
|
|
Installation position
|
any, standing, lying, sideways, upright, upside down
|
|
CANbus interface
|
n/a
|
|
Weight
|
16kg
|
|
Guarantee
|
8 years
|
|
Certification
|
UN38.3 | MSDS | CE | RoHS
|
