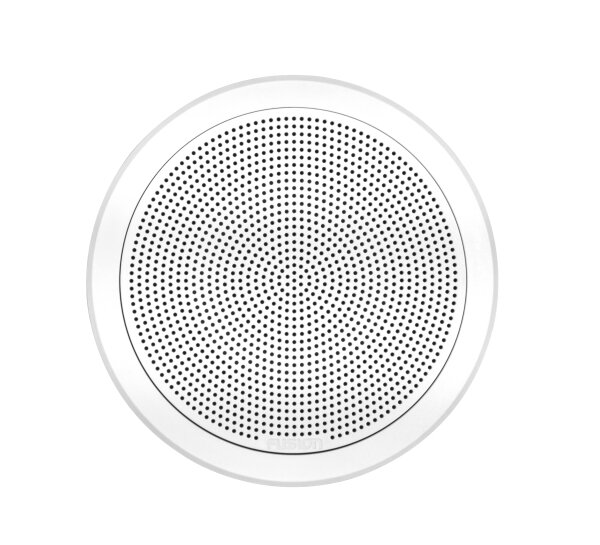

The new FM Series speakers from Fusion have been developed for high-quality audio reproduction with innovative design aesthetics and are engineered to provide your boat with enhanced acoustics in a sleek and minimalist form factor that matches the latest trends in boat design.
The FM Series speakers feature an intelligent mounting system (without screws) for unobtrusive, easy installation and are designed to be flush-mounted with a mounting profile no thicker than 2.5 mm, creating a premium, visually appealing, nearly flat surface finish.
Waterproof to IP65, with True-Marine™ certification and an industry-leading 3-year warranty, you can rely on your FM Series speakers to be built for a long service life on board.
Features:
Optimized full-range speaker: The FM Series speakers are acoustically optimized for performance in the marine environment by combining optimized speaker drivers and aluminum dome tweeters to deliver high-quality sound at all volume levels.
Innovative design aesthetics: The FM Series was developed with a shallow installation for a visually appealing finish and complements the aesthetics of any boat.
Non-invasive mounting system: The FM Series uses "speaker legs" that hold the speaker in place without creating screw holes.
True-Marine™ designed and engineered: The FM Series has been extensively tested to perform in the harsh marine environment and features an IP65 weatherproof rating as well as True-Marine certification.
Designed to comply with ISO12216: Tested to international standards for pressure and water tightness, the FM Series has been designed and built to the highest industry standards for quality and robustness.
Technical Data
|
Diameter
|
7.7 inches
|
|
Peak power
|
200 watts
|
|
RMS rated power
|
50 watts
|
|
Sensitivity (1W/1M)
|
91 dB
|
|
Frequency
|
80 Hz - 18 kHz
|
|
Nominal impedance
|
4 ohms
|
|
Recommended amplifier power (RMS)
|
20 - 150 W/Ch
|
|
Tweeter type
|
Aluminum dome
|
|
Speaker material
|
Polypropylene with rubber surround
|
|
Cutout diameter
|
165 mm
|
|
Mounting depth
|
83 mm
|
|
Optimal enclosure volume (sealed enclosure, completely filled with absorption material)
|
8L
|
|
Operating temperature range
|
0 to 50°C
|
|
Storage temperature range
|
-20 to 70°C
|
|
Water and dust resistance (IP rating)
|
IP65
|
|
Warranty
|
3 years
|
