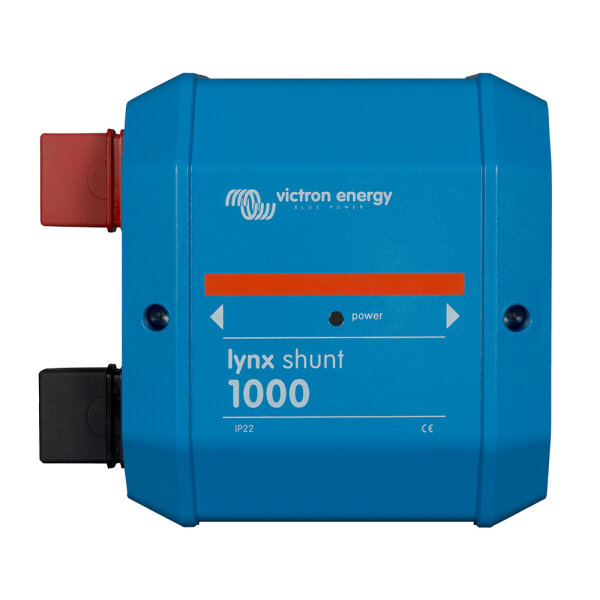

Lynx Shunt VE.Can (M10)

Victron Energy |LYN040102110
GTIN: 8719076065487

The Lynx Shunt VE.Can from Victron is an intelligent 1000A shunt with a provision for a fuse. The built-in battery monitor allows the battery's state of charge to be monitored accurately. To read out the information, use a GX device (e.g. Cerbo GX). Part of the modular Lynx distribution system.

-46%

241,90 €

RRP ~~451,01 €~~

incl. 0% VAT , Shipping costs for orders according to (DE) §12 para. 3 UStG

Choose tax zone / country of delivery

0% VAT for photovoltaics (Section 12 (3) UStG). For further information, please see und here

Available immediately
Ships in 2-5 business days (Mon-Fri) (DE - int. shipments may differ)

The Lynx Shunt VE.Can (M10) from Victron Energy is a central component of the modular Lynx distribution system. It combines a positive and negative busbar, a high-precision battery monitor and a fuse holder for the system's main fuse. In contrast to the M8 model, CNN, ANL or Mega fuses can be used in the M10 model. Thanks to the VE.Can interface, the shunt can communicate seamlessly with GX devices (e.g. Cerbo GX) to provide real-time data on the battery status. It is also equipped with a status LED that indicates the current operating status.

Features of the Lynx Shunt VE.Can M10

1000A battery monitor

Integrated busbar

VE.Can communication

Flexible fuse placement

Status LED display

Modular Lynx system

For 12V-48V systems

Special feature of the M10 model

The M10 model contains an additional busbar that can replace the fuse in the shunt. This allows the main fuse to be flexibly relocated, which is particularly advantageous for larger systems with higher fuses.

Lynx distribution system

The Lynx distribution system is a modular busbar system that includes DC connections, distributors, fuses, battery monitoring and/or lithium battery management functions.

Technical specifications

Voltage range: 9-70 V DC

Rated current: 1000 A

Supported battery systems: 12 V / 24 V / 48 V

Current consumption: 60 mA (at 12 V) / 33 mA (at 24 V) / 20 mA (at 48 V)

Potential-free alarm contact: 3 A, 30 VDC / 250 VAC

Connections: M10 screw connections

Operating temperature range: -40°C to +60°C

Dimensions: 190 x 180 x 80 mm

Humidity: max 95% (non-condensing)

Weight: 1.4 kg

Protection class: IP22

Scope of delivery:

1xVictron Lynx Shunt VE.Can (M10) 2x VE.Can RJ45 terminating resistors 1x temperature sensor (ASS000001000) with wire end ferrules and connection terminal 1x fuse dummy (part of a busbar)

Item weight:

1,40 kg
