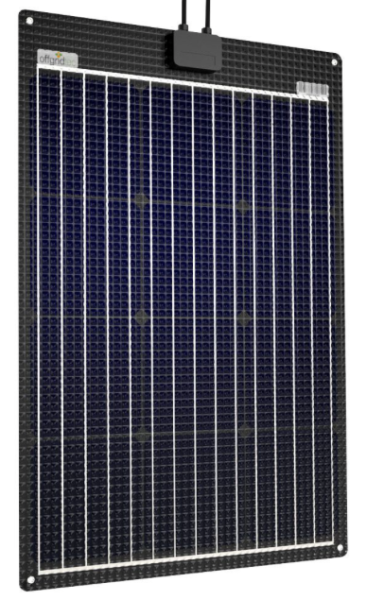

Offgridtec® ETFE-AL 60W V2 semi-flexible 18V Solarpanel

Offgridtec® ETFE-AL 60W V2 semi-flexible 18V Solarpanel

Offgridtec |3-01-018420
GTIN: 4262440561718

36,90 €

incl. 0% VAT , Shipping costs for orders according to (DE) §12 para. 3 UStG

(Save 53.86%, i.e. 43,07 €)

Choose tax zone / country of delivery

0% VAT for photovoltaics (Section 12 (3) UStG). For further information, please see und here

Available immediately
Shipping in 2-5 business days (DE - int. shipments may differ)

Description

The semi-flexible ETFE-AL 60W V2 solar panel from Offgridtecis based on a pioneering material composition (aluminum-ETFE) and is equipped with highly efficient mono cells. The output voltage is 18V, which makes it very interesting for a variety of application scenarios. It is also walkable and significantly more slip-resistant than its predecessors, making it the perfect choice for marine and mobile applications. The power is supplied by state-of-the-art solar cells which, thanks to the latest technology, have a remarkable cell efficiency and also stand out from the crowd thanks to their low power degradation values. It is the new and improved version of the popular ETFE-AL 60W solar panel and guarantees consistently high quality and performance with maximum service life thanks to state-of-the-art production.

2 superimposed ETFE layers

Improved slip inhibition

higher yields in the long term due to improved light transmission

solid ETFE front offers protection against hail

resistant to salt water

works with 5 busbar technology

integrated AL backsheet

ETFE layers:
On the front of the module, 2 superimposed ETFE layers ensure solid protection of the internal cells and a high light yield over many years. Thanks to a new structure of the first layer, the slip resistance has been significantly improved and the module can be walked on without any problems. In the long term, higher yields are achieved thanks to better light transmission and significantly less penetration of the transparent ETFE front layers compared to conventional solar modules with different front coatings. The solid ETFE front provides strong protection against hail and makes the module absolutely resistant to salt water. The integrated AL backsheet virtually eliminates the risk of cell cracks caused by incorrect handling or installation. The series is equipped with the best solar cells, which offer a high cell efficiency of 22.3 percent.

5 busbar technology
The power management is handled by 5 busbars. With this advanced technology, the current is managed via five electrical conductor paths (busbars). This enables reliable throughput, even at high currents, while minimizing heat losses. The efficient distribution of power ensures a solid performance of the solar panels, resulting in improved overall efficiency and higher yields.

Monocrystalline modules
Monocrystalline solar modules are an advanced form of photovoltaic modules that are made from a single crystal lattice. This crystalline structure enables a higher efficiency in the conversion of sunlight into electrical energy compared to other types of solar modules. The monocrystalline cells are characterized by their uniform structure, which enables a more efficient movement of the charge carriers. This results in better performance, especially in situations where space is limited, as monocrystalline modules have a higher power density.

Technical features
- Power (Pmax): 60 Wp
- Voltage (Vmp): 18.2 V
- Max. current (Imp): 3.30 A
- Open-circuit voltage (Voc): 21.30 V
- Short-circuit current (Isc): 3.46 A
- Max. system voltage: 200V
- System voltage: 200V
- Max. System voltage: 200V
- Dimensions: 860 x 395 x 4mm
- Operating temperature range: -40°C - 85°C
- Integrated bypass diodes
- Cell efficiency: 22.30%
- Material composition: aluminum, ETFE
- Walkable: Yes
- Bendable: max. 10° (L)
- Weight: 2.16kg

Scope of delivery
1x Offgridtec ETFE-AL 60W V2 semi-flexible 18V solar panel

Shipping weight:

4,00 kg
Item weight:

2,16 kg
