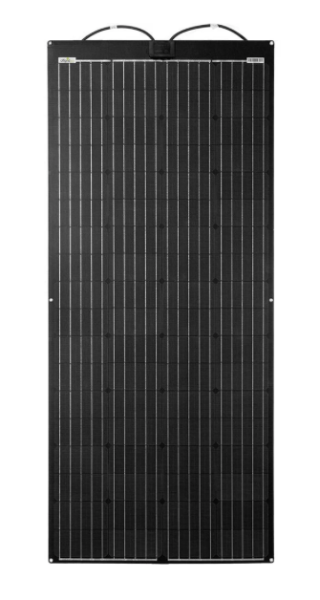

Offgridtec® PCB-ETFE 200W 30.8V V2 semiflexible Solarpanel

Offgridtec® PCB-ETFE 200W 30.8V V2 semiflexible Solarpanel

Offgridtec |3-01-018415
GTIN: 4262440561688

2913,96 Kč

incl. 0% VAT , Shipping costs for orders according to (DE) §12 para. 3 UStG

(Save 44.94%, i.e. 2378,36 €)

Choose tax zone / country of delivery

0% VAT for photovoltaics (Section 12 (3) UStG). For further information, please see und here

Available immediately
Shipping in 2-5 business days (DE - int. shipments may differ)

Due to exceptionally high demand, we are currently experiencing shipping delays. We apologize for any inconvenience.

Ordered in Germany. Delivered to Switzerland.

Order from any online shop in Germany and receive your goods at your doorstep in Switzerland in just 2–3 days.

Description

The PCB-ETFE 200W solar panel from Offgridtec sets new standards with high-quality materials such as Teflon derivatives at the front, fiberglass at the rear and 5-busbar technology. It is semi-flexible and ideal for 24V systems with an operating voltage of over 30.8V.
For 12V systems, MPPT charge controllers are required that can process higher module voltages. These and other quality features make the PCB-ETFE 200W from Offgridtec a universally applicable top-class product that feels just as comfortable on boats as on vehicle roofs or other surfaces and combines stability, maximum reliability and performance like no other.
It s the improved version of our 200W 39V module. This new version offers a lower operating voltage, while the maximum current and short-circuit current have been increased, which indicates increased efficiency and performance of the module.

Best with monocrystalline A-grade solar cells

Cell efficiency of over 22.3%

5 busbar technology

PCB backsheet

Walkable and even more slip-resistant than comparable solar modules when wet

Semiflexible - bendable up to a maximum of 18 degrees (longitudinal side)

Easy installation of the solar panel by gluing or using the rings

High light transmission of max. 96%

Pre-assembled solar cable with MC4 plug and socket

Proven Offgridtec quality

ETFE high-tech plastic on the front side

The front side of the solar panel is covered with a high-tech plastic layer based on ethylene tetrafluoroethylene copolymer ETFE - a Teflon derivative (PTFE) - and offers excellent protection against harmful environmental influences and is also suitable for use in salt water. ETFE is lighter and at the same time more translucent than other plastic solutions on the market.

Extremely stable fiberglass (PCB) carrier plate as the back side#The fiberglass (PCB) back side makes the module significantly more stable than conventional panels with a TPT back side. This structure offers you the following advantages:
- Prevents bubble formation, which can occur with TPT modules due to incorrect bonding
- Tolerates higher temperatures compared to the TPT structure
- Reduces the risk of cell breakage due to accidental bending of the panel by the user

This product is the result of accumulated experience from thousands of installations in every conceivable field of application. We successfully established our first series of flexible solar cells on the market 5 years ago and have been continuously developing and optimizing our modules ever since. With the PCB-ETFE series, you benefit from this unique expertise and can look forward to a durable product that will reliably produce electricity for many years to come.

Technical data
- Generator output: 200 Wp
- Working voltage (Vmp): 30.8 V
- Open circuit voltage (Voc): 36.0 V
- Max. current (Imp): 6.50 A
- Short circuit current (Isc): 6.82 A
- Max. system voltage: 200 V
- Max. System voltage: 200 V
- Power tolerance: +/- 3% +
- Operating temperature: -40 to +85°C
- Protection class: IP67
- Cells per module: 3 x 18
- Cell size: 182 x 91mm
- Module dimensions: 1770 x 580 x 3mm
- Weight: 5.02 kg

Scope of delivery:
Offgridtec 3-01-010845 PCB-ETFE 200W 30.8V semi-flexible solar panel

Shipping weight:

6,50 kg
Item weight:

5,02 kg
