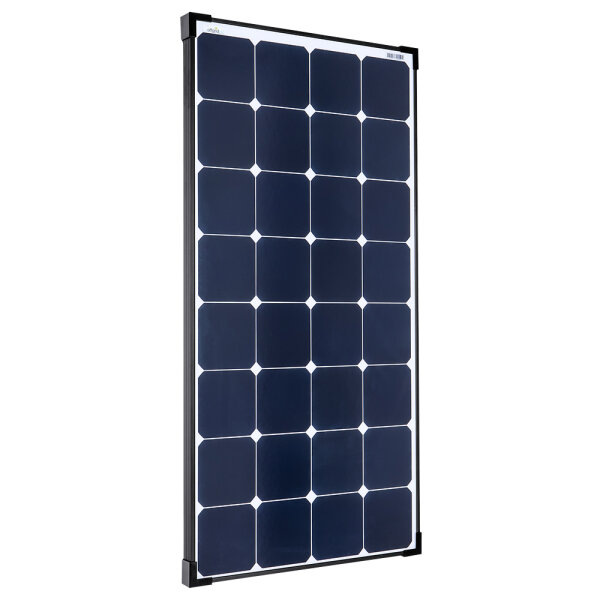

Monocrystallines 120W / 12V Hígh-end solar panel with high-power solar cells contacted on the back from the American manufacturer Sunpower-the best thing you can process with an efficiency of over 24%. Here the world's best solar cells and the new back contact process meet. The result is a high-end product at a solid price. In addition, when producing this series, we particularly took care that the rest of the module also meets the valuable cells. This panel is significantly lighter and in terms of space smaller than conventional solar cells with the same performance. The light output in poor conditions is also higher in the SP series than in our normal mono series.
Important properties
-
Cell efficiency of over 24%
-
Lighter and smaller than other mono modules with the same performance
-
Monocrystalline High-Power solar cells (Made in USA)
-
very good yield even in poor light
-
Contacted the back (Back-Contact There are only the pure cells on the front side)
-
Black aluminum frame (black frame)
-
Extremely resistant
-
Ideal for motorhomes, boats/yachts and small areas
-
Noble optics
In the production of our modules, only monocrystalline SunPower solar cells of the highest quality level are processed. In contrast to the conventional solar modules, the cells are connected to each other on the back (back contact), which increases the cell efficiency and ensures a noble look.
The module has a black frame made of aluminum and has a specially hardened ESG solar glass.
The connection cables are 80cm long and equipped with MC4 plugs.
Technical specifications
Performance (pmax): 120W
Tension (VMP): 19.8V
Max. Electricity (IMP): 6.05a
Limitation voltage (VOC): 23.35V
Short circuit current (ISC): 6.41a
Max. System voltage: 600 V/DC
Customs: -40 ...+85 ° C
Dimensions: 540 x 1055 x 35 mm
Weight: 6.5 kg
