Philippi LAR Onboard Network Control for AC Grid

Philippi |010000231
GTIN: 4250214631002

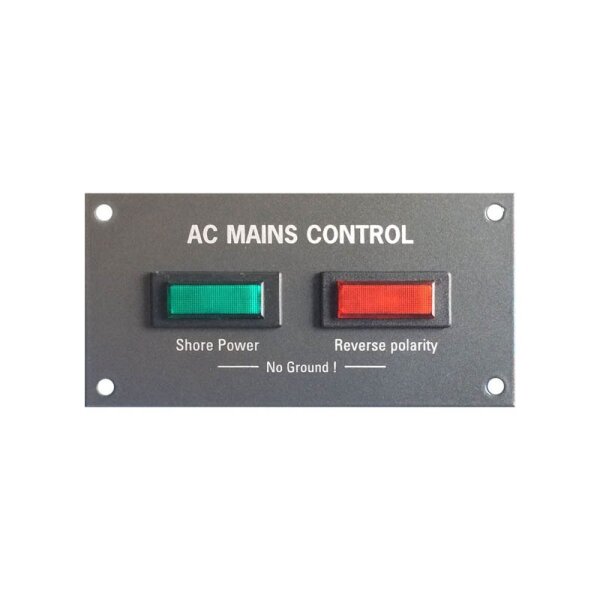

The LAR mains control panel indicates whether the AC onboard electrical system is correctly connected to shore power. Green light on means: everything connected correctly; red light on: phase and neutral conductor are reversed (L and N swapped). Both lights on: protective earth (PE) not connected.

39,50 €

incl. 19% VAT , plus

Net: 33,19 €

Choose tax zone / country of delivery

Available immediately
Shipping in 2-5 business days (Mon-Fri) (DE - int. shipments may differ)

Description
GPSR Information

The network control panel LAR shows the electrically correct connection of the AC-BRONZ network to the AC land network:
Green light: Everything connected correctly, red light: phase (L) and zero conductor (s) are exchanged.

Measuring error current 1.4 mA, not suitable for AC networks without protective conductor, since no error detection is possible here.

The consumer supplies are connected via flat stains 6.3mm on the back.

The panel is to be installed in such a way that the back is only accessible and covered with tools.
The installation section can be selected by 12 mm per edge smaller than the panel dimensions (81 x 28.5 mm).

Dimensions: W 105 x H 52.5 x D 50 mm

Shipping weight:

0,15 kg
Item weight:

0,10 kg
