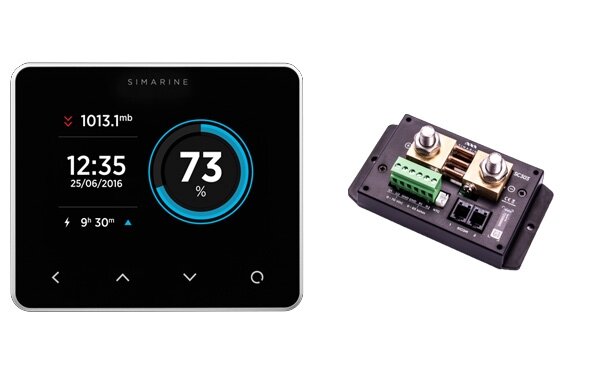

PICO One (BASIC) package in black or silver
The PICO one package is the perfect battery and tank monitoring solution for smaller boats, campervans, buses and caravans with a service battery bank with up to 300 A at 12 V, 24 V, 48 V, 60 V and 72 V, one or two engine/standby battery banks and up to 2 tanks.
1x PICO one display unit
1x SC303 300 A shunt
SC303 is an innovative combination of shunt and tank level module.
The SC303 active combination shunt ensures precise monitoring of the battery voltage in systems with 12 V, 24 V, 48 V, 60 V and 72 V, the battery temperature and continuous currents of up to 300 A (peak 400 A). It is suitable for a maximum power of 3600 W at 12 V or 7200 W at 24 V. It has an additional battery voltage input (2 in total).
The measuring shunt has 2 resistor inputs for monitoring the tank level or temperature and an additional JST socket for the temperature sensor with JST connection. In addition, the SC303 module can also be used to monitor the power consumption of large consumers such as inverters, bow and stern thrusters and anchor winches and the power generated by generators such as shore power chargers, solar modules, water and wind power generators.
The innovative protected architecture of the SC303 enables connection to either the negative side (up to 72 V) or the positive side (up to 24 V).
Suitable tank sensors: Basically all resistance-based level indicators such as:
Wema transducer for water and fuel S3
Schaudt tank probe (an adapter cable may be required)
All monitoring functions of the PICO One package:
1x battery bank with Real-Time Battery Health™ (monitoring of amperage, voltage and temperature)
2x battery voltage only
2x tank levels or temperatures
