Tank ads
For fresh water, wastewater and fecal tanks
|
|
|
| Device type |
Art.-
No. |
Operating
tension
[V]
|
Electricity-
recording
[Ma] |
Dimensions
(WXHXT)
[mm]
|
Installation
Dimensions
[mm]
|
Weight
[G]
|
Out of-
guide |
| Fresh water tank advertisement S |
5311 |
12 and 24 |
1 - 30 |
47 x 85 x 20 |
29 x 63 x 18 |
25 |
A |
| Wastewater intake S |
5313 |
12 and 24 |
1 - 30 |
47 x 85 x 20 |
29 x 63 x 18 |
25 |
B |
| Fecal tank advertisement S |
5315 |
12 and 24 |
1 - 30 |
47 x 85 x 20 |
29 x 63 x 18 |
25 |
C |
| Test mark: |
CE, e-test (EMV/car directive) |
| Scope of delivery: |
Fastening screws, operating instructions, drilling template |

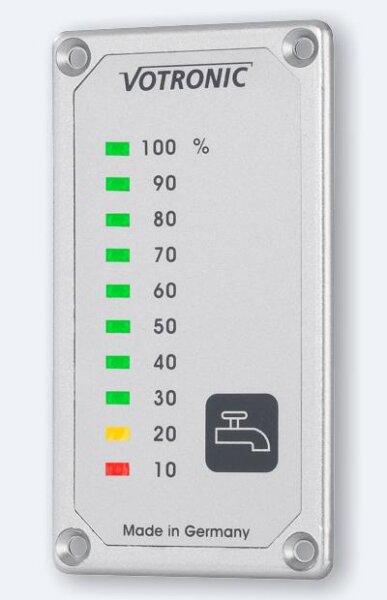

The Votronic tank ads were designed for precise level measurement and can be used for all tank materials and tank sizes. They differ in the arrangement of the three -color indicators at the end of the area and in the symbol print on the front panel.
The filling heights of the tanks are presented as clear luminous beams with 10 luminous diodes each in three colors, which allows the exact recording of the tank filling levels at a glance. The ads work continuously because intermediate stands with variable brightness are shown and tendencies can therefore be recognized immediately. When refueling and emptying the containers, the steadily increasing or falling display provides the user the direct image of the current level and thus enables the process to be completely checked. The permanent operation of the display also contributes to this. The display can be switched on and off at the push of a button or switches off automatically after about 10 minutes.
The display devices are designed as a panel version to match the Votronic module system and are optimally lined up with other Votronic display devices (uniform height 85 mm). Of course, it is also possible to retrofit a single display in the vehicle. Low front panel dimensions and the particularly low installation depth of only 18 mm allow assembly at almost every point. The storage space behind it can be used further.
The devices are protected against false polarity and overload and easy to connect via screw terminals on the back of the device. Installation and operating instructions as well as drilling templates for the furniture section are included. Like the donors, the ads are also suitable for 12V and 24V operation.
Depending on the application and tank, one of the Votronic tankers can be used:
- Tank electrode 12-24 K
- Tank electrode 15-50 K
- Tank electrode 20 K toilet
- Tank sensor FL
- Tank sensor 30-110 K-FL
The display devices can also be covered with 2 tanks (e.g. indoor/outdoor tank, summer/winter operation, additional tank etc.). The individual switch 2xum are suitable for switching, e.g. switch panel 16 a s Art. or switch panel 2x16 a S Art.-No.
Previous measurement value tank tankers set and tank probe worked according to the conductive measurement method (conductivity) and are no longer suitable due to the 7-stage measurement and for continuous operation on the tank ads.
Also available in boats with the electronics protected from moisture!
