The Votronic tank electrode 20 K-WC (HAN 5555) is a tanker for cassette toilets in motorhomes that are now considered an absolute standard. Cassette toilets are compactly constructed and have an advertisement, which unfortunately unfortunately only marks the full state. Once this has been reached, the toilet in the vehicle can no longer be used. The use of tankers in combination with votronic filling displays enable forward -looking planning of the disposal and renewal of your mobile tanks.
The essential product properties of the 20 K-WC tanker
- Tanker specially designed for cassette toilets and mobile tanks
- Compact, robust, waterproof (IP67)
- Easy assembly, no revision opening required
- With a 3-pin round plug connection to separate the tank
- Complete assembly material included
- Stable electrode, easy to shorten at tank height
- Installation diameter 38 mm (or PG 29 thread)
- Flange diameter 46.5 mm
- Test mark: E-test (EMV/car directive)
- Connection cable 75 cm long
- Assembly from above using assembly
- Loosable plug connection for tankering
Optimal in interaction with Votronic filling displays
The tanker is compatible with the following Votronic :.
- Wastewater indicator S, 5313
- Fecal tank advertisement S, 5315
- Info Panel Pro, 5330
- Info Panel Pro 24V
- VPC Terra
- VPC Merkur
- VPC Jupiter 100 Smart Shunt, 5747
- VPC Jupiter 200 Smart Shunt, 5748
- VPC Jupiter 400 Smart Shunt, 5749
Solid measurement technology and simple assembly

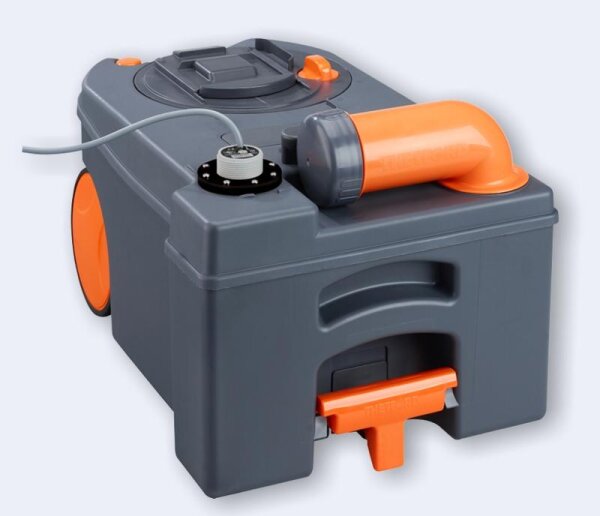

The tank electrode 20 K-WC was further developed on the basis of the long-proven tank electrode in order to obtain a full filler indicator especially for use in cassette toilets. The compact design makes it possible to simply screw the tanker into the toilet cassette from above via the supplied assembly ring. The necessary assembly opening of 38 mm diameter is easy to produce with a hole saw. The fully resumed electronics is designed waterproof (IP67) and suitable for rough operation when rinsing the toilet cassette.
To change the cassette, the tank electrode 20 K-WC is separated from the vehicle via a solid 3-pin round connector and the plug on the cassette is fixed. In addition to the 3-pin round plug connection, the scope of delivery also includes assembly and complete assembly material.
Delivery time: 1-3 working days
Scope of delivery:
1x votronic 5555 tank electrode 20 K toilet
