The Victron MPPT 75/10 (without Bluetooth !) belongs to the large family of BlueSolar MPPT charge controllers and, like its larger siblings, it already offers ultra-fast power tracking and can therefore increase the yield of your solar system.
The latest generation MPP tracker
In particular under cloudy skies, when the light intensity is constantly changing, an extremely fast MPPT controller improves the energy yield by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
In addition, the 75/10 features several other innovative technologies.
Programming, real-time data and history display
Smartphones, tablets and other devices can be connected to the Bluetooth Smart Dongles and the MPPT app or the GX Color Control via VE.Direct, for example. Please note that Bluetooth Smart Dongles and GX Color Control are separate items that are not included in the scope of delivery of the charge controller but can be purchased from us as an option.
Features
Ultra-fast MPP tracker ensures the best possible yield even under cloudy skies
Integrated VE.Direct data communication port for connection for communication with additional devices such as Bluetooth Smart Dongle or the GX Color Control Panel
12V 24V systems possible
;
Nominal charging current 10A
145W maximum PV power for 12V, 290W for 24V systems
Load output with 10A power and automatic load cut-off in the event of imminent battery undervoltage (deep discharge protection)
Integrated protection against battery polarity reversal
Multi-stage and adaptive charging algorithm
Programmable battery charging algorithm
Integrated battery life algorithm extends the life of your batteries if necessary;extends the life of your batteries if it is active and all loads run via the load output on the controller
Day/night time control and light dimming option
100x113x40
VE.Direct data communication port
VE.Direct in text mode transmits all important parameters to other devices connected to the charge controller every second and thus offers the possibility of communication with additional devices such as the Bluetooth Smart Dongle or the GX Color Control Panel from Victron. The VE.Direct connection is intended for products where full CANbus integration (VE-Direct) would be too expensive.
Battery Life Algorithm to increase battery life
If the solar charge controller is not able to charge the battery to its full capacity within a day, the status of the battery constantly switches back and forth between "partially charged" and "end of discharge". This operating mode (no regular full charging) is ideal for small lead-acid batteries, but such irregular charging and discharging leads to damage to the battery after just a few months and the service life is sometimes significantly shortened.
The Battery Life algorithm monitors the state of charge of the battery and, if necessary, raises the threshold value for disconnecting the load day by day (i.e. the load is disconnected early), the load is disconnected earlier) until the energy gained is sufficient to charge the battery to almost 100%. From this point, the threshold for disconnecting the load is modulated so that charging to almost 100% is achieved approximately once a week.
Scope of delivery

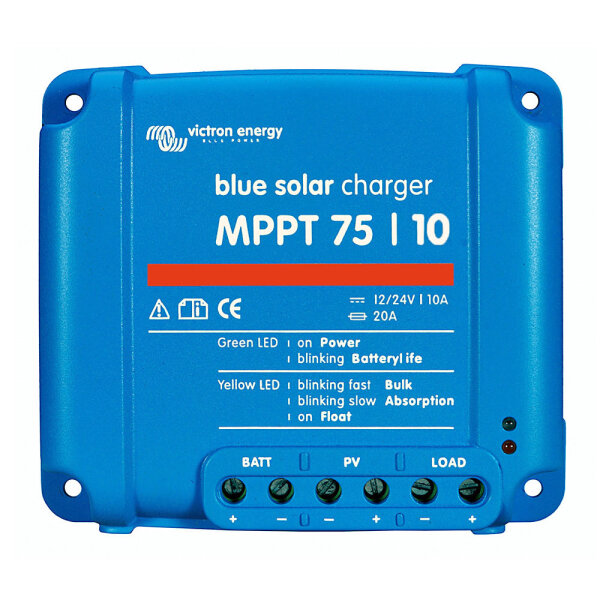

1x Victron SCC010010050R BlueSolar MPPT 75/10 12V 24V 10A charge controller
