Victron Energy's GlobalLink 520 (MPN ASS030543020) provides you with insight into your installation and is a crucial factor in the maintenance and operation of your off-grid energy solutions.
Global connectivity with 4G LTE-M
LTE-M is the abbreviation for LTE Cat-M1 or Long Term Evolution (4G), category M1. This cellular technology was developed to connect Internet of Things devices to existing 4G towers while consuming little energy. LTE-M supports handover and roaming, making it possible to use this device in a moving vehicle such as an RV. Check our GlobalLink 520 manual to see if LTE-M availability is officially confirmed in your region. Coverage is increasing week by week as local providers offer support. Your purchase includes 5 years of connectivity, so you don't have to worry about buying a separate data package and SIM card.
Easy system monitoring and control
Your GlobalLink 520 comes with two VE.Direct connectors that allow you to connect up to two VE.Direct devices such as a BMV battery monitor or MPPT solar charge controller directly to the VRM. With two digital inputs that also act as a pulse counter and a remotely controllable relay, it is a perfect solution for monitoring and controlling your system.
built-in antenna

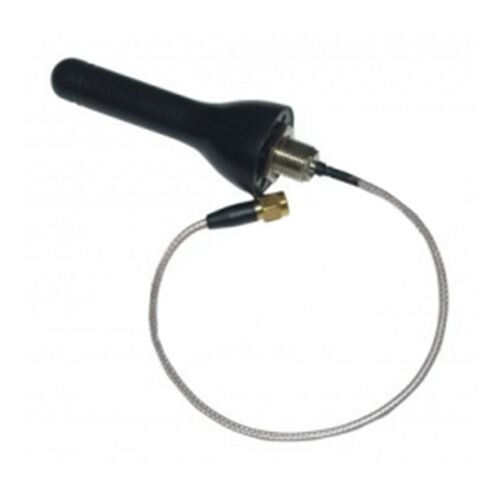

The GlobalLink 520 comes with a built-in antenna designed for use around the world. However, if you need better reception or want to install your module in a commercial vehicle, for example, it is also possible to mount an external antenna.
Victron remote management
The Victron Remote Management (VRM) online portal allows you to access your installation from anywhere and at any time. In VRM you can check the status of your connected products, view detailed history graphs of your energy, create detailed analysis reports and even configure automatic alarms in case something goes wrong.
Scope of delivery:
1x Global Link 520
1x 1.5m power cord with in-line fuse holder 1A, M10 spade lugs and power plug
2x plug-in connection terminals
|
Manufacturer
|
VictronEnergy
|
|
product type 1
|
connection set
|
|
Manufacturer part number
|
ASS030543020
|
|
EAN
|
8719076053644
|
|
Dimensions
|
122.5 x 67.1 x 23.3mm
|
