The LIFEPO4 12.8V 100Ah Smart Battery (MPN BAT512110610) from Victron Energy is a Lifepo4 battery of the latest generation. At full load, the Lifepo4 saves 12.8/100 smart a whopping 1280Wh of electricity, with a very low self -discharge and outstanding lifespan. The Victron family's LIFEPO4 battery already has an integrated cell compensation and a BMS (battery management system) interface. The integrated Bluetooth to connect to the Li-Ion app round off the overall package.

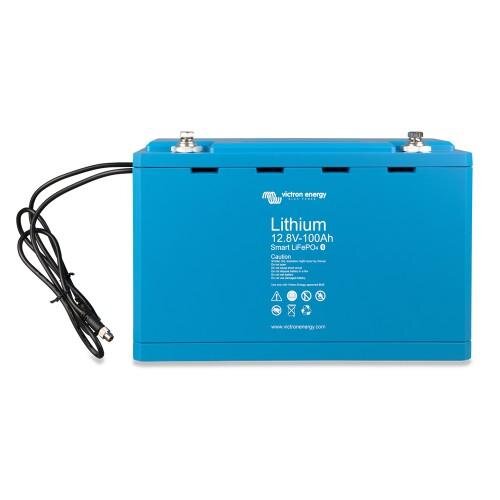

Victron Lifepo4 12.8V 100Ah Smart Battery
- Nominal voltage: 12.8V
- Integrated Bluetooth for connecting to the Victron Li-ion app
- Victron part number: BAT512110610
- Name energy at 25 ° C*: 1280Wh
- Nominal capacity at 25 ° C / 0 ° C / -25 ° C: 100AH / 80AH / 50AH
- Cyclical number 80% / 70% / 50%: 2500/3000/5000 cycles
- Recommended continuous discharge current: 100a
- maximum continuous discharge current: 200a
- Weight: 16kg
- Connection terminal: M8
You can find more technical data in the official data sheet and below in the area of "technical data".
Efficient, economical ...: LIFEPO4 12.8V 100Ah Smart Battery
Lifepo4 batteries are expensive compared to AGM batteries or gel batteries, but in most cases the higher acquisition costs will be more than calculated. With a lifespan of up to 5000 cycles, you also exceed the maximum lifespan of the best lead-acid batteries. In addition, the LFP 12.8/100 scores with 70%in terms of space saving and weight savings. At 92%, the degree of energy is also significantly above the 80% of lead-acid batteries, which can be of essential importance, especially for offgrid systems, especially in the case of network-independent solar and/or wind turbines.
MultiTalent: infinitely flexible with lithium technology from Victron Energy
Lifepo4 Smart batteries from Victron can be implemented in almost all common applications. This technology has been playing an important role in the mobile area for a long time. But thanks to the fact that these batteries are much easier to charge than conventional lead-acid batteries and an irregular charging cannot harm you, they also make their way into land applications and can now be found in almost all system classes.
Parallel and series circuit up to max. 3000AH at 48V
Thanks to the integrated cell compensation and cell monitoring function, you can conveniently switch up to 10 batteries of this type in parallel and up to 4 10 blocks in series, which results in a maximum of 3000AH at 48V- this corresponds to a maximum storable name of around 154,000 W (in use with the 300AH 12.8V version).
Integrated Bluetooth for smart handling
Cell voltages, temperature and alarm status can be monitored via Bluetooth. This is very useful to recognize a (possible) problem like a cell light weight in good time.
Light note: The use of an additional BMS is imperative to interrupt or switch off if the voltage of a battery cell drops below 2.5V or to stop the charging process if the voltage of a battery cell increases to over 4.2V and the system Switch off when the temperature of the cell exceeds 50 ° C.
To do this, you have the choice between the BMS 12/200 and the Ve.Bus BMS - Further details can be found in the devices. Please ask the respective article descriptions.
Scope of delivery:
1x Victron Energy BAT512110610 LIFEPO4 12.8V 100Ah Smart Battery
1x operating instructions
