Victron Phoenix Inverter 24/3000 Smart

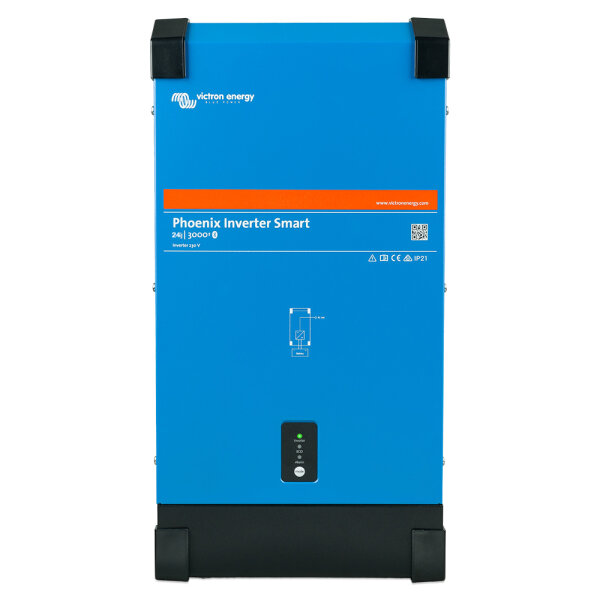

The Phoenix 24/3000 Smart Inverter from Victron Energy is an advanced inverter based on the proven Phoenix series. It offers a continuous output of 3000VA and is designed for 24V battery voltage. Compared to the previous models, the Phoenix Smart series has a Bluetooth module and a VE.Direct output for wireless remote monitoring and system configuration.
The Phoenix 24/3000 Smart is also characterized by its high inrush power and reliability and, thanks to the integrated ECO mode, also plays in the top league of this device class in terms of self-consumption and efficiency.

Performance features Phoenix 24/3000 Smart
for 24V battery voltage, output voltage range 210C - 245V
output power (non-linear): 3000VA, 2400W linear continuous load at 25 degrees ambient temperature
6000W peak power handling high starting currents
integrated Bluetooth module and VE.Direct port for wireless monitoring and system integration
designed for high start-up currents
integrated alarm relay, ECO mode
monitoring of input and output voltage, load and alarms etc. via Bluetooth or VE.Direct
integrated, two-pin plug for connecting an on/off switch (remote control)

üvia Bluetooth or VE.Directly configurable parameters
Low battery voltage alarm
Threshold values for switching off and restarting at low battery voltage values
Dynamic switch-off: load-dependent switch-off threshold
Output voltage: 210 - 245V, frequency: 50 Hz or 60 Hz
Threshold value for ECO mode on/off and ECO mode sensor
Alarm relay

High reliability thanks to toroidal transformer topology
Complete bridging in addition to a toroidal transformer topology has proven itself over many years. The inverters are short-circuit-proof and protected against overheating (whether caused by overloading or the ambient temperature).

Very high inrush current
This is required to switch on loads such as voltage converters for LED lamps, halogen lamps or power tools.

Eco mode
In ECO mode, the inverter switches to standby as soon as the load drops below a preset value. In standby mode, the inverter then switches on every 2.5 seconds for a short period of time (adjustable). If the load exceeds the preset threshold value, the inverter remains switched on.

Remote on/off switching
A remote-controlled on/off switch or a relay contact can be connected to the two-pole plug. Alternatively, connection H (left) of the two-pin plug can be connected to a positive battery terminal or connection L (right) of the two-pin plug can be connected to the negative battery terminal (or to the body of a vehicle, for example).
