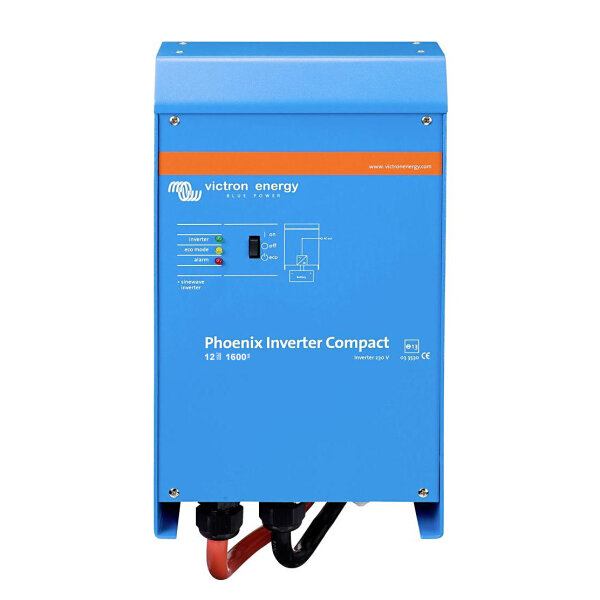

TheVictron inverter Phoenix C12/1600 is the next evolutionary stage according to the 12/80-1200 Phoenix series. Compared to this series, the compact class devices via a greatly expanded functional spectrum. In the communication area in particular, some innovations have been added and make C12/1600 a future -proof investment. The continuous power of this device is 1300W. From a 12V battery, this device generates 230V AC with a pure sine wave and clean 50Hz frequency. which also makes the operation of very sensitive electronics devices possible without compromise. The voltage converter also scores with excellent values in terms of self -consumption and efficiency. As a icing on the cake, this device class now also dominates parallel operation and the three -phase operations with other Phoenix interverters of the same series.
Ve.Bus RS-485 Communication sport-far-reaching, new possibilities
All Phoenix inverters of the Compact series have an RS-485 data port and can thus use the optional VE Interface MK2-USB a connection to a computer / notebook, which opens up whole new options when it comes to configuration and surveillance.
Here are some of the most important options that result from this innovation for you:
Requested programming of many parameters such as output voltage, frequency, the upper and lower voltage boundaries and much more
can be integrated into a computer-aided monitoring and control system
All Phoenix Compact converter can also be used on Venet, the innovative performance monitoring network from Victron Energy, or other computer-aided control and monitoring systems
Easy programming of the integrated relay. The relay can be used, for example, to create signals in special situations or to start a generator.
Parallel and three-phase operation with other Phoenix inverters possible
The development of the new Phoenix series aimed uncompromisingly on an inverter with a clean sinus output with high efficiency. By using the latest hybrid HF technology, it was possible to develop a quality product with compact dimensions with low weight, which can easily output any desired performance. Sinusmax technology, which also enables its place in this series, particularly high peak currents when switching on devices of 3000W!
Other technical C12/1600 Phoenix
1300W continuous output, suitable for all common 12V batteries
Real sine wave delivers a precise 50Hz frequency
Much higher top performance possible thanks to integrated sinus-max technology from Victron
Convert 12V DC into 230V AC with pure sinus wave
Advanced hybrid HF technology is installed, which is much more powerful and less prone to disorders than conventional high-frequency technology
very low self -consumption and high efficiency
Integrated energy saving mode
with 2 poly alarm contact which can be used as an output for one, outdoor control
The Sinus Max Technology
An essential feature of the Sinusmax technology is the particularly high starting performance. This is not possible with conventional HF technology. Phoenix inverters are able to cope with the high starting streams, for example, of cooling compressors, tool engines and the like.
Practically unlimited performance through parallel circuit and three-phase operation
Up to six inverter units can be switched in parallel to increase performance. A three-phase operation is also possible.
Load switching to other intercourse sources: The automatic load switch for smaller services we recommend the Filax automatic switch. Computers and other sensitive electronic devices can be operated practically without interruption, since the switching times are very short (below 20 m/sec).
