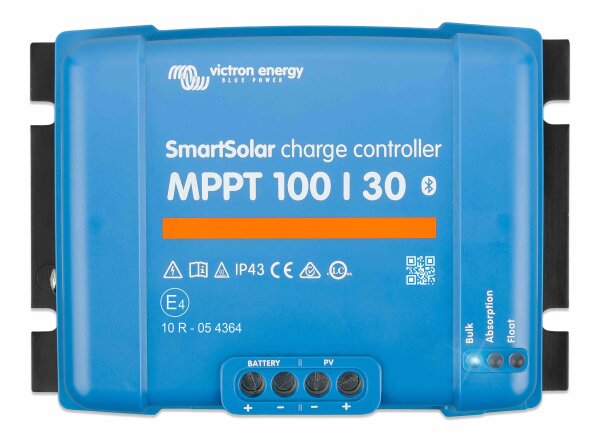

The Victron Energy SmartSolar MPPT 100/30 30A 12V/24V solar charge controller is the new version of the BlueSolar 100/30. The Smart version differs from the Blue version only in the permanently integrated Bluetooth communication module. This allows the SmartSolar charge controller to be fully monitored and analyzed on any app-enabled device. The Victron Connect app required for this can be installed free of charge.
Product features:
Ultra-fast MPP tracker of the latest generation ensures the best possible yield even under cloudy skies
Integrated VE.Direct data communication port
High maximum efficiency of 98%
for 12V and 24V systems
integrated Bluetooth module
30A maximum charging current
Fully programmable charging algorithms that can later be activated and used manually via a switch on the housing;100V maximum PV open circuit voltage
440W maximum PV power for 12V, 880W for 24V systems
integrated protection against battery polarity reversal
multi-stage and adaptive charging algorithm
day/night time control and light dimming option
130x186x70
1.3 kg
more protection:
In comparison to the 75/10, 75/15 and 100/15 models, the SmartSolar 100/30 MPPT ühas overheating protection with a switch-off function and automatic restart after reaching a normal operating temperature.
VE.Direct data communication port
VE.Direct in text mode transmits all important parameters to other devices connected to the charge controller every second, thus offering the option of communicating with additional GX Color Control Panel devices from Victron. The VE.Direct connection is intended for products where full Canbus integration (VE-Direct) would be too expensive.
The latest generation of high-speed MPP trackers
In particular in overcast conditions, when the light intensity is constantly changing, an extremely fast MPPT controller improves the energy yield by up to 30 % compared to PWM charging controllers and by up to 10 % compared to slower MPPT controllers.In addition, the 100/30 features several other innovative technologies such as the VE.Direct communication port.
Programming, real-time data and history display
Modern Apple and Android smartphones, tablets, Macbooks and other devices can be connected via the integrated Bluetooth Smart Dongles and the MPPT app or the GX Color Control, for example. Please note that Bluetooth Smart Dongles and GX Color Control are separate items that are not included with the charge controller but can be purchased from us as an option.
Flexible charging algorithms
Fully programmable charging algorithm and eight pre-programmed algorithms that can be selected via a rotary knob.
Scope of delivery:
1x Victron Energy SCC110030210 SmartSolar MPPT 100/30 30A 12V/24V solar charge controller
1x operating instructions
