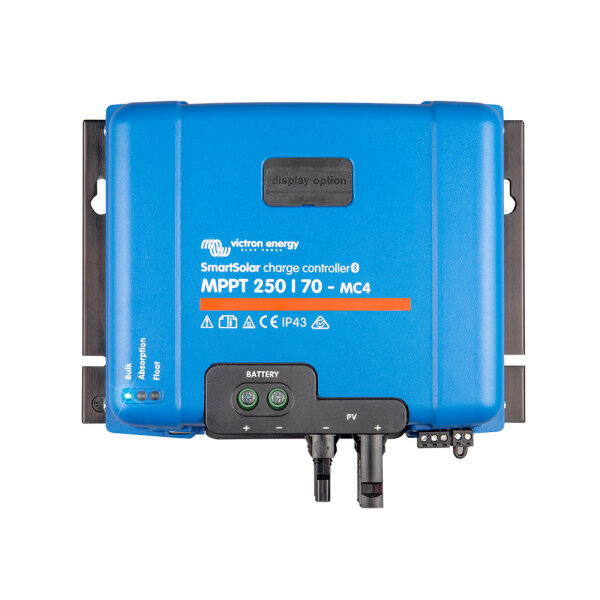

The Smartsolar MPPT 250/70-MC4 VE.Can from Victron Energy is part of the latest generation of smart charge controllers from the Dutch premium manufacturer. The controller processes a whopping 70A of solar power and can work flexibly with 12/24/36/48V batteries. Ultra-fast power tracking and automatic power point detection in partial shading are just two of the many highlights of this new device class. VE.Can is particularly suitable for systems with several solar chargers and can be used to synchronize up to 25 controllers.
In comparison to the BlueSolar series, the Bluetooth module is already permanently integrated in the controller of the Smartsolar family, making the smart dongle superfluous with this device. Another new feature is the optional LCD display, which can simply be attached to the SmartSolar 250/70-Tr VE.Can as required. The display then provides all the important information about the controller. If required, the MPPT WireBox-L Tr from Victron Energy is the ideal addition to your SmartSolar charge controller. It securely covers the cable entries and connection terminals of the controller, protecting them from external influences and contact.
Special product features
Ultra-fast MPP tracker
Automatic detection of the MPP voltage with partial shading
Fixed integrated Bluetooth module
Optional LCD display available
VE-Can, the solution for multiple controllers
Integrated VE.Direct & VE.Can data communication port for connection
Parallel operation with other VE.Can controllers possible
Adjustable constant charge voltage
Adjustable float charge voltage
Suitable for all AGM, GEL, lead-acid, calcium-calcium and calcium-calcium batteries;ure calcium-calcium and lithium batteries
Fully programmable charging algorithms
Integrated protection against battery polarity reversal
Multi-stage and adaptive charging algorithm
Remote switching on and off possible via 2-pin plug
Integrated temperature sensor
Programmable relay
Data communication via VE.Direct and Bluetooth module
Modern Apple and Android smartphones, tablets, Macbooks and other devices can be connected thanks to the permanently integrated Bluetooth module and the free Victron Connect APP. The app can then be used to configure many important functions of the SmartSolar controller. Of course, it also provides all important parameters such as the current solar yield in real time.
VE.Can: the solution for multiple controllers
With VE.Can or Bluetooth, up to 25 or 10 charge controllers can be connected to the SmartSolar controller. up to 10 charge controllers can be connected in series for synchronous charging and connected to a Color Control GX or another GX device.
Each controller can be monitored individually, for example on a Color Control GX and on the VRM website (VE.Can) or on a smartphone or iPad (Bluetooth)
Automatic detection of the maximum power point in the event of partial shading
In the event of partial shading, there may be two or more maximum power points (MPP) on the current-voltage curve. Conventional MPPTs tend to adjust to a local MPP. However, this may not be the optimum MPP. The innovative algorithm of the SmartSolar device will always maximize the energy yield by adjusting to the optimal MPP.
High-speed MPP tracker
Especially in overcast conditions, when light intensity is constantly changing, an extremely fast MPPT controller improves energy yield by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Comprehensive electronic protection
Protection against reverse battery connection
PV reverse current blocking
Protection against overheating of the device
Protection against short circuits
Protection against reverse PV connection
VE.Direct data communication port
VE.Direct in text mode transmits all important parameters to other devices connected to the charge controller every second and thus offers the option of communicating with additional GX Color Control system panels. The VE.Direct connection is intended for products where full Canbus integration (VE-Direct) would be too expensive.
Technical data
Nominal charging current 70A
Maximum PV open-circuit voltage: 250V
High maximum efficiency of 99%
Maximum PV power: 12V 1000W / 24V 2000W / 48V 4000W
Protection class IP 43 (electronic components) and protection class IP 22 (connection area)
Weight: 3kg
Dimensions: 185 x 250 x 95 mm
Scope of delivery
1x Victron SCC125070421 SmartSolar MPPT 250/70-Tr 12V 24V 36V 48V 70A charge controller
1x operating instructions
