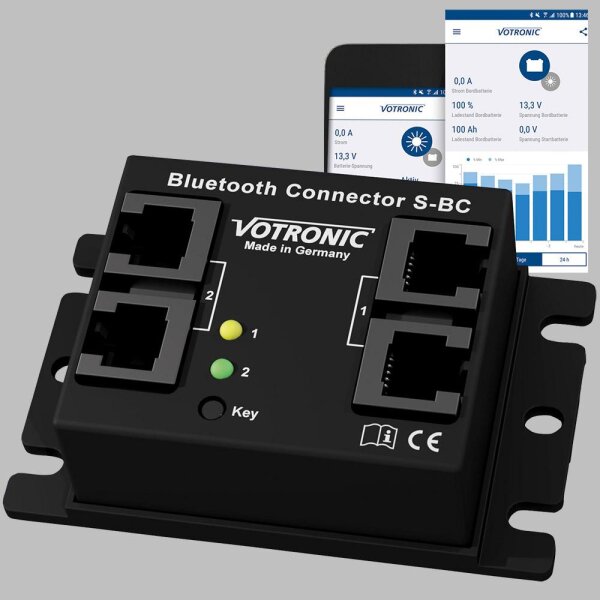

The Votronic Energy Monitor consists of a special communication module (Bluetooth Connector S-BC), which in conjunction with a Votronic Solar loader (from 2013) with LCD solar computer S and/or the LCD battery computer S or VPC Jupiter With Smart Shunt, the values that are displayed on the corresponding display also transmit to a mobile device via Bluetooth. The required app for Android or iOS is available free of charge in the Google Play Store or iOS App Store.
The connection of the Bluetooth Connector S-BC is very simple. It is simply stuck using the modular cable in the scope of delivery between the Votronic Solar loader and the LCD solar computer S or between the Smart Shunt and the LCD battery Computer S or VPC Jupiter.
The device has two inputs and outputs each, so that 1 solar controller with LCD solar computer and 1 smart shunt with LCD battery computer or VPC Jupiter can be connected together to a communication module.
In this way, the entire information of the on-board battery, such as voltage, charging or discharge flows and the remaining capacity, as well as all data from the solar system can be easily read via the cell phone or tablet. In addition, the most important data is logged, graphically prepared and are saved for a longer period of time. Even the output as a CSV file for your own analysis purposes is possible. Of course, the Bluetooth Connector S-BC can also be installed at any time.
The Bluetooth Connector S-BC is compatible with the following devices:
-Votronic solar loader in SR and MPP technology from 2014 (series number 14VXX.XXXXX)
- Battery charger of the type VBCS triple
- LCD battery computer S with smart shunt (all versions)
- VPC Jupiter with Smart-Shunt (all designs)
Technical specifications
| Device type |
Bluetooth Connector S-BC |
| Item No. |
1430 |
| Dimensions (BXTXH) in [mm] |
75 x 47 x 24 |
| Weight in [g] |
37 |
| Test mark |
CE, e-test (EMV/car directive) |
| Ambient conditions, humidity: max. 95% room moisture, not condensing |
| Scope of delivery: operating instructions, 2x control line 6-pin 1 m long |
