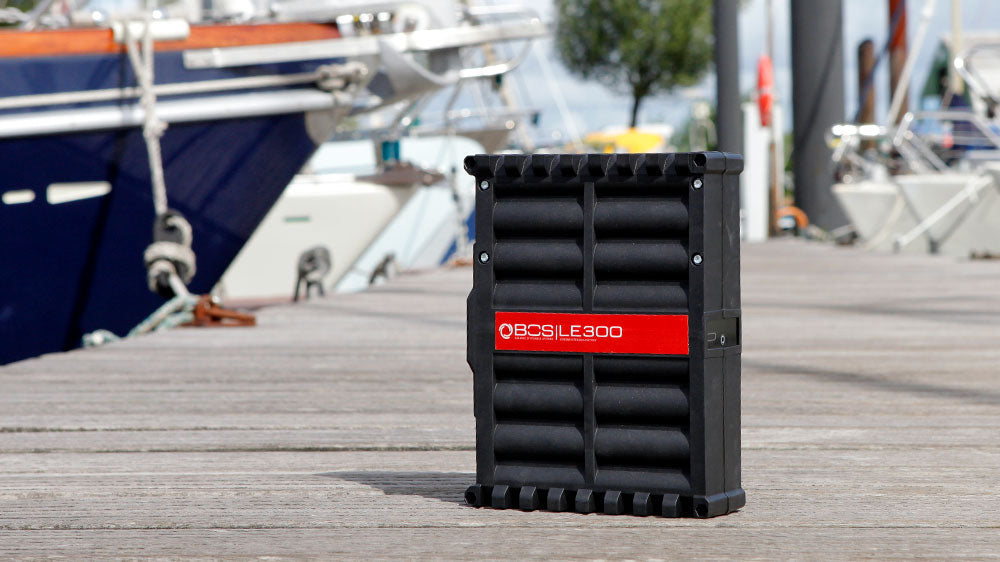

THE LE300 SMART BATTERY SYSTEM IS A LITHIUM UPGRADE TO INCREASE THE CAPACITY AND PERFORMANCE OF THE LEAD BATTERY, AS WELL AS TO IMPROVE THE EFFICIENCY AND LIFE OF THE OVERALL SYSTEM.
The lithium backup battery handles most charging cycles while the lead acid battery works as cheap backup storage. The lead battery is charged with a higher priority, with the lithium battery taking over the excess energy. When discharging, the lithium battery is primarily discharged. This means that the service life of the lead battery is significantly extended. The LE300 detects the lead-acid battery voltage and automatically starts supporting the lead-acid battery with a maximum current of 12.5A. Larger loads are supplied by the lead acid battery and the lithium battery in parallel, which means that less current is drawn from both batteries.
All advantages at a glance
- Plug & Play > Simple connection of two cables
- Flexible capacity adjustment by simply plugging individual modules together.
- Use of existing lead charge controllers possible.
- Performance optimization of the battery system through priority charging of the lead battery and preferential discharge of the lithium battery
- The performance of the lithium battery and the cost advantage of the lead battery are combined.
- Slim and lightweight design with variable mounting options.
- Integrated heating system.
