Description
Actisense NMEA 2000 distribution box - QNB-1, with 6 cable glands for open cable ends, status LED, with power supply
The QNB-1-PMW version is equipped with six standard NMEA 2000 M12 (micro-fit) connectors, enabling "plug and play" connections for quick and easy installation. A Raymarine STNG backbone can be connected to one side of the QNB-1 to combine standard NMEA 2000 with STNG without the need for adapter cables. The QNB-1 version is equipped with screw terminals to allow for the installation of cables of custom lengths. This is a great option for combining standard NMEA 2000 devices with Raymarine STNG devices.
- High-quality NMEA 2000 barrier strip connectors
- Diagnostic LEDs
- Uses standard ATO fuses
- One unit offers six NMEA 2000 derivations
- Split power supply for longer networks
- Separate fuses for the split power supply offer a simple way to isolate network segments.
- Easy installation in mini and micro networks using large-diameter cables
- Easy mixing and matching of NMEA 2000 with Raymarine STNG on opposite sides
Trouble-free NMEA 2000® backbone connections.

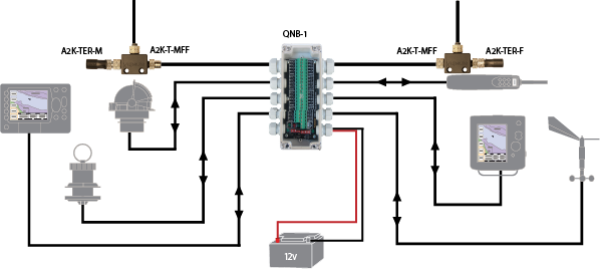

The QNB-1 and QNB-1-PMW offer alternatives to multi-connectors, thus reducing the cost of NMEA 2000 cabling. They are perfectly suited for areas with high device density, as they allow for the connection of six branches.
The QNB-1-PMW version is equipped with six standard NMEA 2000 M12 (micro-fit) connectors, enabling "plug and play" connections for quick and easy installation. A Raymarine STNG backbone can be connected to one side of the QNB-1 to combine standard NMEA 2000 with STNG without the need for adapter cables. The QNB-1 version is equipped with screw terminals to allow for the installation of cables of custom lengths. This is a great option for combining standard NMEA 2000 devices with Raymarine STNG devices.
The LEDs inform the installer during setup and indicate the presence of data, the energy status, the reverse of the power supply, and the condition of the fuses.
Features- High-quality NMEA 2000 barrier strip connectors
- Diagnostic LEDs
- Uses standard ATO fuses
- One unit offers six NMEA 2000 derivations
- Split power supply for longer networks
- Separate fuses for the split power supply offer a simple way to isolate network segments.
- Easy installation in mini and micro networks using large-diameter cables
- Easy mixing and matching of NMEA 2000 with Raymarine STNG on opposite sides
| Electric | |
| Supply voltage | 10-35V DC |
| Supply current, supply voltage 12/24V (no load) | 10mA |
| Micro cable secured | 8A |
| Mini cable fused | 16A |
| Power Polarity LED | Red = Incorrect, Green = Correct |
| NMEA 2000 connection input/output | |
| QNB-1-PMW drop connections | M12 socket (A-coded) |
| QNB-1-GLA NMEA 2000 connector | 5-way screw terminal, 5.08mm screw spacing |
| M20 screw connection clamping range | 6 - 12 mm |
| Data LED | Blinks when data is detected on the network. |
| Mechanically | |
|
Housing material |
Polycarbonate - Light Grey |
| Lid material | Polycarbonate - Clear |
| Sealing material | EPDM synthetic rubber |
| M16 stuffing box clamping area | 4.5 - 10 mm |
| M20 stuffing box clamping area |
6 - 12 mm |
| Dimensions | 160mm (L) x 132.4mm (W) x 80mm (H) |
| Weight PMW variant | 440g |
|
Weight of GLA variant |
360g |
| Approvals & Certifications | |
| Operating temperature | -20 to +55 °C |
| Storage temperature | -30 to +70 °C |
| humidity | 93% at 40°C |
| IP protection rating | IP66 |
| guarantee | 3 years (5 years with registration) |
|
NMEA 2000 certified |
|
