Description

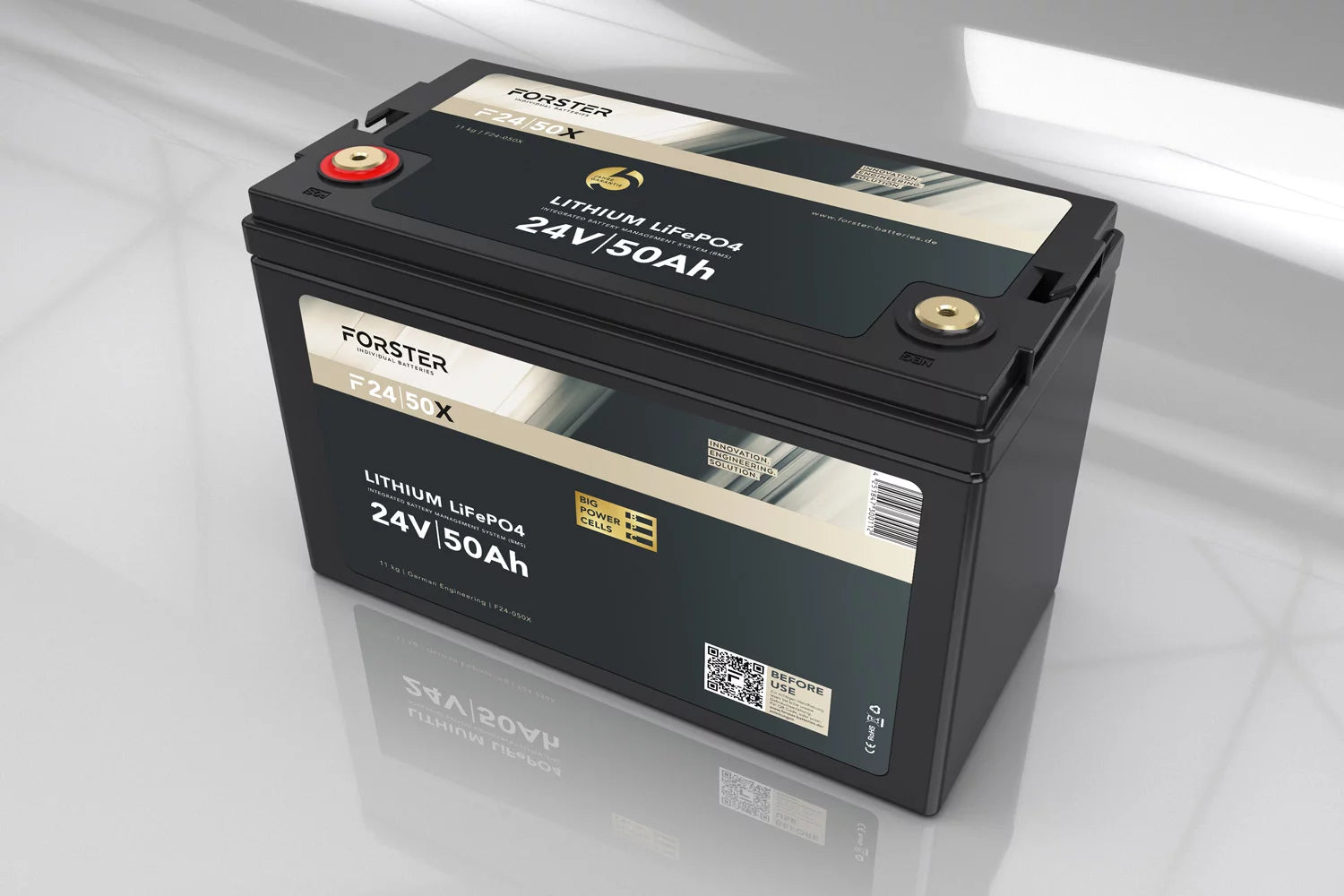

Lithium Premium series
The highest quality and reliability for almost all areas of application, whether caravan, marine or energy storage. Latest cell technology, optimized
BMS-2.0 control and monitoring set the standard for maximum performance and service life. Optimal monitoring and control of the
Measuring and consumption values possible by measuring shunt and Bluetooth.
Lifepo4

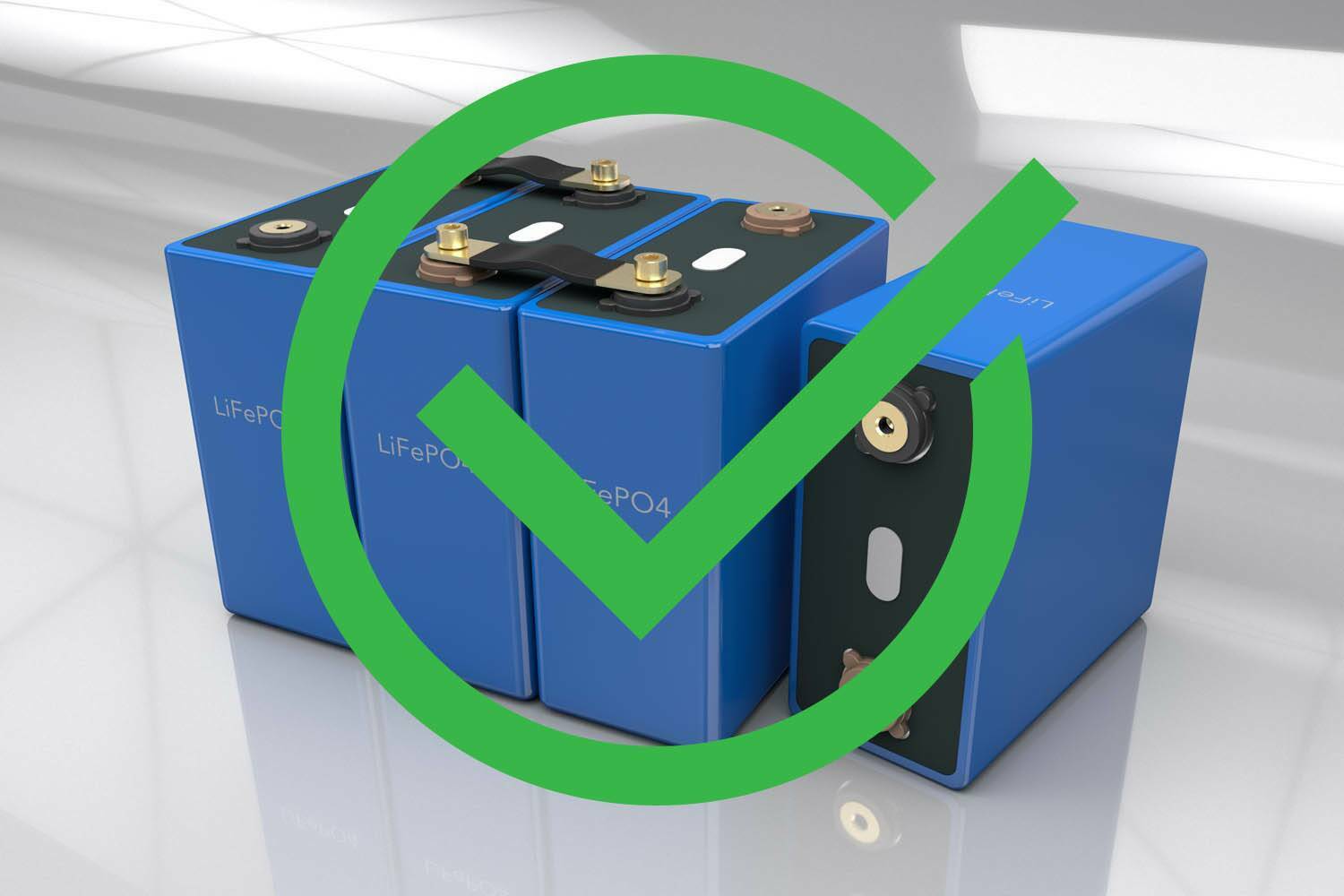

Big Power Prismatic Cells (BPC)

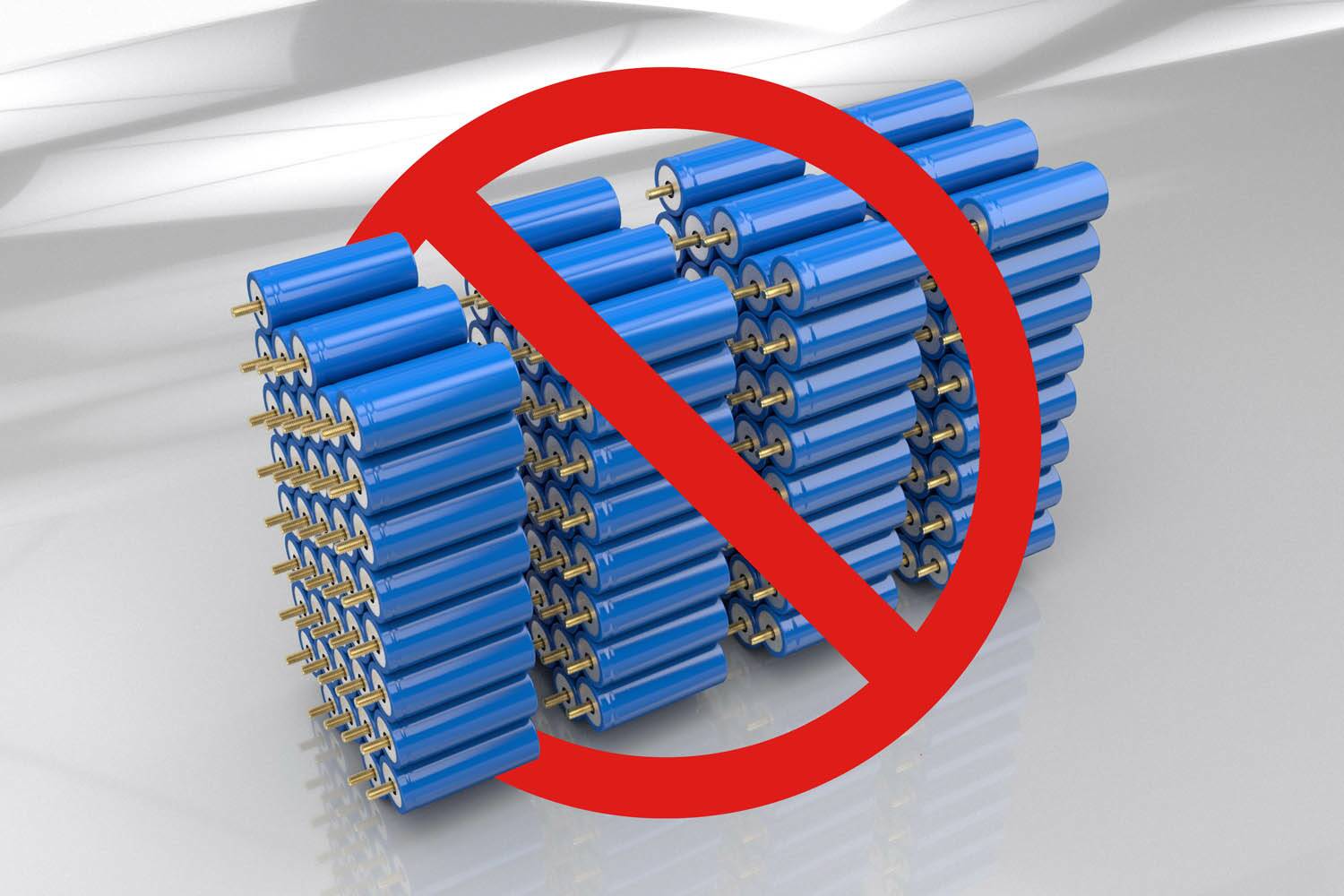

In contrast to conventional batteries, which from many, small togetherness
Connected cells exist, Forster relies on a few larger battery cells.
The minus of complexity brings a plus of performance, service life and
Security.
Maximum use of space
Few cell connectors
Less weight
Quick assembly
High security and service life
High reliability
200a Hochlast Power Battery Management System (BMS)
A battery management system monitors and controls the individual cells
a battery and protects them from damage. The BMS also controls
The output power, which with our power BMS at 200A permanent current
and 400A top current is located.
Important functions of the BMS:
Overload protection
Deep discharge
Overvoltage protection
Active cell balancing
Complete charging control
Multi-Charge fashion (MCM)
Temperature protection of the BMS
Short -circuit
E i n s at z: caravan, motorhomes, marine, electric drive, solar and wind
Generator memory, U.S. power supply, energy storage
The highest quality and reliability for almost all areas of application, whether caravan, marine or energy storage. Latest cell technology, optimized
BMS-2.0 control and monitoring set the standard for maximum performance and service life. Optimal monitoring and control of the
Measuring and consumption values possible by measuring shunt and Bluetooth.
Lifepo4
Big Power Prismatic Cells (BPC)
In contrast to conventional batteries, which from many, small togetherness
Connected cells exist, Forster relies on a few larger battery cells.
The minus of complexity brings a plus of performance, service life and
Security.
Maximum use of space
Few cell connectors
Less weight
Quick assembly
High security and service life
High reliability
200a Hochlast Power Battery Management System (BMS)
A battery management system monitors and controls the individual cells
a battery and protects them from damage. The BMS also controls
The output power, which with our power BMS at 200A permanent current
and 400A top current is located.
Important functions of the BMS:
Overload protection
Deep discharge
Overvoltage protection
Active cell balancing
Complete charging control
Multi-Charge fashion (MCM)
Temperature protection of the BMS
Short -circuit
E i n s at z: caravan, motorhomes, marine, electric drive, solar and wind
Generator memory, U.S. power supply, energy storage
| Data / order no.: | F24-050X |
| EAN | 4251847300112 |
| capacity | 50Ah |
| Replaced lead-gel-agm battery | 24V/100AH |
| Nominal voltage | 25.6V |
| Energy content | 1280Wh |
| Operating voltage | 21.0V - 29.2V |
| Application in parallel circuit | Yes, any number of the same type possible in parallel! |
| Application of series circuit | Yes, max. 48V |
| Cell technology | Lithium lifepo4 |
| Cell type | BPC BIG-Prismatic-Power high-load cell-gradeaa |
| Loading programs | CCCV / iu / iuou / lead acid |
| Laddling tension | 28.4 - 29.2V |
| Preservation | 26.6 - 27.6V |
| Maximum charging current | 50a |
| Recommended charging current | 25a |
| Max.entladestrom / 5 sec. | 200a |
| Permanent entertainment current | 100a |
| Battery shutdown | 21.0V |
| BMS Battery Management System | integrated |

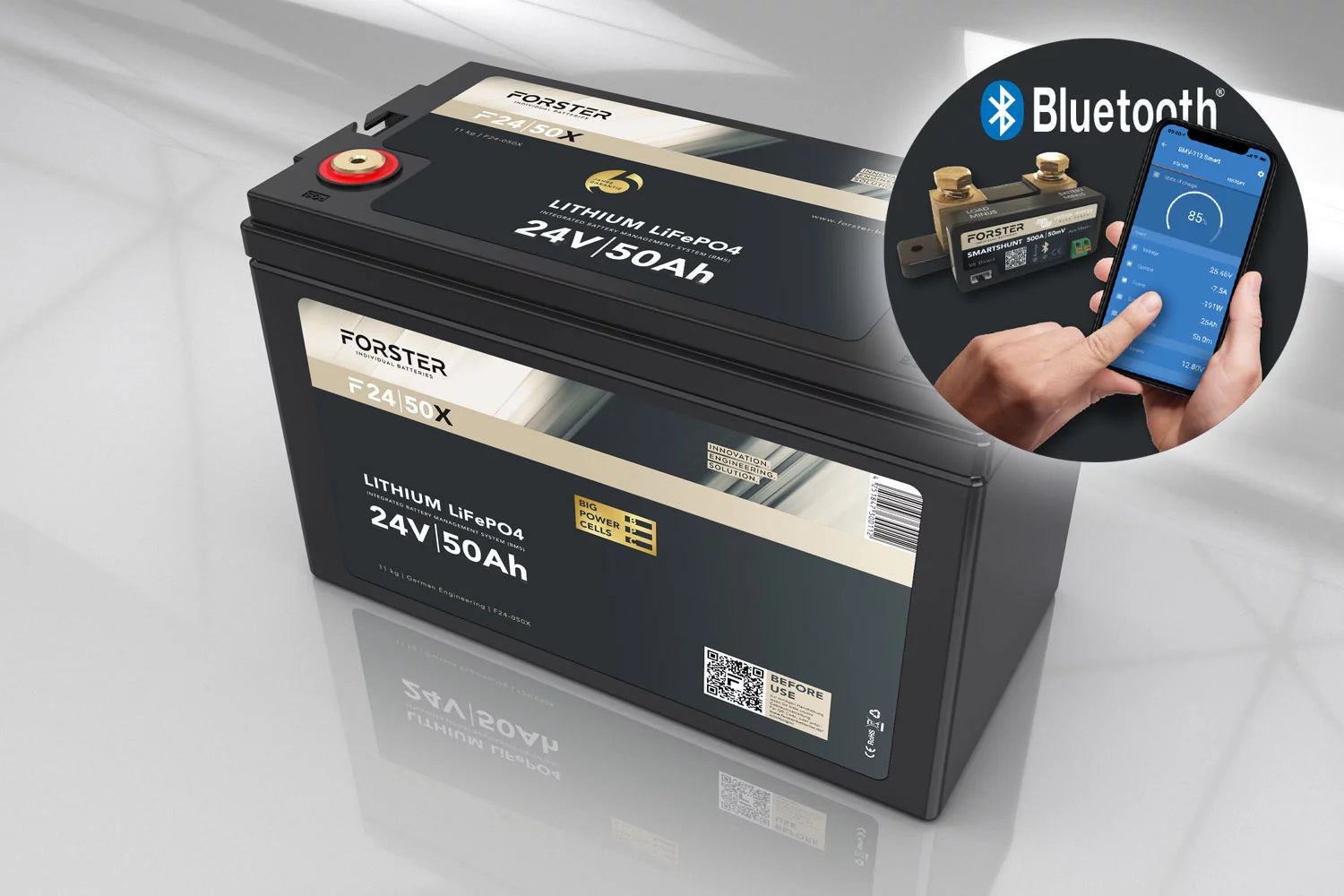

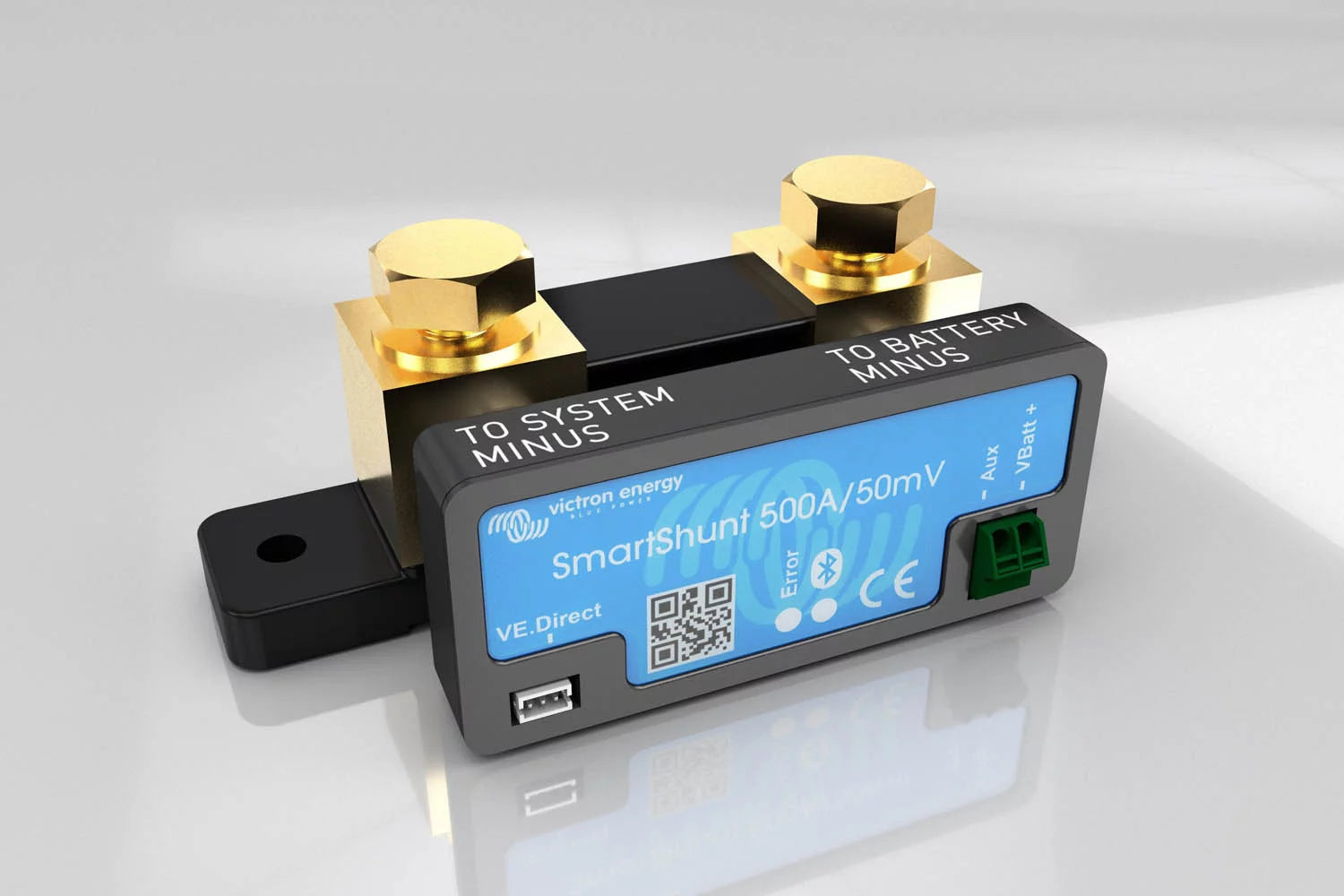

| Remote monitoring optional | Optionally possible with 500a Bluetooth measurement shunt and free app |
| Remote monitoring/measurement shunt integrated | F24-050XB |
| Protection class | IP67 |

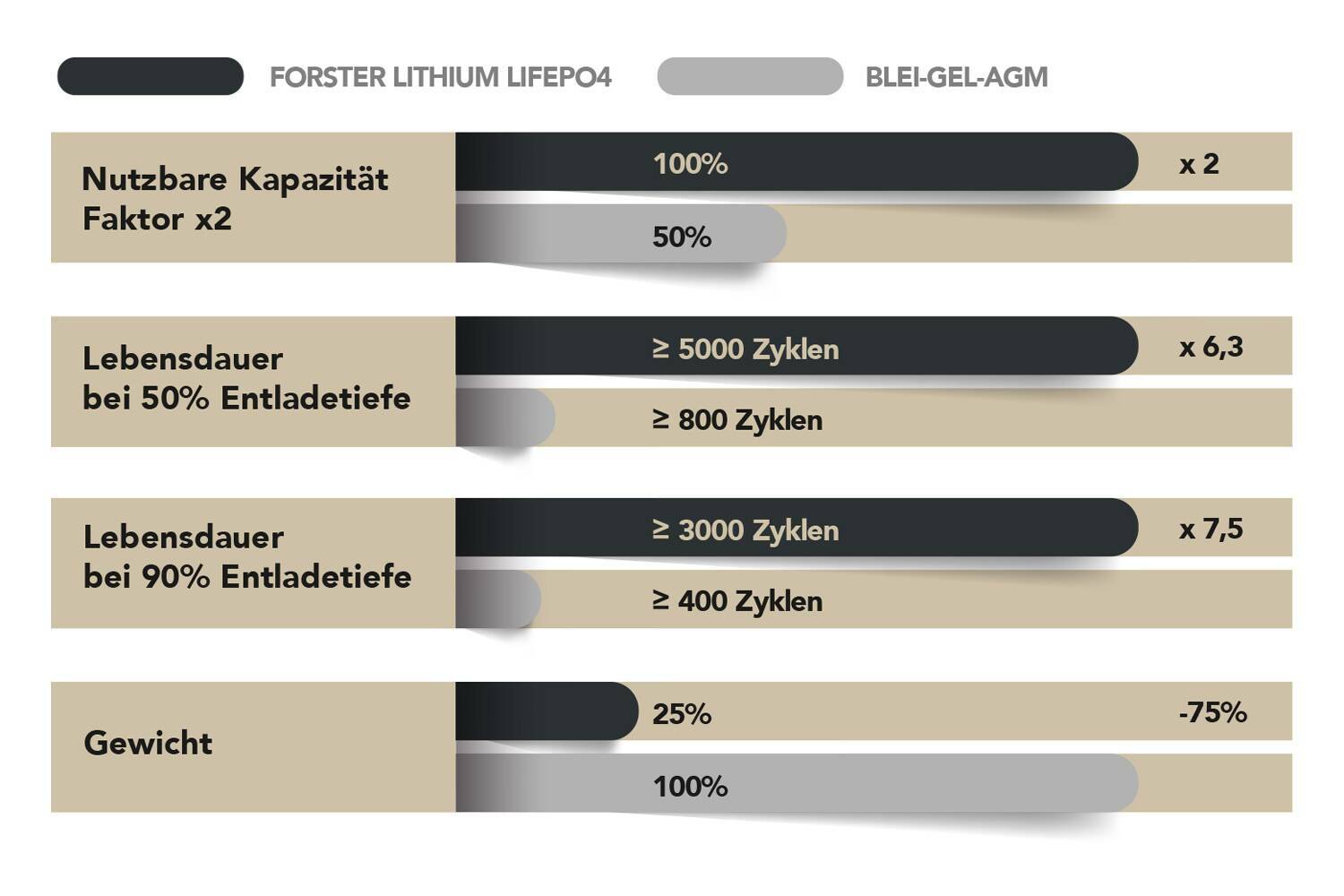

| Cycles / lifespan at 50% DOD | >6000 |
| Cycles / lifespan at 80% DOD | >4000 |
| Cycles / lifespan at 90% DOD | >3000 |
| Temperature when charging | 0 ° C to +60 ° C / below 0 ° C The charging current is automatically reduced by "Cell-Frost-Control" in the BMS |
| Temporariness in the event of discharge | -20 ° C to +60 ° C |
| Recommended storage temperature | -10 ° C to 30 ° C |
| storage | 80 - 100% loaded / Load the battery every 6 months if not used, battery |
| Self -discharge | 1 - 2% / month |

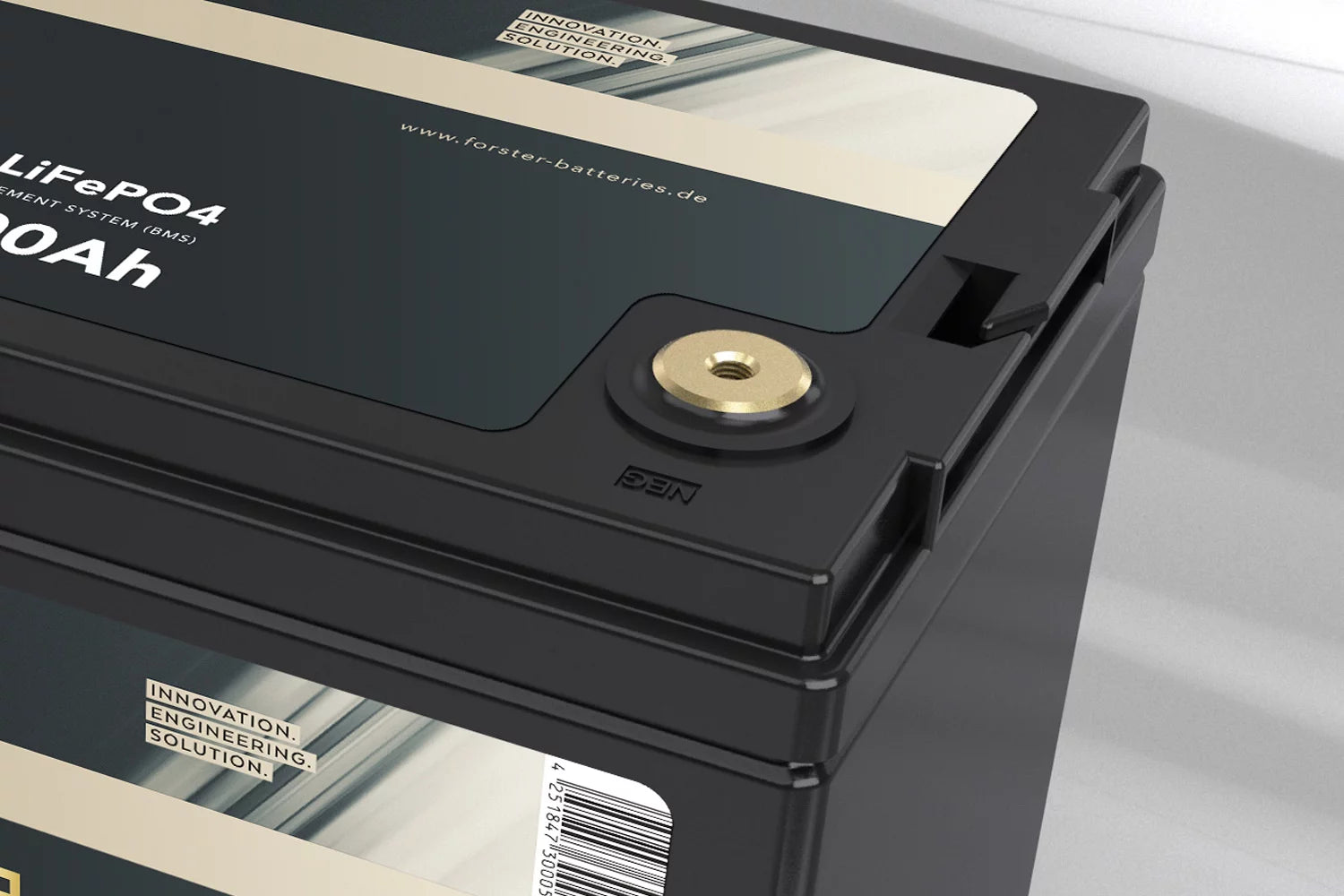

| Connection | M8 |
| Pluspol arrangement | front left |
| Final pole | M8 interior thread |
| Preparation Shunt assembly | n/a |
| Emergency cutter installed | n/a |

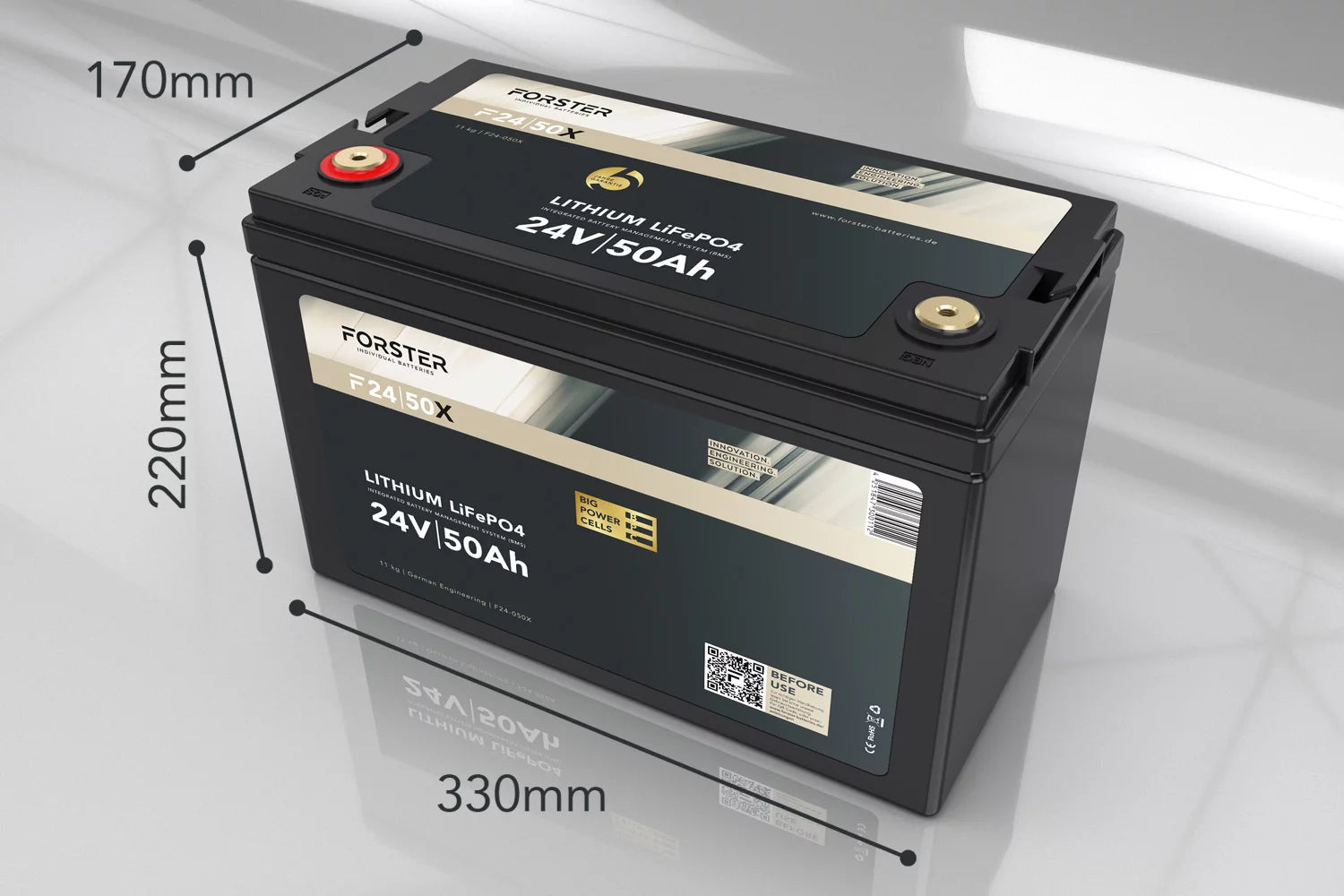

| Mass | 330 x 170 x 220 mm |
| Installation position | arbitrarily, standing, lying, side, upright, head over |
| Canbus interface | n/a |
| Weight | 11.0kg |
| guarantee | 8 years |
| Certification | UN38.3 | MSDS | CE | Rohs | ECE-R10 |
