Victron Orion 12/24-10

Victron EnergySKU: ORI122410020


Due to the holidays and the subsequent inventory, there may be delays in delivery times. Parcel deliveries will be made until December 23 and between the holidays, while freight deliveries will be possible in isolated cases until December 23 and again from January 7, 2026. We apologize for any inconvenience and thank you for your understanding.

Price:
Sale price€66,30 EUR Regular price€78,54 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

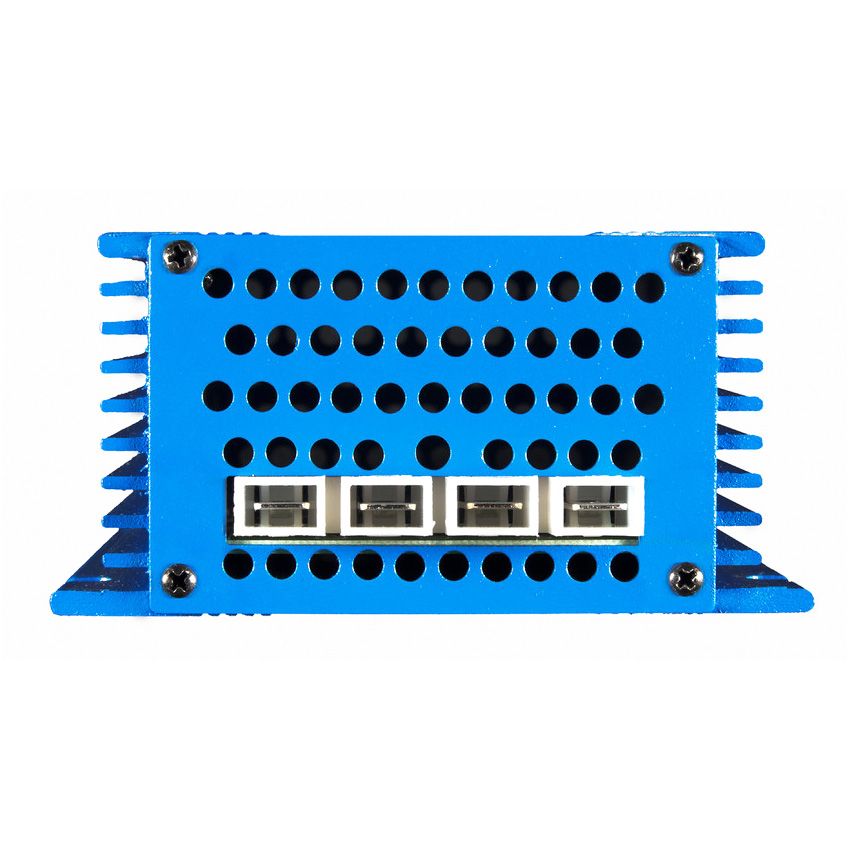

The Victron Orion 12/24-10 is a modern DC-DC converter that provides a regulated DC voltage, ensuring trouble-free operation of your DC devices. The unit converts 12V DC to 24V DC and delivers a constant continuous current of 10A, equivalent to 240W. Unlike its smaller counterparts, this model features adjustable output voltage via a potentiometer. The adjustable output voltage range is 20-30V. Furthermore, the 12/24-10 can be used for battery charging and can be connected in parallel with other compatible units to increase the output current.

Features:
- 12V DC operating voltage, adjustable output voltage 20-30V
- can be connected in parallel with similar devices to increase performance
- can be used for buffer charging
- remotely controllable
- Wide input voltage range: 9V – 18V
- 240W power at 10A continuous current
- max. 10A output current
- High efficiency of 95%
- only 0.4 kg weight
- 45x90x125

Orion family DC-DC converters generate a clean 24V output voltage and compensate for any line losses as well as fluctuations in battery voltage.

The remote-controlled on/off connection eliminates the need for a high-current switch in the input wiring. The remote-controlled on/off connection can be operated with a power-saving switch or via the motor's run/stop switch (see manual).
Thanks to its adjustable output voltage, it can be used as a battery charger. For example, to charge a 24-volt battery bank in an otherwise 24-volt system.
Can be connected in parallel to increase the output current.
Up to five identical devices can be connected in parallel.

Scope of delivery:
1x Victron ORI122410020 Orion 12/24-10 DC DC Converter 12V to 24V 10A 240W
