Copy of Victron Orion IP67 12/24-50 (1200W) #1

Victron EnergySKU: ORI241221226

Price:
Sale price€221,29 EUR Regular price€289,17 EUR

Tax included Shipping calculated at checkout

Shipping in 8-10 working days

Description

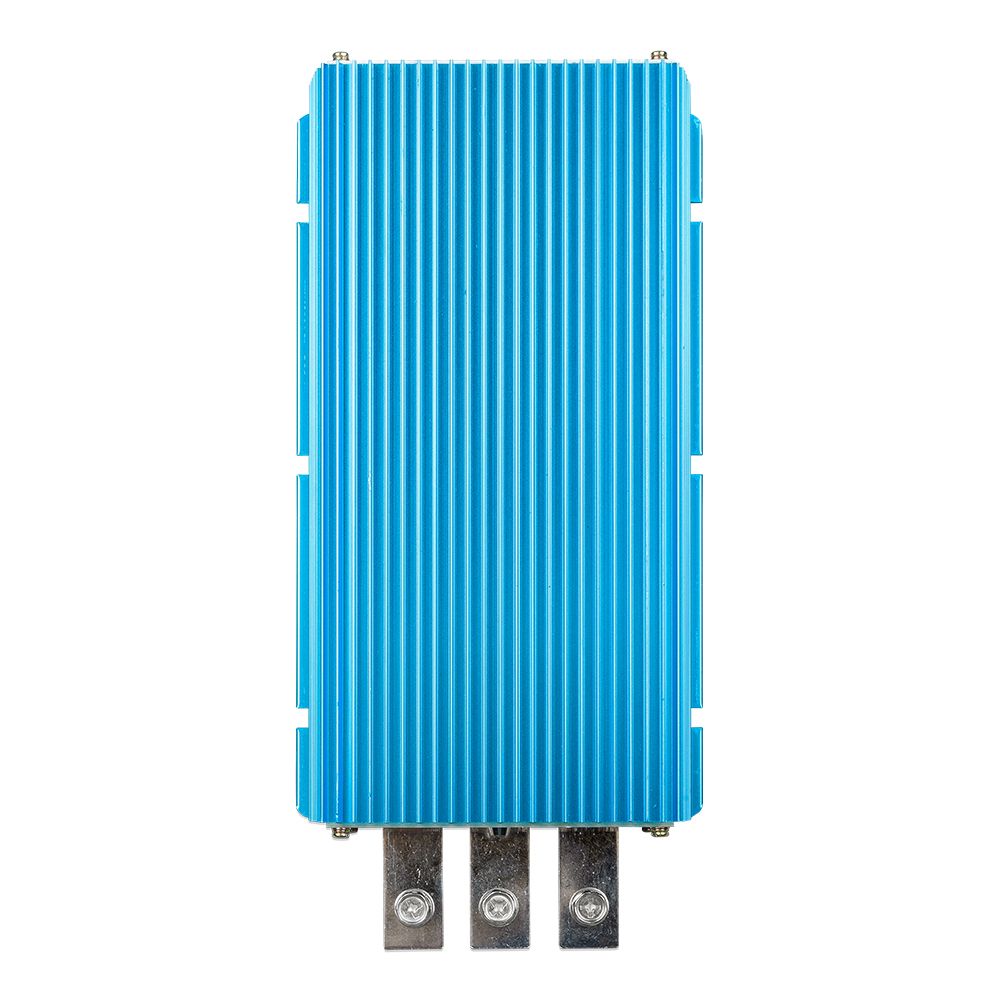

The Victron Orion IP67 12/24-50 (1200W) Is a modern DC DC converter and ensures a regulated DC voltage and thus the trouble-free operation of your DC consumers. The 12/24-50 converts 12V DC into 24V DC and delivers a constant permanent current of 50a which corresponds to an output of 1200W.

Characteristics
-
Fully covered
- waterproof, shock -supported and fire -retardant
- Long input and output cables
- Wide input voltage range
- overheating protection

Water, oil or Schmitz cannot damage the Orion IP67 DC-DC converter. The housing is made of cast aluminum and the electronics are covered with resin. Thanks to the 1.8m long cable, no additional extension cables are required in most cases. This supports a safe operation in your area in which the level of protection IP67 is required. With an input voltage range of 15 to 40 volts, a stable output is guaranteed during voltage surges or sub -tension, which are triggered by other devices that are connected to the same battery. Due to overheating protection, the converter can also be used in a hot environment like in a machine room.

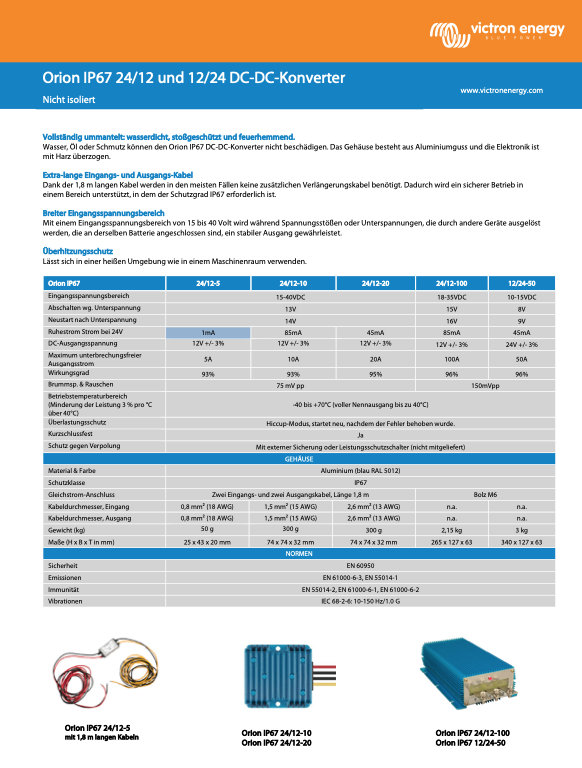

Technical data:
-
Input voltage area: 10-15 VDC
- DC output voltage: 24V ± 3%
- Max. Interruption -free output current: 50A
- efficiency: 96%
- Operating temperature range: -40 ° C - +70 ° C
- Protection class: IP67
- Weight: 3.05 kg
- Dimensions: 340 x 127 x 62 mm

    Scope of delivery:
    1x Victron Orion IP67 Konverter
    2x 1.8m long connection cable
    1x operating instructions
