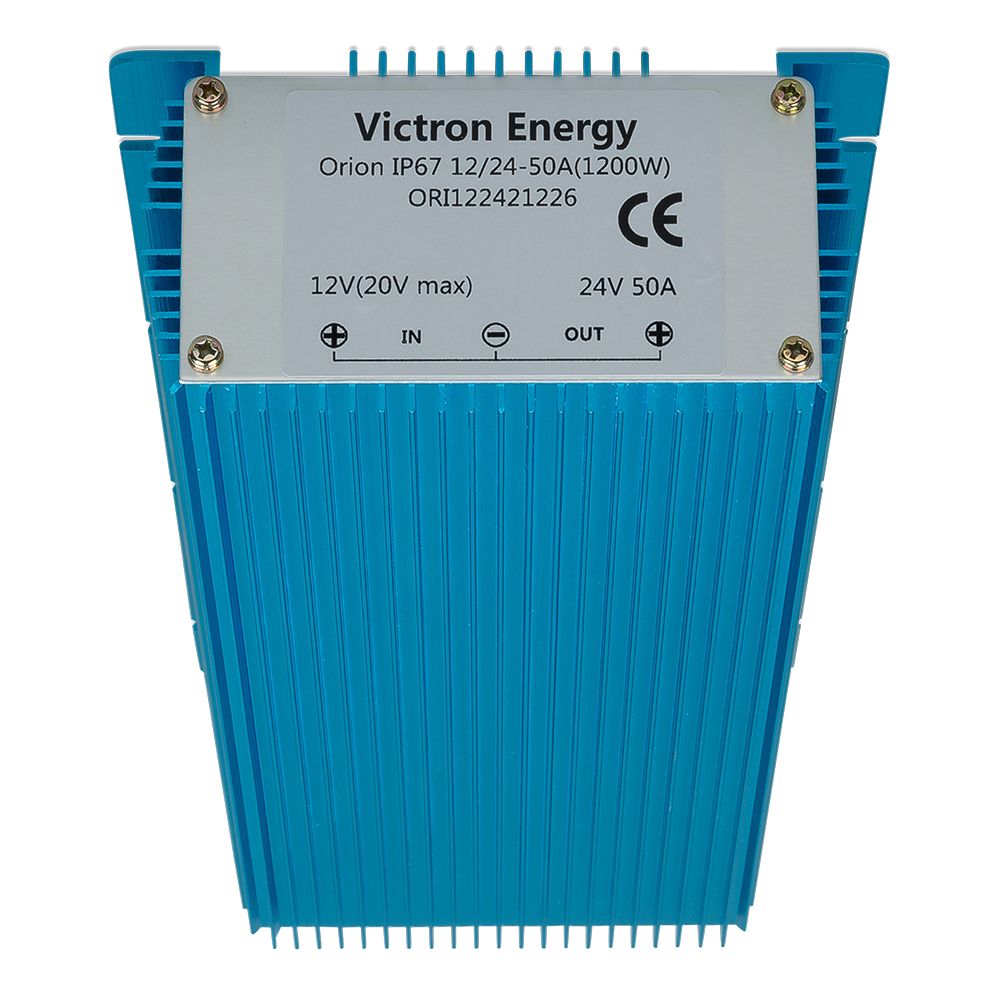

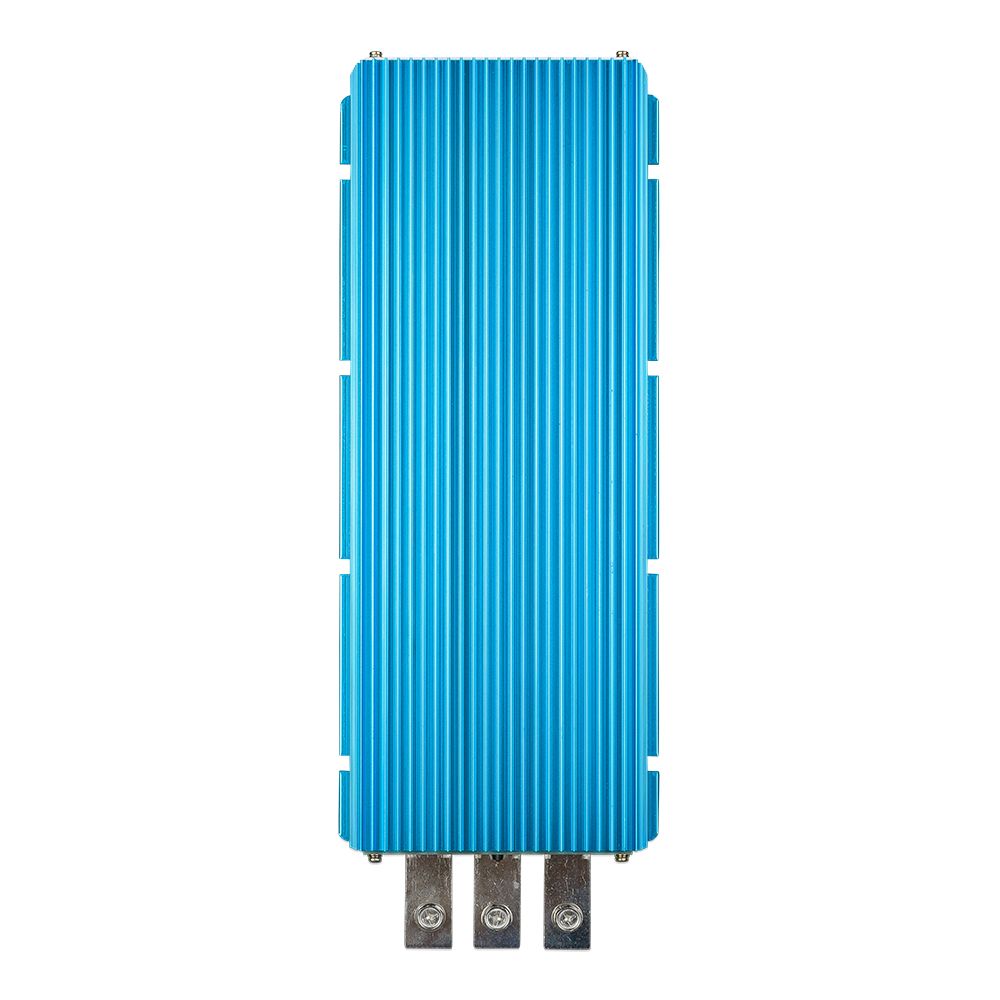

Victron Orion IP67 12/24-50 (1200W)

Victron EnergySKU: ORI122421226

Price:
Sale price€289,00 EUR Regular price€347,48 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

The Victron Orion IP67 12/24-50 (1200W) is a modern DC-DC converter that ensures a regulated DC voltage and thus the trouble-free operation of your DC devices. The 12/24-50 converts 12V DC to 24V DC and delivers a constant continuous current of 50A, which corresponds to a power output of 1200W.

Characteristics
-
Fully encased
- Waterproof, shock-resistant and fire-retardant
- long input and output cables
- Wide input voltage range
- Overheating protection

Water, oil, or grime won't damage the Orion IP67 DC-DC converter. The housing is made of die-cast aluminum, and the electronics are resin-coated. Thanks to the 1.8m long cables, additional extension cables are usually unnecessary. This ensures safe operation in areas where IP67 protection is required. With an input voltage range of 15 to 40 volts, a stable output is guaranteed even during voltage spikes or undervoltage caused by other devices connected to the same battery. Overheating protection allows the converter to be used even in hot environments such as machine rooms.

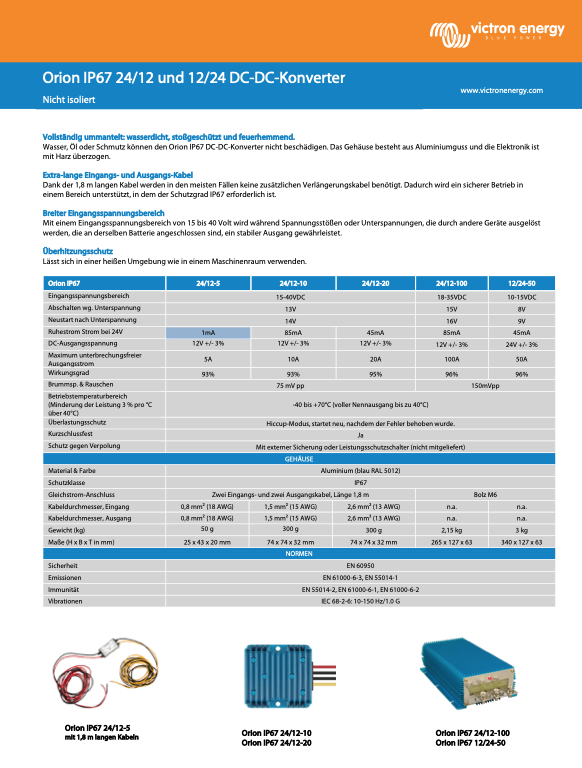

Technical data:
-
Input voltage range: 10-15 VDC
- DC output voltage: 24V ±3%
- Max. uninterruptible output current: 50A
- Efficiency: 96%
- Operating temperature range: -40°C to +70°C
- Protection class: IP67
- Weight: 3.05 kg
- Dimensions: 340 x 127 x 62 mm

    Scope of delivery:
    1x Victron Orion IP67 converter
    2 x 1.8m long connection cables
    1x Instruction manual
