Victron Orion 24/12-25

Victron EnergySKU: ORI241225020


Due to the holidays and the subsequent inventory, there may be delays in delivery times. Parcel deliveries will be made until December 23 and between the holidays, while freight deliveries will be possible in isolated cases until December 23 and again from January 7, 2026. We apologize for any inconvenience and thank you for your understanding.

Price:
Sale price€71,99 EUR Regular price€82,11 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

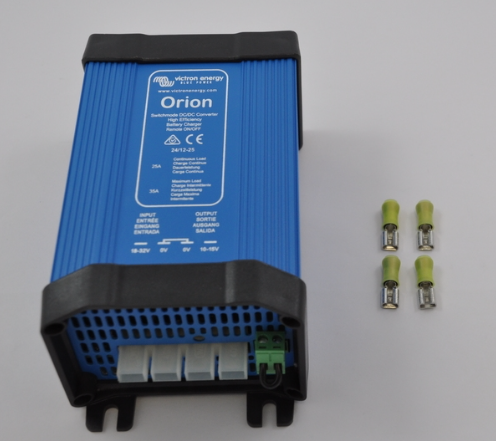

The Victron Orion 24/12-25A is a modern DC-DC converter that ensures a regulated DC voltage and thus the trouble-free operation of your DC devices.
The 24/12-25 converts 24V DC to 12V DC and delivers a constant continuous current of 25A, which corresponds to a power output of 300W. Compared to its smaller counterparts, this model features adjustable output voltage via a potentiometer on the device. The adjustable output voltage range is 10-15V. Furthermore, the 24/12-25 can be used for buffer charging your battery and can be connected in parallel with identical units to increase the output current.

Features:
- 24V DC operating voltage, adjustable output voltage 10-15V
- can be connected in parallel with similar devices to increase performance
- can be used for buffer charging
- remotely controllable
- Wide input voltage range: 18V – 36V
- 300W power at 25A continuous current
- max. 35A output current
- High efficiency of 96%
- 0.7 kg weight
- 65x86x160

Orion family DC-DC converters generate a clean 12V output voltage and compensate for any line losses as well as fluctuations in battery voltage.

The remote-controlled on/off connection eliminates the need for a high-current switch in the input wiring. The remote-controlled on/off connection can be operated with a power-saving switch or via the motor's run/stop switch (see manual).

- Thanks to its adjustable output voltage, it can be used as a battery charger. For example, to charge a 12-volt starter or auxiliary battery in an otherwise 24-volt system.
- can
be connected in parallel to increase the output current.
Up to five identical devices can be connected in parallel.

Scope of delivery:
1x Victron ORI241225020 Orion 24/12-25A DC DC Converter 24V to 12V 25A 300W

GPSR Information

Hersteller
Name: Victron Energy BV
Anschrift: The Palm 35
PLZ, Ort: 1351, JG Almere
Land: Netherlands
Email: sales@victronenergy.com
Web: https://www.victronenergy.com
