SIMARINE PICO

SimarineSKU: P201

Color: Black
mounting type: surface mounting
Price:
Sale price€244,70 EUR Regular price€285,00 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

Battery Monitor PICO from SIMARINE for monitoring batteries, consumers and tanks. With aluminum frame, integrated barometer, WiFi and free app for Android and iOS.

Display of max.: 6 battery banks, 6 battery voltages, 20 consumers or generators, 14 tank modules, 8 temperature sensors. (sensors are not included)

With the PICO , Simarine is setting new standards for marine battery monitors in terms of design, functionality, connectivity and ease of use.

Compatible with all SIMARINE shunts and modules.

The expandable architecture allows adding up to 20 SIMARINE shunts and modules to monitor all types of boats, yachts and caravans - from small to superyacht system with up to 6 battery banks, 14 tanks and 20 independent loads and generators.

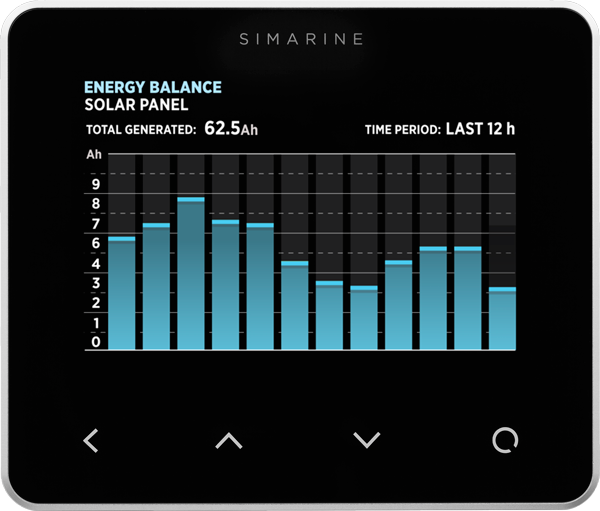

PICO 's display unit consists of a slim anodized aluminum body and thick Gorilla Glass with an anti-reflective coating that protects the optically bonded 3.5-inch high-contrast IPS LCD display. It is waterproof and dustproof and can be mounted both indoors and outdoors. The screen brightness is automatically adjusted using a light sensor. The device is operated with four water-tolerant CapSense buttons. The barograph provides accurate air pressure values, trends and history.

Free SIMARINE Android and iOS apps are available to connect your PICO to your smartphone via Wi-Fi. With the apps you can monitor all battery and tank data, upload history, edit and restore settings and even update the firmware with new features.
Choose the different colors and mounting methods in the menu.

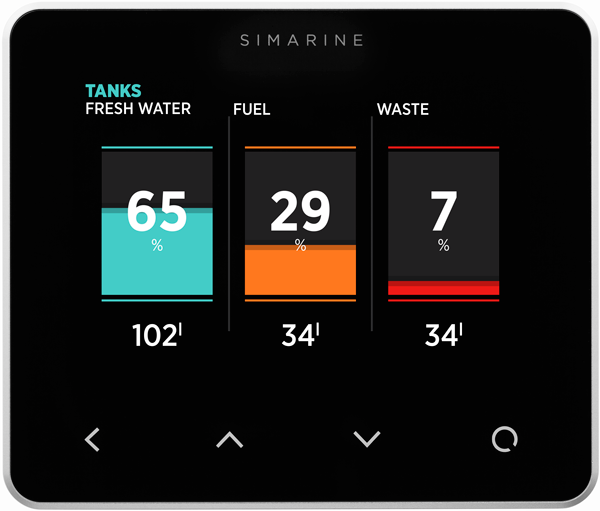

Battery Monitor PICO with integrated barometer to display (with optional modules):

  • Voltage monitor: 12V, 24V, 48V, 60V, 72V
  • 6 battery banks with real-time battery health
  • 14 tanks
  • 14 temperature sensors
  • 20 shunts for current measurement

Technical specifications

  • Operating voltage: 6 - 35 V
  • Power consumption at 12V:
    • operational, WiFi on, 100% backlight: 90 mA
    • operational, WiFi off, 70% Backlight: 35 mA
    • Standby, WiFi off, 0% Backlight: 18mA
    • Off, only data logger active: 5 mA
    • Dimensions display module: 97.5 x 83mm
