Victron Phoenix Smart IP43 Charger 12/30 (1+1) 120-240 V

Victron EnergySKU: PSC123051095

Price:
Sale price€325,41 EUR Regular price€471,24 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

The Victron Phoenix Smart IP43 Charger 12/30 (1+1) 120-240 V is a powerful, next-generation battery charger. Designed for 12 V battery voltage, the device offers a powerful 30 A main charging output as well as a 4 A secondary charging output for a starter battery.
With its integrated Bluetooth module, the Phoenix Smart Charger 12/30(1+1) IP43 fits perfectly into Victron's ever-growing Smart family, which can be seamlessly networked and centrally controlled via various methods. In addition to the Bluetooth module, a VE.Direct connection and a freely programmable relay are also available. The Smart Battery Sense can also be optionally connected to control battery temperature compensation. The proven five-stage charging algorithm and the ability to program your own charging algorithm make the Phoenix Smart Charger 12/30(1+1) IP43 a universally applicable, high-tech battery charger that can optimally charge virtually any battery type.

Perfect battery charger for boats and vehicles
Phoenix Smart battery chargers with (1+1) in their model name feature a main charging output with full charging current and a 4A auxiliary charging output for charging starter batteries. These models are therefore particularly suitable for mobile applications. Phoenix Smart models with (3) in their model name were developed specifically with the needs of the marine sector in mind and offer three full current outputs for charging three battery banks.

Highlights of the Phoenix Smart Charger 12/30(1+1) IP43
-
integrated Bluetooth module


- integrated VE.Direct connections
- 1x 30A main charging output and 1 additional secondary charging output for starter batteries
- automatic voltage compensation
- adaptive, five-stage charging algorithm
- variable constant voltage phase
- optimally charges all common battery types
- Prevention of damage caused by gassing thanks to BatterySafe mode
- reduced aging through storage with the storage mode
- also charges LiFePO4 batteries and can be connected to a BMS via optocoupler
- fully programmable charging algorithm
- Remote On/Off
- can be used as a power source

Technical features of the Phoenix Smart 12/30(1+1)
- Number of battery banks: 1+1 (1 main output with full power + 1x starter battery (max. 4A charge)
- maximum rated charging current: 30A, battery voltage: 12V
- high efficiency: 94%
- Protection class: IP43 (electronic components), IP22 (connection area)

Three integrated technologies for all-round healthy batteries
Variable constant voltage phase: always delivers the right amount of charge
When the battery is only slightly discharged (e.g., a yacht connected to shore power), a short constant voltage phase is selected to prevent overcharging. After a deep discharge, the constant voltage phase is automatically extended to ensure the battery is fully charged.

Preventing damage from excessive gassing: BatterySafe mode

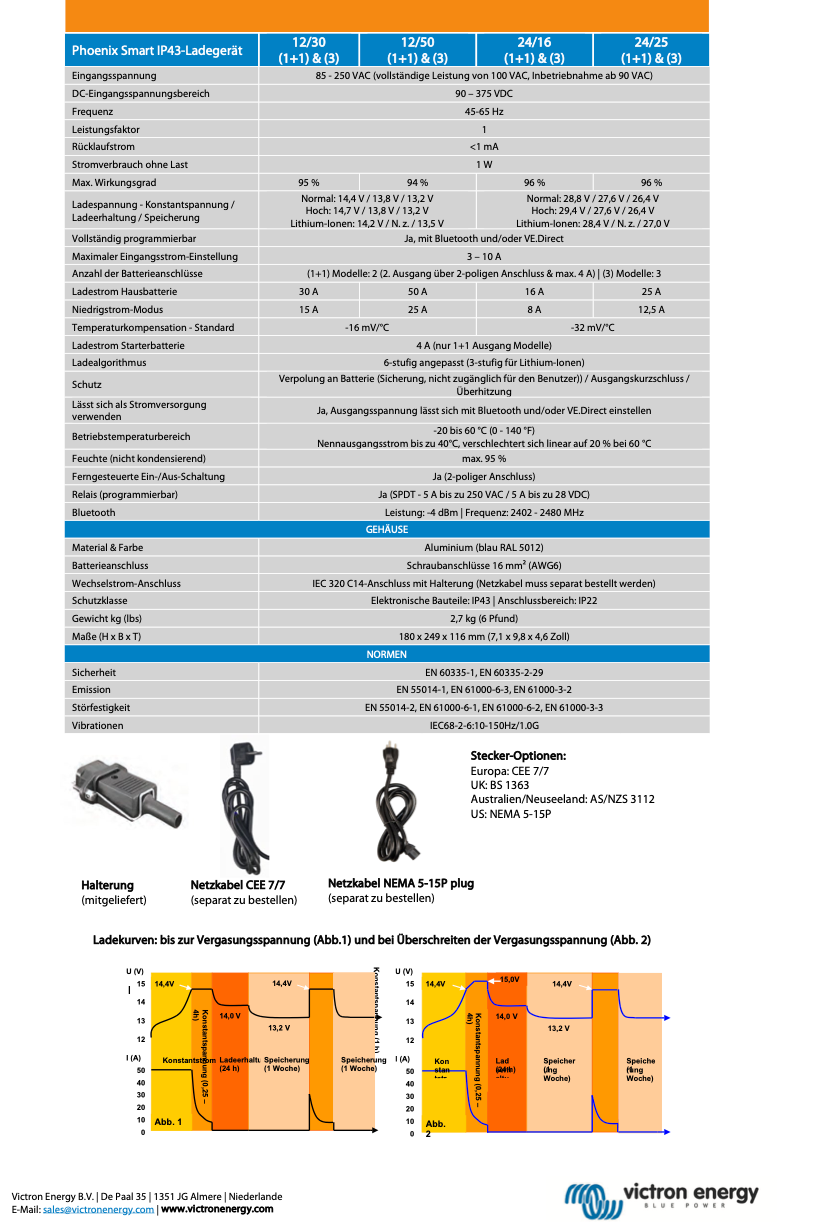

To shorten the charging time, the highest possible charging current was selected in conjunction with a high constant voltage. However, to avoid excessive gassing towards the end of the constant current phase, the charger limits the rate of voltage increase after the gassing voltage is reached (see also the graphics in the brochure).

Less maintenance and aging in idle state of the battery: the storage mode
Storage mode is activated whenever no discharge has occurred within 24 hours. In storage mode, the float charge voltage is then reduced to 2.2 V/cell (13.2 V for a 12 V battery) to minimize gassing and corrosion on the positive plates. Once a week, the voltage is increased to the gassing voltage level. This creates a type of equalization charge that prevents electrolyte stratification and sulfation—the two main causes of premature battery failure.

Perfect for LiFePO4 battery

The Phoenix Smart Charger 12/30(1+1) IP43 can be connected to an on/off control system by connecting a relay or open collector optocoupler output from a Li-ion BMS to the remote on/off port. Alternatively, voltage and current can be fully controlled via Bluetooth.

VE.Direct interface, Bluetooth and programmable relay
The Victron Phoenix Smart Charger 12/30(1+1) IP43 is ideal for a wired data connection to a Color Control panel, PC, or other devices thanks to the VE.Direct port. Also check out the VictronConnect app for Android and iOS, which you can use with any smartphone or tablet to wirelessly control and read your Phoenix Charger via Bluetooth. The programmable relay can also be programmed via the VE.Direct interface or a Bluetooth-enabled device to trigger an alarm or other events.

Required accessories
Please note that an AC connection cable is required to connect the Phoenix Smart Charger 12/30(1+1) IP43 to the power grid. This is not included in the scope of delivery.

Scope of delivery
1x PSC123051095 Victron Phoenix Smart Charger 12/30(1+1) IP43
1x AC cable clamp
1x instruction manual
