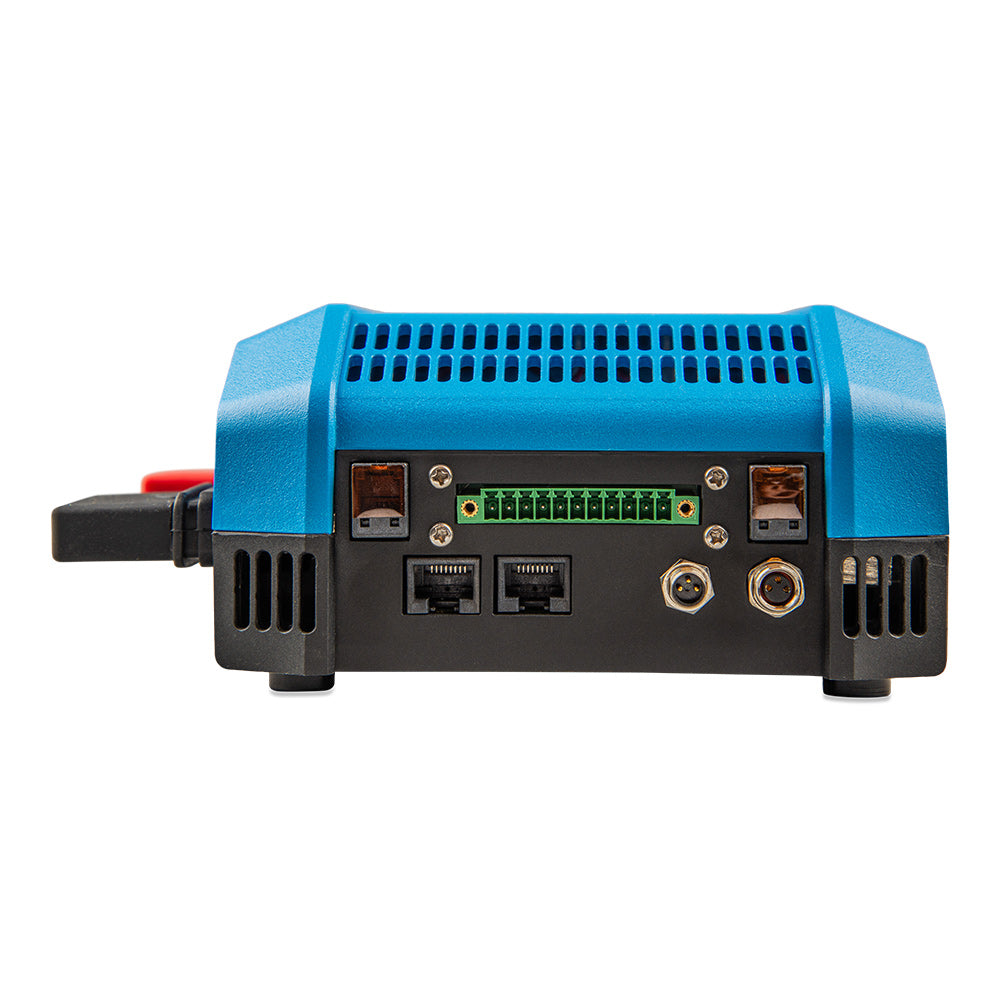

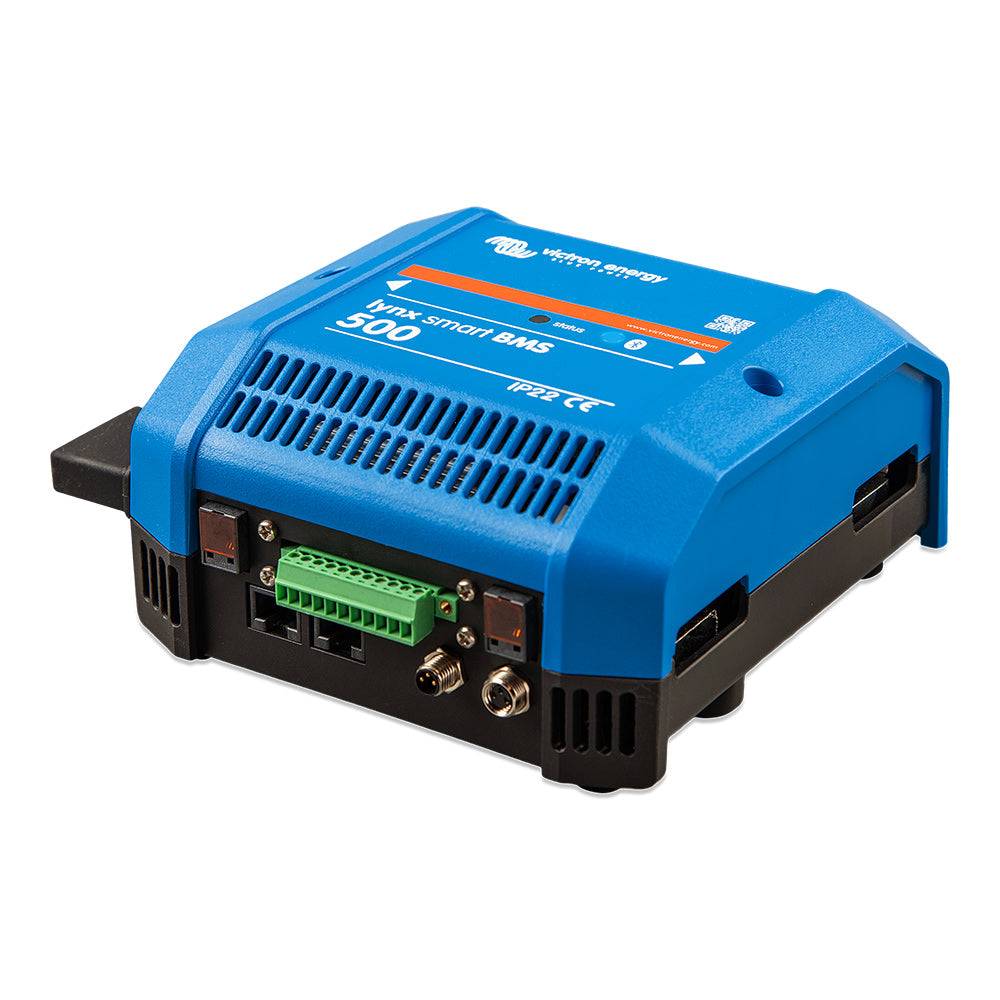

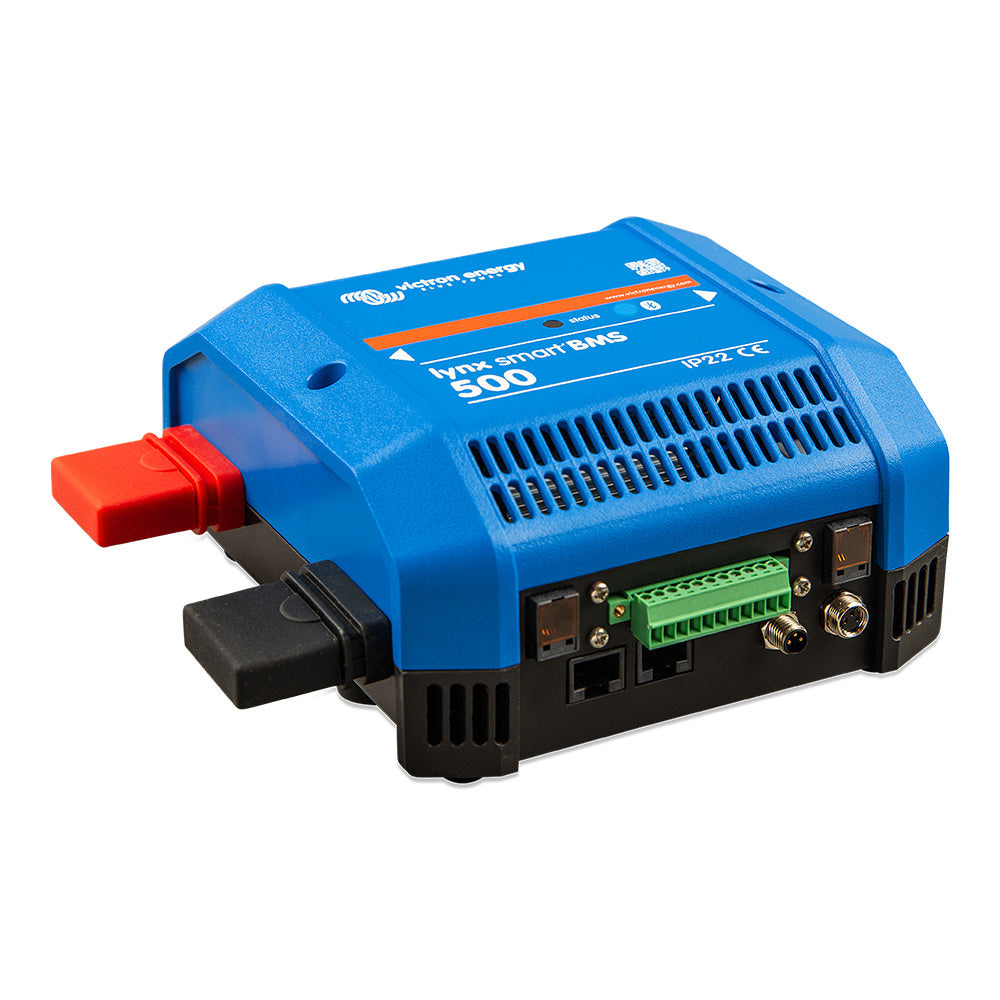

Victron Lynx Smart BMS 500 Battery management system

Victron EnergySKU: LYN034160200


Due to the holidays and the subsequent inventory, there may be delays in delivery times. Parcel deliveries will be made until December 23 and between the holidays, while freight deliveries will be possible in isolated cases until December 23 and again from January 7, 2026. We apologize for any inconvenience and thank you for your understanding.

Price:
Sale price€706,21 EUR Regular price€1.151,92 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

The Lynx Smart BMS from VICTRON Energy (MPN LYN034160200) is a special battery management system for lithium smart batteries from VICTRON. It contains a positive and a negative collective rail, a BMS, a circular switch and a battery monitor. The Lynx Smart BMS is part of the modular Lynx distribution system.

Characteristics

  • Built-in 500A control switch, for relapse
  • Battery guard with which the loading status is shown in percent and other data is displayed
  • Alarm relay: delivers a warning before the system switches off
  • Status and Bluetooth LED
  • Communication via Bluetooth with VictronConnect app
  • Communication via VE.CAN with GX device
  • Including two Ve.CAN RJ45 terminators

Technical data

  • Supply voltage area: 9-58 VDC
  • Supported system voltages: 12, 24 or 48V
  • Polation protection: yes
  • Main safety protection permanent current: 500A continuously
  • Top current strength of the main safety protection: 600A for 5 minutes
  • Electricity consumption in active mode: approx. 2.6W (200mA at 13V)
  • Operating temperature range: -40 ° C - +60 ° C
  • Protection class: IP22
  • Dimensions: 190 x 180 x 80 mm
  • Weight: 2 kg

The Lynx distribution system

The Lynx distribution system is a modular collective rail system that includes DC connections, distribution, securing, battery monitoring and / or lithium battery management.

The Lynx Distribution System consists of the following parts:

  • Lynx power in - A positive and negative collective rail with 4 connections for batteries or DC devices
  • Lynx distributor - A positive and negative collective rail with 4 secured connections for batteries or direct current devices together with security monitoring
  • Lynx shunt ve.can - A positive collective rail with space for a main system backup and a negative collective rail with a shunt for battery monitoring. It has Ve.CAN communication for monitoring and furnishing in a GX device
  • Lynx Smart BMS - for use with Victron Energy Smart Lithium batteries. It contains a positive collective rail with a protective switch that is powered by a battery management system and a negative collective rail with a shunt for battery monitoring. It has Bluetooth communication for monitoring and furnishing via the VictronConnect app and a VE.CAN communication for monitoring with a GX device and the VRM portal.



Scope of delivery:

1x Victron Energy Lynx Smart BMS (LYN034160200)

2x RJ45 VE.CAN final resistances

1x operating instructions

IP protection

IP22

Manufacturer

Victron Energy

Dimensions (LXBXH)

190 x 180 x 80 mm

Manufacturer part number

Lyn034160200

EAN

8719076047476
