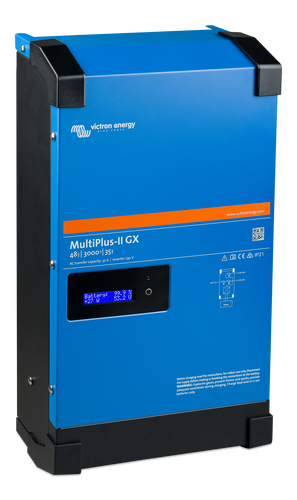

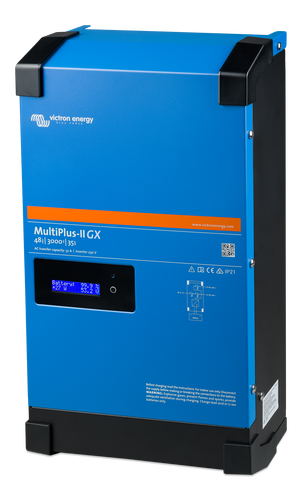

Victron MultiPlus II 48/3000/35-32 230V GX

Victron EnergySKU: PMP482306000

Price:
Sale price€559,17 EUR Regular price€846,09 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

The Multiplus-II 48/3000/35-32 GX from Victron Energy is a high-end device combination that combines classic Multiplus components with an external current sensor and integrated anti-islanding function. This extends the PowerControl and PowerAssist functions to 50 A and expands the potential application area to include ESS applications. The inverter module delivers a whopping 3000 W with non-linear loads and 2400 W with continuous linear loads. The 48 V battery charger is also very well proportioned with a 35 A charging capacity and is complemented by a 32 A transfer switch that allows for lightning-fast switching between the AC connections. Unlike the other devices in the series, the GX variants feature an integrated GX display with numerous additional connection options.

important features
- integrated GX control device with various communication ports
- PowerControl and PowerAssist – Increase grid or generator power
- Built-in anti-islanding function and connection option for external current sensor (optional)
- can be used as a backup device in grid-connected systems for power supply in case of power failures
- can be used in various ESS (Energy Storage System) applications
- ideal for professional shipping, yachts, vehicles and land-based, off-grid applications
- VE.Bus interface for parallel and three-phase operation, remote monitoring and system integration
- virtually unlimited power through parallel and three-phase operation
.- can be configured locally or remotely using VEConfigure software*

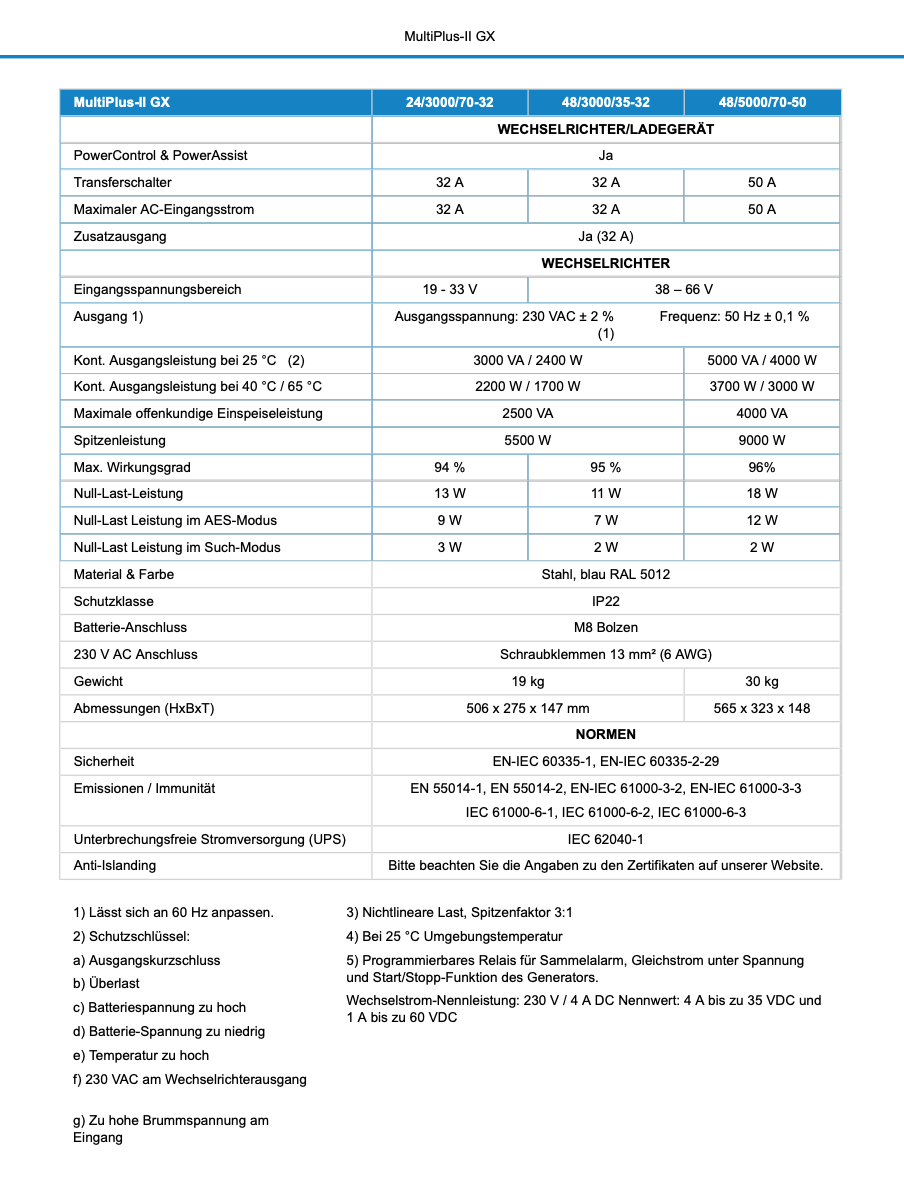

technical features
- 3000W power at non-linear load 2400W continuous load and 6000W peak power
- for 48 V battery voltage, 32 A transfer switch and 35 A battery charger
- Output voltage: 230 VAC, frequency: 50 Hz
- max. efficiency is 95%, protection class IP22
- always enough power thanks to PowerControl and PowerAssist

A maximum mains or generator current can be set on the Multiplus-II 48/3000/35-32 GX. The MultiPlus-II then takes other connected AC consumers into account and only uses the current that is still "left over" to charge the battery. This prevents the generator or mains connection from being overloaded (PowerControl function). The PowerAssist function takes the PowerControl principle to a new dimension. Load peaks often only occur for a limited period of time. In such a case, the MultiPlus-II immediately compensates for insufficient generator, shore power or mains power using energy from the battery. If the load is reduced, i.e. consumers are switched off, the then sufficient energy available can be used to charge the batteries.

Solar power : alternating current even in case of power failure
The device can be used in both off-grid and grid-connected PV systems, as well as other alternative energy systems. It can be used with both solar charge controllers and grid-tied inverters.

maximum flexibility thanks to two AC outputs
The main output ensures uninterrupted operation. In the event of a grid failure or an interruption in shore/generator power, the MultiPlus-II takes over power to the connected loads. The switchover occurs so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic devices is guaranteed. The second output only supplies power when AC power is available at the MultiPlus-II input. Loads that must not drain the battery, such as a water heater, can be connected to this output.

Scope of the integrated GX device
A VE.Can interface can be used to connect Victron VE.Can devices (e.g., VE.Can MPPT). The port can also be reconfigured for use with a compatible CAN bus Li-ion battery via the remote console.
1xUSB port, 1x Ethernet port, 1x VE.Direct port offer many possibilities for system expansion
The settings can be changed within a few minutes using the VEConfigure software (a computer or laptop and an MK3 USB interface are required).
Several monitoring and control options are available: Color Control GX, Venus GX, Octo GX, CANvu GX, laptop, computer, Bluetooth (with the optional VE.Bus Smart Dongle), battery monitor, Digital Multi control panel.

Remote configuration and monitoring
Install a Color Control GX or other GX products to connect to the internet. Operating data can be stored and viewed free of charge on our VRM (Victron Remote Management) website. Once connected to the internet, systems can be accessed remotely and settings can be changed.
