Victron Orion-Tr 48/12-9a (110W)

VictronSKU: ORI481210110

Price:
Sale price€67,99 EUR Regular price€80,92 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

The Orion-Tr 48/12-9 From Victron Energy Is an isolated DC DC voltage converter and ensures a regulated DC voltage and thus for the trouble-free operation of your DC consumers. The device converts the DC input voltage (32-70V) into a adjustable 12V output voltage (10-15V) and delivers a constant permanent current of 9a, which corresponds to an output of 110W. So you can supply every 12V consumer with exactly the right voltage. With many sensitive electronics devices, compliance with the exact operating tension is essential for an impeccable function. The Orion-TR 48/12-9 also dominates the parallel circuit with identical devices and has a remote-controllable input switch.

Characteristics:
- 48V DC Operating voltage, controllable 12V output voltage 10-15V
- Can be switched in parallel with the same -type devices for increasing performance
- Remote-controllable on and off switch
- Protection class IP43
- Galvanic separation
- Wide input voltage area: 32V - 70V
- 110W power at 9a permanent current
- Max. 12.5A output current
- high efficiency of 87%
- 0.6kg
- 100x113x47

Not suitable for charging batteries. Please consider the use of an Orion-Tr Smart to charge the batteries.

DC-DC DC converters of the Orion Family generate a clean output voltage in the range of 10-15V DC and the same possible line losses from a 48V power source as fluctuations in battery voltage.

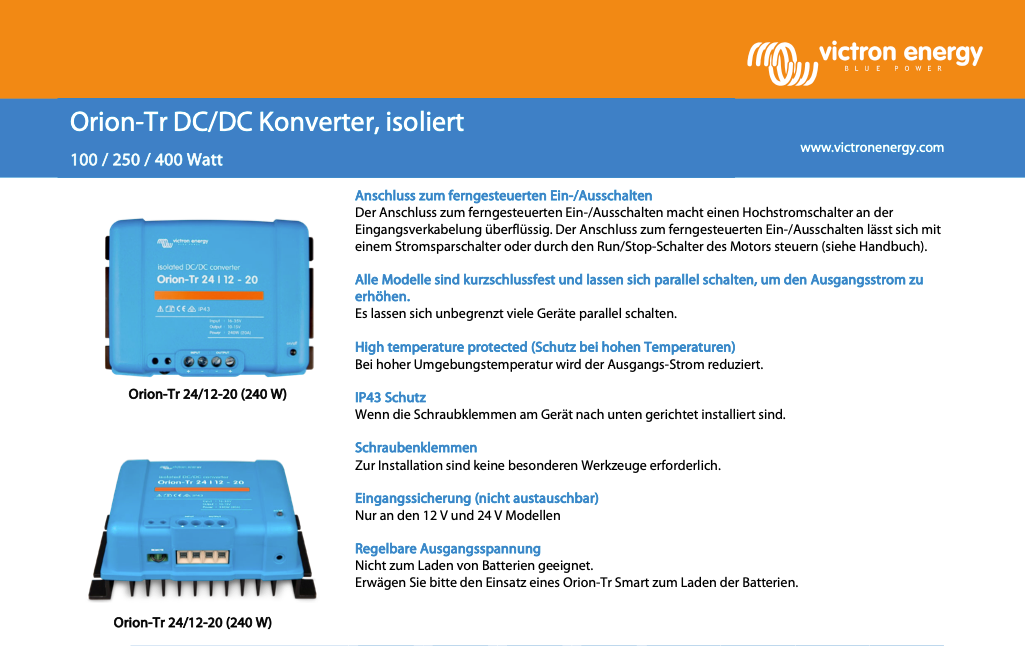

Remote-controllable ON/OFF switches
Due to the remote control in/out connection, no high current switch in the input cabling is no longer necessary. The remote control in/out connection can be controlled with a power saving switch or by the run/stop switch of the engine (see manual).

can be switched in parallelto increase the output current
Unlimited many, identical devices can be switched in parallel to increase the output power.

Scope of delivery:
1x Victron Energy Ori481210110 Orion 48/12-9 DC DC converter 48V to 12V (10-15V regulable) 9a 120W
