Victron Orion-Tr Smart 24/24-12a Isolated DC-DC Charger

VictronSKU: ORI242428120

Price:
Sale price€161,00 EUR Regular price€203,49 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

The Orion-Tr Smart 24/24-12a from
Victron Energy is a galvanically insulated DC DC converter and charger. It is suitable for use in double battery systems in vehicles or on boats, in which the (intelligent) alternator and the starter battery is to be used for charging the service battery. The charger can be used in 12V or 24V systems and is suitable for both lead and lithium batteries. Unlimited many devices can be switched in parallel to increase the output power.

Thanks to the Orion-Tr Smart 24/24-12A, you can supply every 24V consumer with exactly the right voltage. The correct voltage is also guaranteed for longer lines, since the Orion can adapt the tension to occurring management losses. With many sensitive electronics devices, compliance with the exact operating tension is essential for a smooth function.

Integrated Bluetooth, fully programmable
Monitoring, changing the settings and updating the charger for newly available software functions can be carried out with any Bluetooth-enabled smartphone, tablet or other device. The Orion-TR Smart can be programmed via a configurable battery charging algorithm or a fixed output. It also has an intelligent generator compatibility - engine running detection.

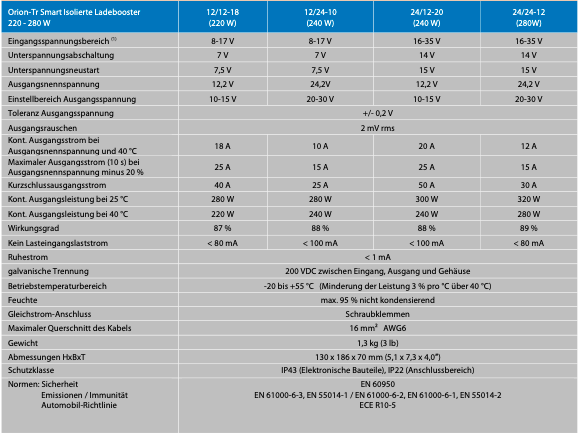

Characteristics:
- for 24 V battery voltage, adjustable output voltage 20-30 V
- Max. 280 W output power with a maximum stream of 12a
- Wide input span area: 16-35 V
- Protection class IP43, galvanic separation 200 VDC between the entrance, output and housing
- Can be switched in parallel to increase the output power with any number of comprehensive devices
- can be used for buffer charging of batteries
- Remote-controllable on and off switch
- Intelligent generator compatibility: engine running recognition
- 1.3kg
- 130x186x70

    Adaptive 3-stage loading algorithm: Constant flow - constant voltage - maintenance
    - With lead batteries, it is important that the recording time is kept short in flat discharges in order to avoid an overload of the battery. After a deep discharge, the constant voltage duration is automatically extended to ensure that the battery charges completely.
    - The recording time is fixed for lithium batteries, 2 hours by default.
    - Alternatively, a fixed output voltage can be selected.

      Remote-controllable ON/OFF switches:
      A remote-controlled on/off switch or a relay contact can be connected to the two-pin connector. Alternatively, the connection H (right) of the two-pin connector can be switched to a battery plus pole or the connection l (left) of the two-pin connector to the battery minus pole (or for example to the body of a vehicle).

      Scope of delivery:
      1x Victron Energy Ori242428120 Orion-Tr Smart 24/24-12a 280 W DC-DC converter
      1x operating instructions
