Offgridtec® 200W hardcover solar bag and 2x 2A USB connection

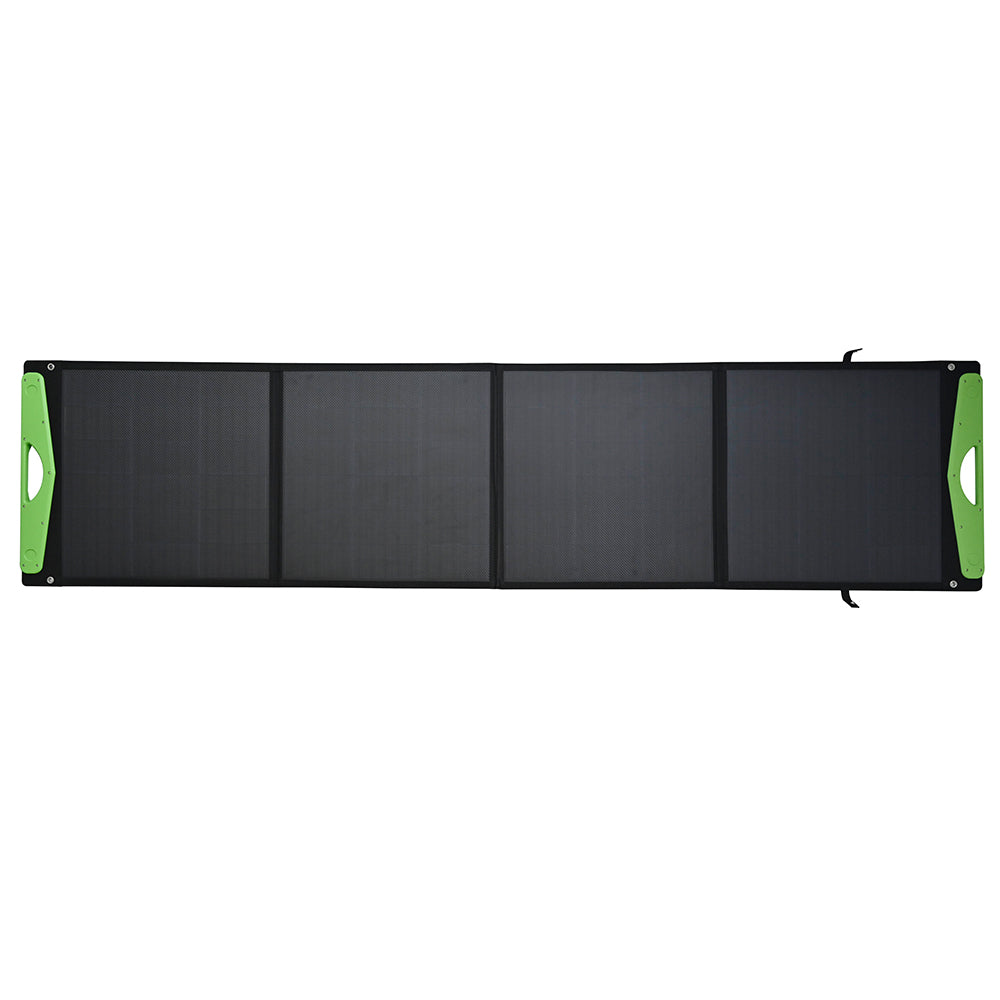

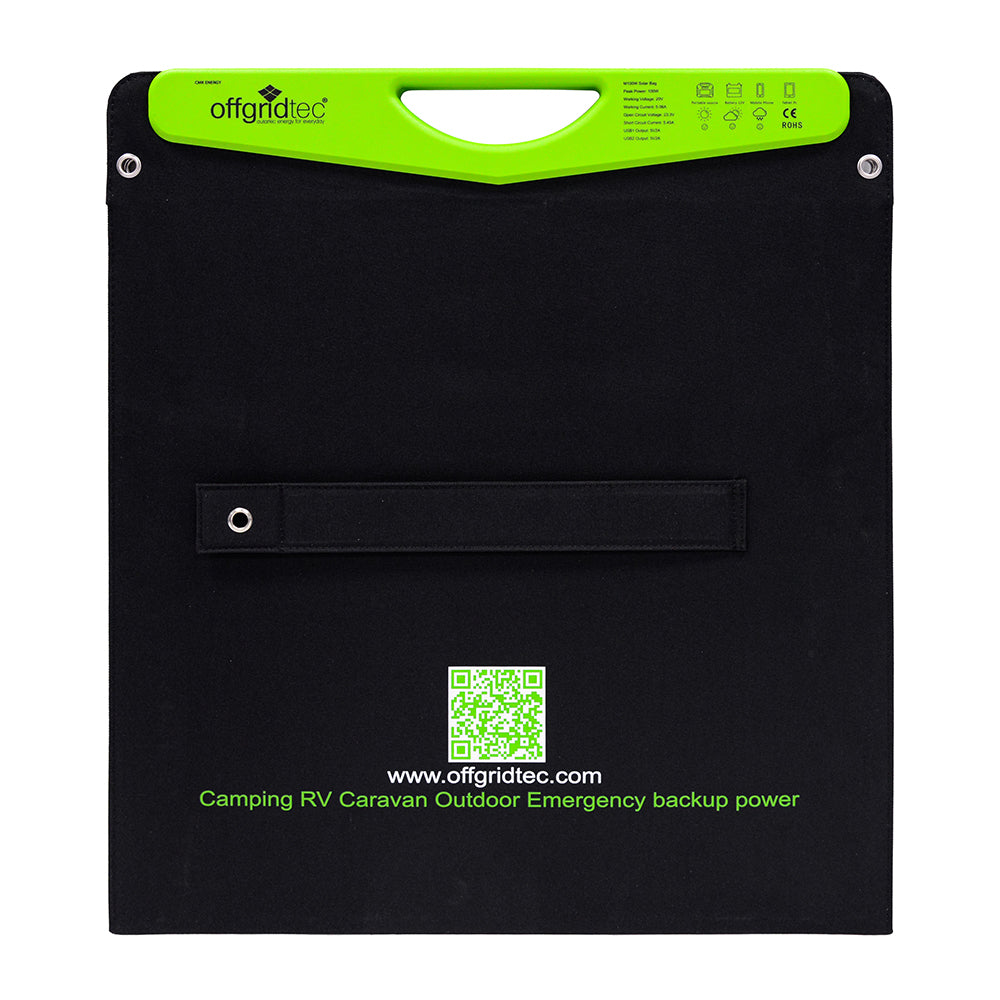

The Offgridtec 200W solar bag (MPN 013110) is a portable solar panel and is suitable for those who value flexibility. The module is foldable, light and space-saving and is therefore suitable for many areas of application. The bag can be placed horizontally or at a 45° angle using the integrated supports to ensure the best possible solar yield. Thanks to the integrated USB ports in the handle, you can also charge micro-consumers without a charge controller and battery. The Offgridtec solar bag is therefore the ideal companion for a spontaneous camping trip and the perfect addition to your outdoor equipment.

Characteristics

• Rated power: 200W
• High efficiency of 22.3%
• 2x USB 5V 2A ports for direct charging
• Robust and water-repellent fabric
• 5 meter connection cable with Anderson Powerpole connector
• 1.5 meter battery connection cable with 10A fuse

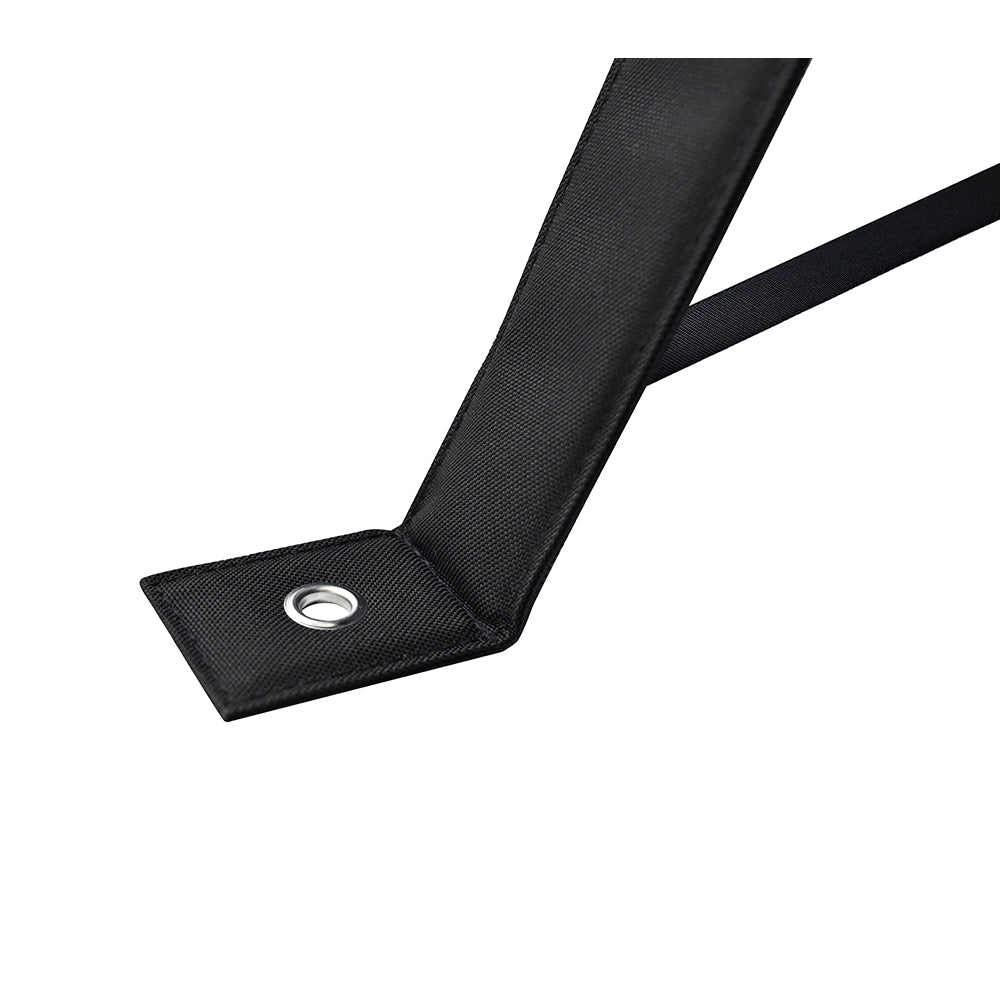

• Feet with eyelets
• Quality carry case included

Always ready to use

You can achieve the greatest benefit with the solar bag in conjunction with a charge controller and a battery to store the energy gained. But the foldable module can also be used on its own at any time. The two USB 5V connections allow you to charge your mobile phone or other small consumers via USB directly on the module. The connections are located directly in the handle of the module, making it ideal for spontaneous camping trips.

High-quality processed

The 200W solar bag from Offgridtec is both robust and space-saving and offers you a high degree of flexibility. The robust and water-repellent polyamide fabric makes the solar bag the ideal companion for camping trips. As with all Offgridtec solar modules, great value was placed on high quality and durability for the solar bag. We produce our solar modules in accordance with current norms and standards, which, together with the high-quality materials, makes our modules high-end products that deliver top technical performance even under the most adverse conditions.

Flexible adjustability

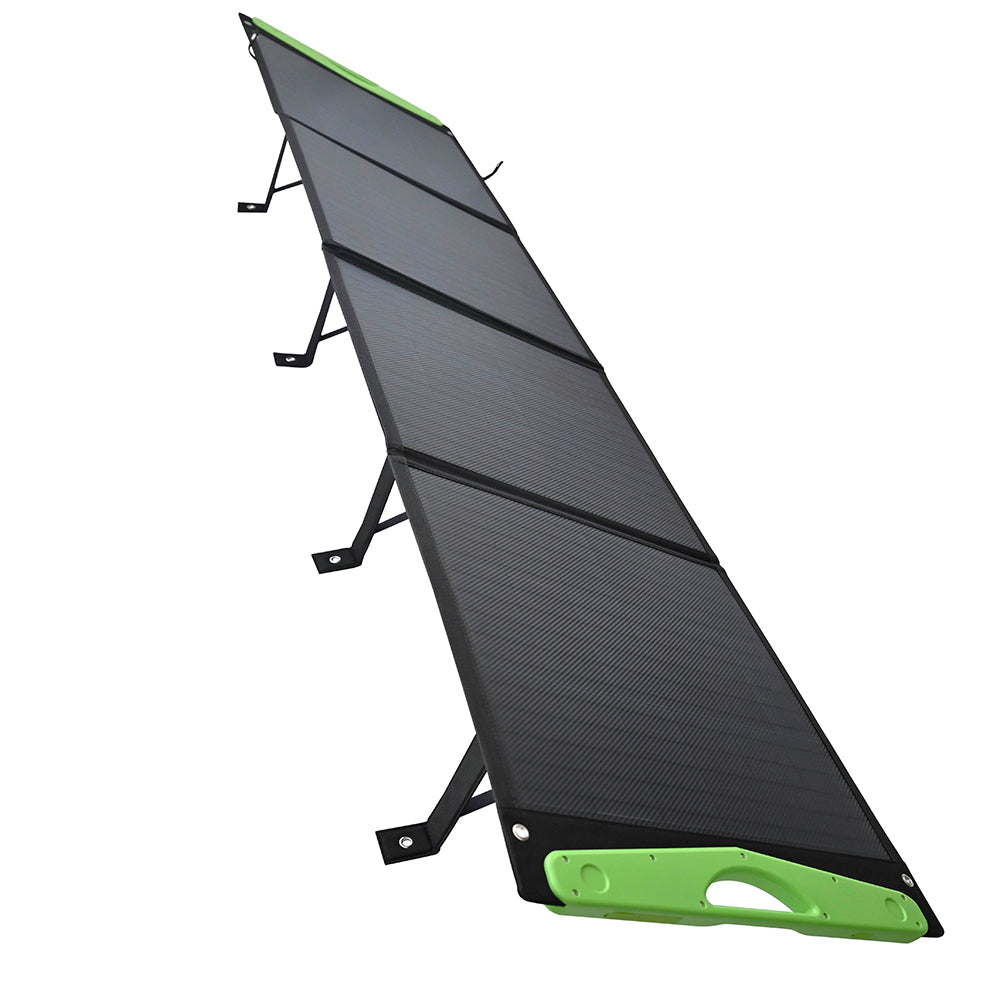

The Offgridtec solar bag can be adjusted to the position of the sun at any time in order to generate optimal yields throughout the day. Thanks to the integrated supports, the module is at a 45° angle and can therefore catch the last rays of sunshine in spring and autumn, when conventional solar panels only produce low currents due to the flat position of the sun. Due to its light weight and the integrated handles, the bag can be easily transported and is always ready for use.

Technical specifications

• Rated power: 200W
• Module voltage (Vmp): 20V
• Max. charge current (Imp): 10A
• Open circuit voltage (Voc): 24V
• Short circuit current (Isc): 10.8A
• Cell efficiency: 22.3%
• Tolerance: ±3%
• Temperature coefficient: -0.38%/°C
• Dimensions closed: 605 x 535 x 45 mm
• Dimensions open: 2250 x 535 x 22.5 mm
• Weight 7.5 kg including carry bag
• Connection kit included

Scope of delivery:

1x Offgridtec solar bag 200W

1x 5 meter connection cable with Anderson Powerpole connector

1x 1.5m battery connection cable with 10A fuse

1x carry bag

data sheet
