Autoterm Air 2D (planar) Complete heating set with 2kW output 12V / 24V, control panel, 48/83 mm flange

AutotermSKU: TEX1906

Tension: 12V
Control element: PU-5 rotary control
Installation: 48mm
Price:
Sale price€669,00 EUR Regular price€689,00 EUR

Tax included Shipping calculated at checkout

Shipping in 2-5 working days

Description

Inclusion with Auteter Air 2D heating - fits in 99% of the camper cases

This set meets all requirements in 99% of all campers. Also for the larger travel vehicles up to approx. 16 cubic meters heated volume (volume without furniture!).

The idea is that the heating is used for the endurance run. This means that the heating is not switched off, but continues to run at a low level of performance. Keeping a room at the right temperature consumes significantly less energy than trying to heat up a cold interior within 30 minutes.

We assume that all vehicles were properly insulated and in winter the cab with its large, unisolved windows will be separated at least with a blanket.

Don't worry: the heating is designed for the continuous run and therefore has no problem. In principle, you can drive off at home, switch on the heating and come back in 4 weeks, at home. The power consumption is 10 watts at the smallest level, which is less than the parking light of your vans.

Height kit / heating maintenance

The heating is equipped with a height kit, which means that it also works in the Nepalese mountains or in the Andes. But that does not mean that she can't go away! If you leave the altitudes, operate your heating for a hour at full performance level so that deposits can burn.

Burning is also necessary if you only operate the heating at the smallest level for a long time. Put it on full power every 1 - 2 weeks at the latest so that the combustion chamber gets really hot again. This is the most important and at the same time the only maintenance measure in the heating.

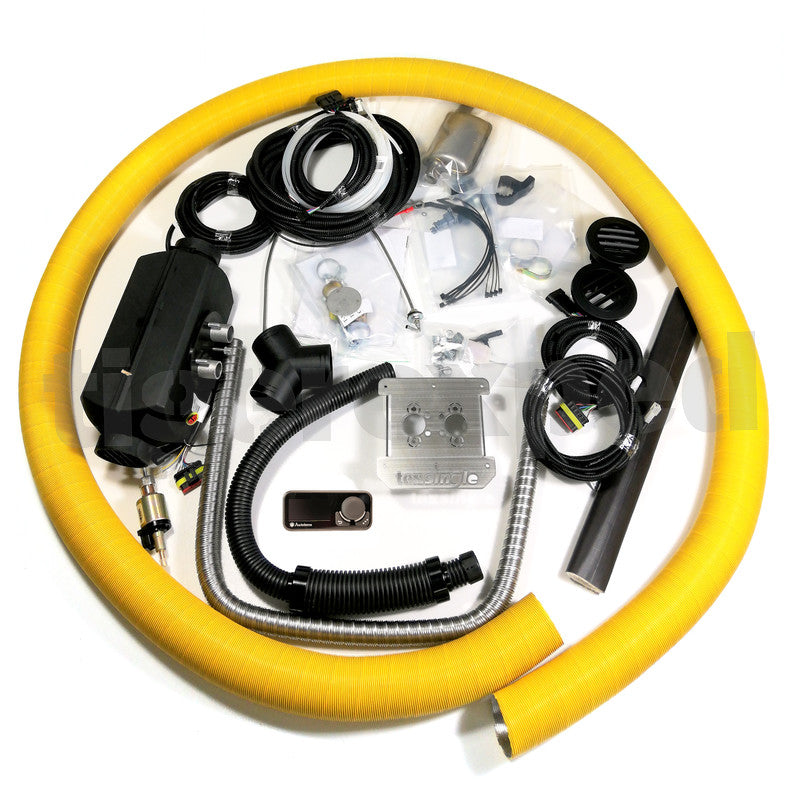

The 99% kit consists of the following parts:

Our bestseller diesel parking heating: Autoterm Air 2D with 2 kW heating output and height kit for vehicles with 12V.

Technical data Autoterm Air 2D (formerly Planar 2D):

  • Operating voltage: 12V
  • Heating power: 0.8 kW (min), 2 kW (max)
  • Air volume flow: 34m³/h (min), 75m³/h (max)
  • Fuel consumption: 0.1ll/h (min), 0.24l/h (max)
  • Performance recording: 10W (min), 29W (max)
  • Warm air piping 60mm system

The complete installation kit of the heating is also included:

  • Hearing device 12V
  • Low-no-nooterm fuel pump, "extra quiet"
  • Stainless steel exhaust silencer (17 x 9 x 5cm)
  • Rubber holder dosing pump
  • Dosier pump wiring harness
  • Wiring harness
  • Suction air hose with integrated silencer
  • Heat protection hose
  • End piece exhaust pipe + clamp
  • Tank
  • 5.5 m fuel line
  • Fuel bonds
  • 1 m exhaust gas reed tube metal
  • Screws, nuts, clamps, shrink hose, cable ties
  • operation manual

Furthermore included:

Depending on the selection: depending on the selection:

PU-5: A simple control panel with a rotary control. It controls the heating via performance levels. A separate temperature sensor to be ordered can be connected, then a regulation via the room temperature with the PU-5 is possible.

PU-27: The digital control panel with OLED display has an integrated temperature sensor (cable length 1.8 m), but an external temperature sensor can also be connected if the control panel is installed in an unsuitable location (e.g. in a cabinet). Control via a fixed performance level is also possible. The device has a timer function. Menu navigation in English and Russian.

Comfort Control: The new, improved control panel for the Autoterm / Planar Sace heating. With three freely adjustable timers for any weekday, expanded heating modes (including thermostat mode), voltage monitoring and much more. Multifunctional bike with pleasantly handy rubber coating and OLED display. Smaller installation road, more comfortable use, more chic design.

Cable length heater control, approx. 1.80m

The cable length to the control panel in the manufacturer's scope of delivery is 1.80m. Various longer exchange cables or extension cables are optionally available.

Installation

Our built-in stainless steel flange, which makes the assembly of the heating easy, elegant and sexy.

The cutting of a rectangular hole (9 cm x 13 cm) in the vehicle floor is sufficient to install the heating and thermally decoupled. Then the Tigerexped inbuilding can be glued or screwed (please do not use silicone, but a PUR layer).

You can wipe out the size of the flange: for soil up to 48 mm (extends to most vans) or for 83 mm floor thickness (usually for cabins or high insulation and floor slabs). The flange should be chosen min. 5 mm longer than the floor is strong (for the sealing joint).

T-pieces for fuel supply

2 different T-pieces (8 x 8 x 5.3 mm and 5.3 x 5.3 x 5.3 mm) to use the original fuel system of your vehicle for fuel supply, IF It is ensured that this works for the vehicle and heating (pressure, length of the return etc.) or if there is already a heater, the tank canal can be taken.

If this is not possible or not safe, there is also a tank tank tube in the kit, so that you can remove the fuel directly from the fuel tank (mostly the means of choice).

Attention fuel hose:

The scope of delivery includes fuel hose as a cable binder. The length contained is usually completely sufficient (possibly shorten/share pieces). If, contrary to expectations, you cannot get by with it, you can reorder the hose as a meter.

Fuel filter

A fuel filter so that the heating always receives clean fuel. With diesel from non -European countries or for vehicles with rusty tanks, this is life insurance for the fuel pump of the heating. Attention: do not mount the filters horizontally, but a little weird, so that the pump always sucks from the filled side of the filter!

Warm air pipe

The set also includes 3 meters of 60 mm warm air pipe. In 99% of cases, this is a well -dimensioned need.

Warm air outlets / distribution

A suitable y-piece and 2 outlets 60 mm, rotatable so that you can decide for yourself where you want to assemble the two air outlets.

The right kit?!

The heating kit is suitable for vehicles with an interior of 12 cubic meters to 14 or a maximum of 16 cubic meters - depending on the insulation and setup, placement of the hot air outlet openings, the personal temperature feeling and the climate, into which you drive. But e.g. for all VW transporters and up to H2L2, this heating should be sufficient for common travel destinations.

If you have a larger vehicle, do not want to isolate or want to do the balancing act between the Sahara and the winter Siberia, you are wrong here!

With the VW T5 / T6, the installation location for air condition heating is prepared, here the 99% camper kit would be unsuitable. T5/T6 installation kit.
