Blue Sea BS 5511e dual circuit plus battery master switch with 3 positions

Blue SeaSKU: BS5511E

Price:
Sale price€76,90 EUR Regular price€89,61 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

Blue Sea BS 5511e dual circuit Plus battery master switch with three positions for ON/OFF/battery combination for diesel and petrol engines. The switch is gas-tight and suitable for two battery banks.

MAIN FEATURES

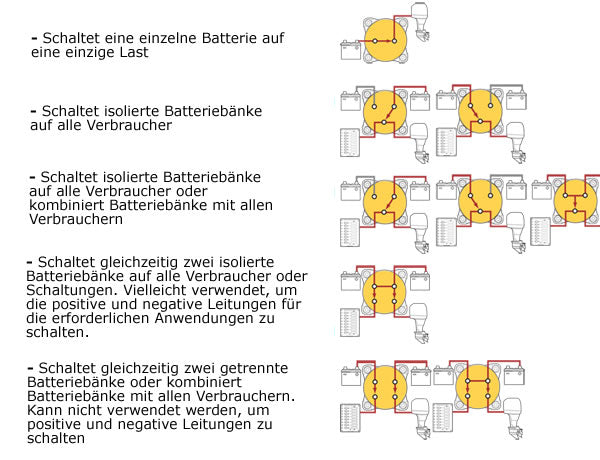

  • Switches 2 isolated battery banks at the same time or connects battery banks to all consumers
  • Ignition proof for installation onboard a gasoline powered boat

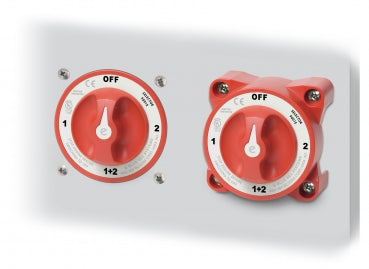

  • Housing design allows for surface mounting or panel mounting

TECHNICAL DETAILS

  • Switch positions: 3 - On/Off/Battery combination
  • Battery combination: yes
  • Colour: red
  • Alternator Field Disconnect (AFD): No (The circuit breaker protects the diodes in the alternator if the switch is turned OFF while the engine is running. If the circuit breaker is not being used to protect the alternator, an LED can be connected to the AFD terminals to displayed when the battery switch is in any position but not OFF.)
  • Maximum voltage: 32V DC
  • Clamp bolt torque: 15.82 Nm
  • Continuous charge current: 350 amps.
  • Peak charge current.: 525 Amps (5 min.)
  • 30 sec cranking current: 700 amps per circuit. The current required by the starter before starting the engine. The cranking current varies significantly during the starting cycle. First, there is a large surge of current required to overcome the motor's inertia and compression. This increase can be two to four times the average starting current. The starting current is used for sizing batteries, cables and battery switches.
  • Battery input: 2
  • Cable distance for 4/0 AWG cable: 27.94 mm
  • Recommended cable size: 4/0 AWG (120mm²)
  • Mounting holes: 1/4"(M6) screw
  • Clamp bolt size: 3/8" - 16 (M10)

Weight: 0.59kg
