CS-Electronic XF2420W automatic Waterproof LIFEPO4 24V/20A charger in the metal housing -600W waterproof IP67

With the XF Waterproof series, we offer you powerful, waterproof computer chargers for your lithium-iron-phosphate batteries. The charging electronics are completely poured in a metal housing and is therefore protected against water, dust and shock.

With a high efficiency of approx. 92%, the charger works highly efficiently and has little self -consumption. The charging program is specially tailored to lithium LIFEPO4 batteries and can permanently be connected to your battery due to the intelligent control.

The charging control takes place via a 3-colored LED, which is visible on the side of the housing. After connecting, the loading process itself starts with 240V fully automatic and switches off checked by full load.

Network voltage: 180-240V, 50-60Hz

Charging current: 20.0a

Charging power: 600W

Load closing voltage: 29.2V

Charging methods: CC/CV

Load control: red LED = loading, green LED = fully charged

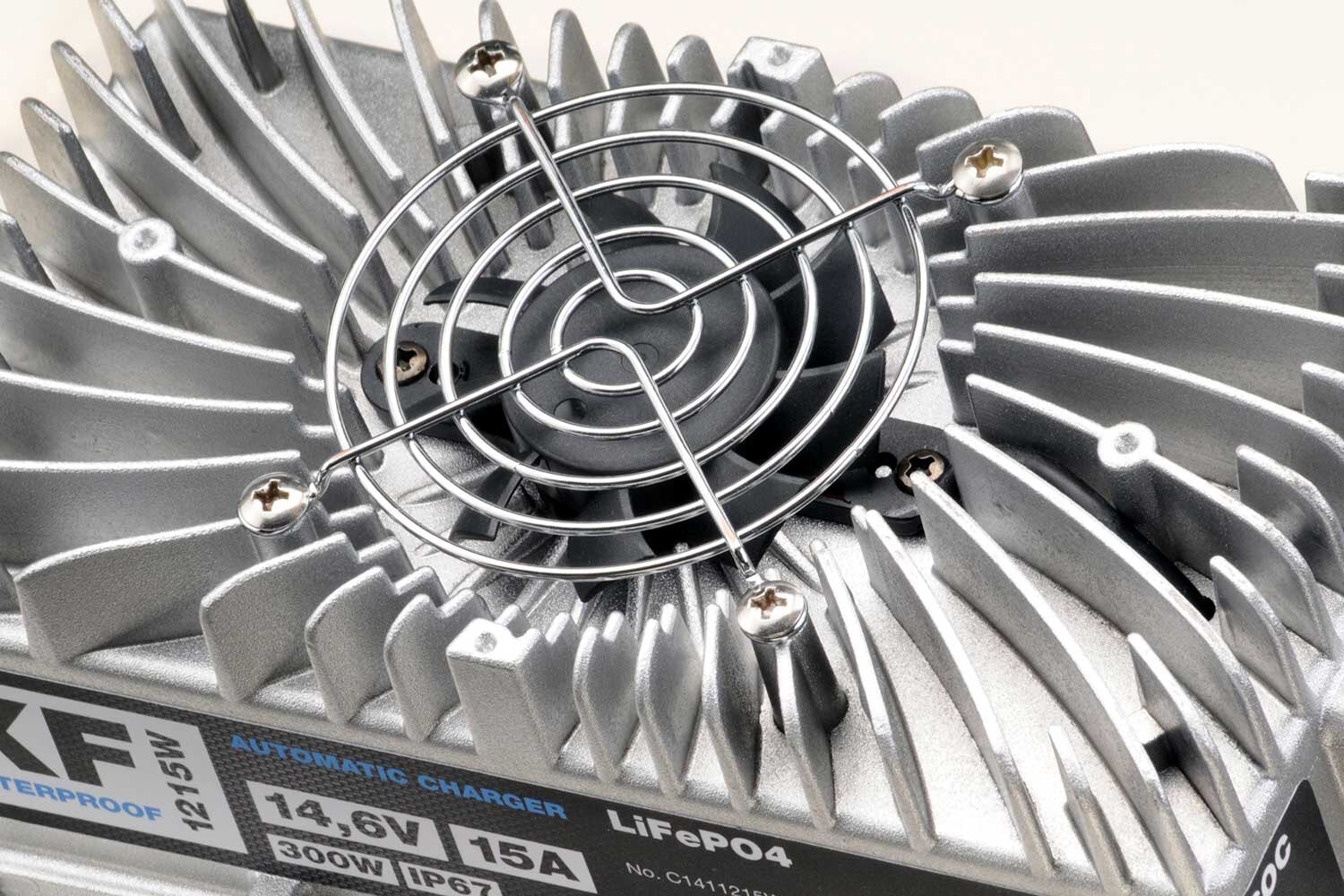

Cooling: fan integrated

Battery connection: 1.5m connection cable with Anderson SB50 gray

Network connection: 1.5m connection cable with EU connector

Use: in dry and wet surroundings

Weight: 2.5kg

Dimensions: 250 x 135 x 78mm

For 29.2V lithium lifepo4 batteries in the maritime or wet area.

- XF2420W automatic LIFEPO4 charger

-1.5m connection cable on the charging cable with SB50 connector gray

- 1.5m 240V network cable

- Operating instructions German
