Digital Yacht Vekonvert - Victron Ve.direct zu NMEA 2000 Gateway

Digital YachtSKU: ZDIGVEKVT

Price:
Sale price€207,77 EUR Regular price€232,05 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

vekonvert is a New NMEA 2000 interfacethat was developed in cooperation with Victron Energy to Ve.direct-compatible devices, such as the Smartshunt and BMV battery monitoring devices as well as the MPPT solar loaders, to integrate 2000 systems in NMEA.

This functionality already existed, but needed the use of a highly developed Cerbo module. Vekonvert is a cheaper and simpler solution for smaller installations that only want to display electrical data on a multifunction junk (MFD).

Note - Vekonvert is Not compatible with Victron chargers and inverters. It should also not be connected to the VIT.Direct interfaces of Victron Versedter/chargers such as Multiplus, Quattro, Cerbo, etc.

The installation is simple: Connect the device to a “T” connection of the NMEA-20000 network and the customer-specific VE.Direct connection of the device, and you immediately have electrical data in your NMEA-20000 network.
Since sailors prefer a clear and clear instrument panel, the integration of the electrical data into the main card plotter is a popular option that saves space and costs.

This product is the result of a collaboration between Victron Energy and Digital Yacht. The system uses the Victron-own VE.Direct data connectivity as a source for NMEA 2000 data.

Victron solar loader (MPPT) and battery monitors can also be connected to the NMEA 2000 network via the Vekonvert interface.

Characteristics:
Universal NMEA 2000 Gateway for Victron products with VE.Direct interface (see compatibility list).

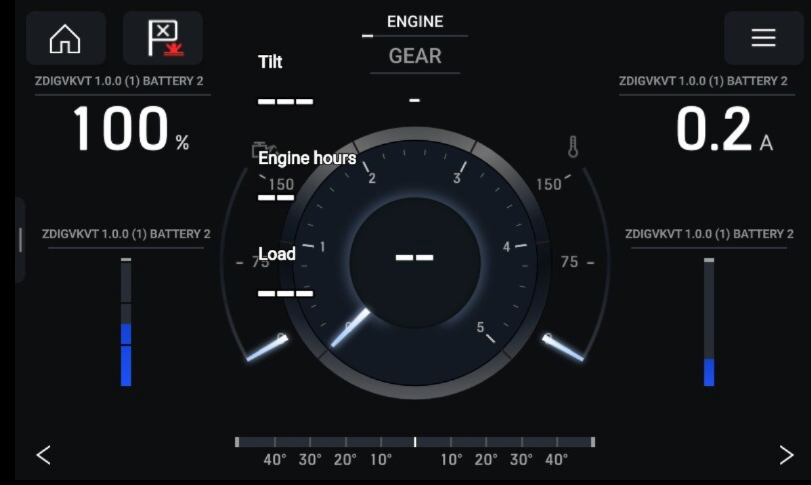

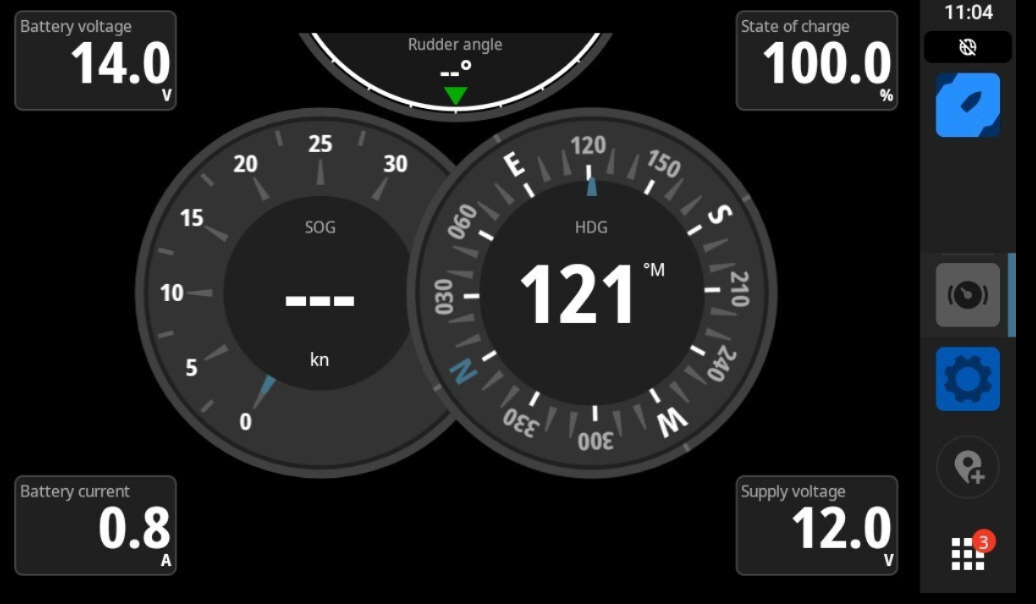

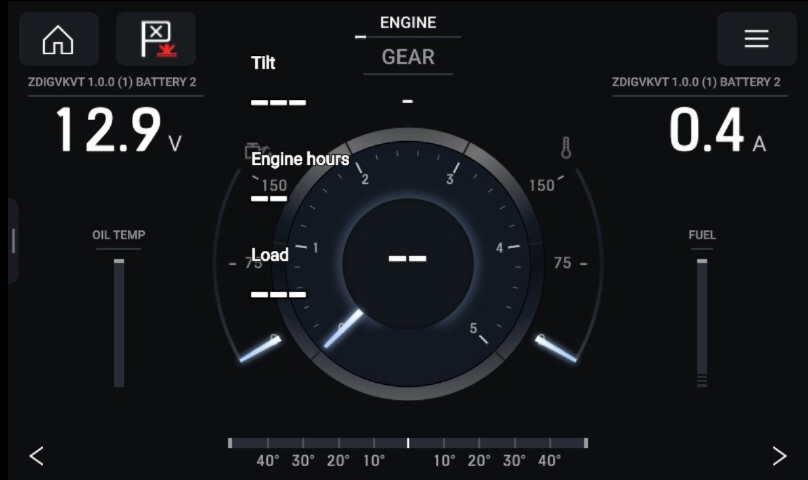

Enables battery management or monitoring the solar load on compatible card plotters (Raymarine, Garmin, Navico, Furuno, etc.).
Thanks to an intelligent algorithm battery voltage, charging/discharge current, loading stand and time until the battery is exhausted.
Easy installation, plug-and-play connectivity and self-power supply via the NMEA 2000 bus.

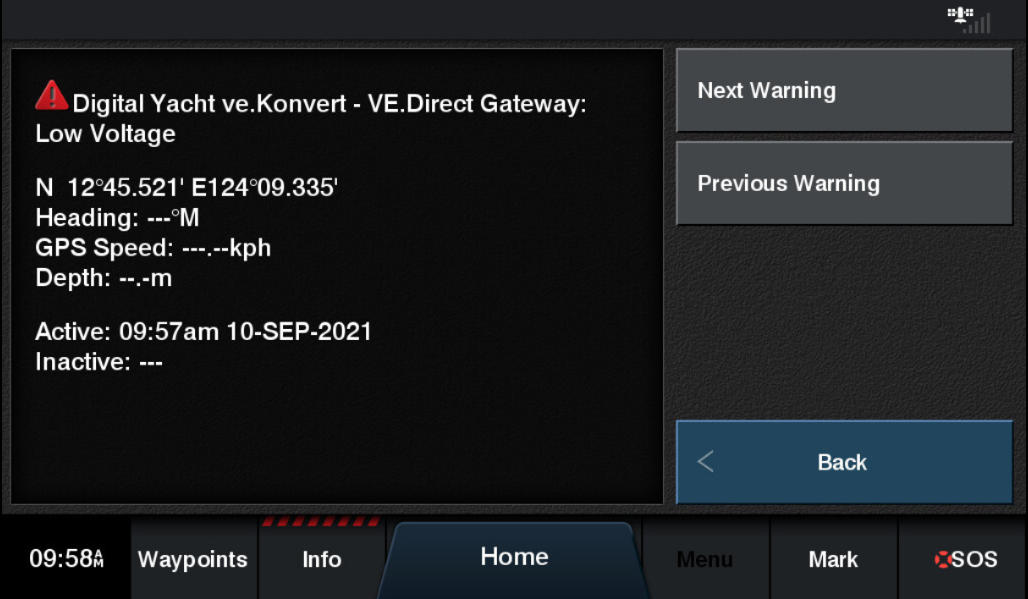

NMEA generates 2000 warnings from any BMV or Smartshunt.
Supports several Smartshunts for multi-battery systems.
194g
180x45x40
