Description
You can find the right connection cable for the minus pole
At Frenchman Energy here And with Frenchman Marine here
The matching polabapter
You can find more information here
Technical specifications UN38.3 | MSDS | CE | Raw UN38.3 | MSDS | CE | Raw
Data / order no.:
F12-300XB
EAN
4251847301126
capacity
300Ah
Replaced lead-gel-agm battery
12V/600AH
nominal voltage
12.8V
Energy content
3840Wh
Operating voltage
10.5V - 14.6V
Application in parallel circuit
Yes, any number of the same type possible in parallel!
Application of series circuit
Yes, in serial up to 24V, 36V and a maximum of 48V!
Cell technology
Lithium lifepo4
Cell type
BPC BIG-Prismatic-Power high-load cell-gradeaa
Loading programs
CCCV / IU / iuou / lead acid
Load closing voltage
14.2V - 14.6V
Preservation
13.3 - 13.8V
Maximum charging current
200a
Recommended charging current
150a
Max.entladestrom / 5 sec.
400a
Permanent enthusiasm
200a
Battery shutdown
10.5V
BMS Battery Management System
integrated
Remote monitoring optional
500a Bluetooth Mess-Shunt and free app
Remote monitoring/measurement shunt integrated
F12-300XB
Protection class
IP67
Cycles / lifespan at 50% DOD
>8000
Cycles / lifespan at 80% DOD
>6000
Cycles / lifespan at 90% DOD
>5000
Temperature when charging
0 ° C to +60 ° C / below 0 ° C The charging current is automatically reduced by "Cell-Frost-Control" in the BMS
Temporariness in the event of discharge
-20 ° C to +60 ° C
Recommended storage temperature
-10 ° C to 30 ° C
storage
80 - 100% loaded / in the event of non -use, battery load every 6 months
Self -discharge
1 - 2% / month
connection
M8
Pluspol arrangement
Front right
Final pole
M8 inner thread
Preparation Shunt assembly
n / A
Emergency cutter installed
n / A

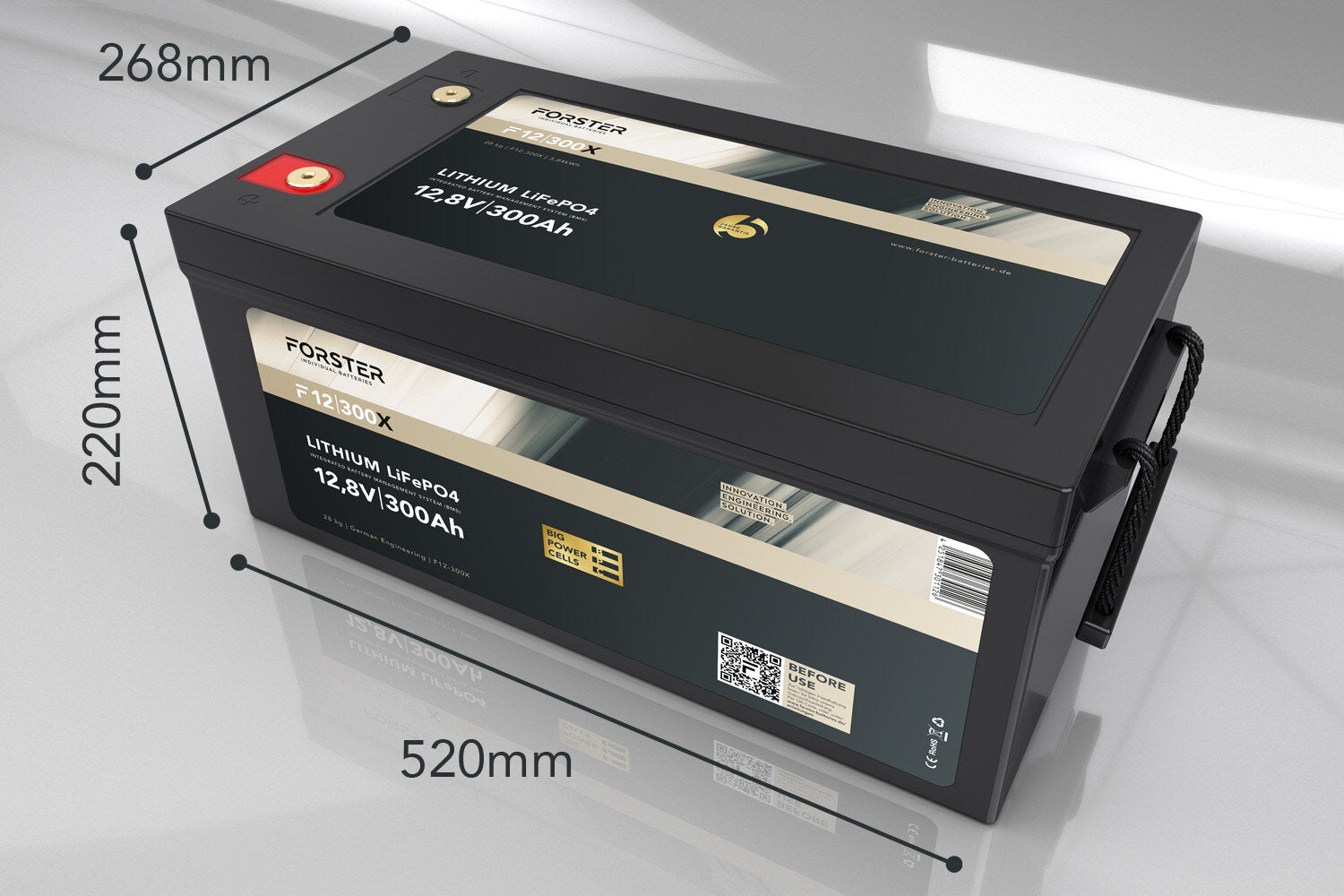

length
520mm
Broad
268mm
Height
220mm
Installation position
arbitrary, standing, lying, side, upright, head over
Canbus interface
n / A
Weight
31.5kg
guarantee
5 years
Certification
Data / order no.:
F12-300X
EAN
4251847301126
capacity
300Ah
Replaced lead-gel-agm battery
12V/600AH
nominal voltage
12.8V
Energy content
3840Wh
Operating voltage
10.5V - 14.6V
Application in parallel circuit
Yes, any number of the same type possible in parallel!
Application of series circuit
Yes, in serial up to 24V, 36V and a maximum of 48V!
Cell technology
Lithium lifepo4
Cell type
BPC BIG-Prismatic-Power high-load cell-gradeaa
Loading programs
CCCV / IU / iuou / lead acid
Load closing voltage
14.2V - 14.6V
Preservation
13.3 - 13.8V
Maximum charging current
200a
Recommended charging current
150a
Max.entladestrom / 5 sec.
400a
Permanent enthusiasm
200a
Battery shutdown
10.5V
BMS Battery Management System
integrated
Remote monitoring optional
Optionally possible with 500a Bluetooth measurement shunt and free app
Remote monitoring/measurement shunt integrated
F12-300XB
Protection class
IP67
Cycles / lifespan at 50% DOD
>8000
Cycles / lifespan at 80% DOD
>6000
Cycles / lifespan at 90% DOD
>5000
Temperature when charging
0 ° C to +60 ° C / below 0 ° C The charging current is automatically reduced by "Cell-Frost-Control" in the BMS
Temporariness in the event of discharge
-20 ° C to +60 ° C
Recommended storage temperature
-10 ° C to 30 ° C
storage
80 - 100% loaded / in the event of non -use, battery load every 6 months
Self -discharge
1 - 2% / month
connection
M8
Pluspol arrangement
Front right
Final pole
M8 inner thread
Preparation Shunt assembly
n / A
Emergency cutter installed
n / A
length
520mm
Broad
268mm
Height
220mm
Installation position
arbitrary, standing, lying, side, upright, head over
Canbus interface
n / A
Weight
31.5kg
guarantee
5 years
Certification
Data / order no.:
F12-300X
EAN
4251847301126
capacity
300Ah
Replaced lead-gel-agm battery
12V/600AH
nominal voltage
12.8V
Energy content
3840Wh
Operating voltage
10.5V - 14.6V
Application in parallel circuit
Yes, any number of the same type possible in parallel!
Application of series circuit
Yes, in serial up to 24V, 36V and a maximum of 48V!
Cell technology
Lithium lifepo4
Cell type
BPC BIG-Prismatic-Power high-load cell-gradeaa
Loading programs
CCCV / IU / iuou / lead acid
Load closing voltage
14.2V - 14.6V
Preservation
13.3 - 13.8V
Maximum charging current
200a
Recommended charging current
150a
Max.entladestrom / 5 sec.
400a
Permanent enthusiasm
200a
Battery shutdown
10.5V
BMS Battery Management System
integrated
Remote monitoring optional
Optionally possible with 500a Bluetooth measurement shunt and free app
Remote monitoring/measurement shunt integrated
F12-300XB
Protection class
IP67
Cycles / lifespan at 50% DOD
>8000
Cycles / lifespan at 80% DOD
>6000
Cycles / lifespan at 90% DOD
>5000
Temperature when charging
0 ° C to +60 ° C / below 0 ° C The charging current is automatically reduced by "Cell-Frost-Control" in the BMS
Temporariness in the event of discharge
-20 ° C to +60 ° C
Recommended storage temperature
-10 ° C to 30 ° C
storage
80 - 100% loaded / in the event of non -use, battery load every 6 months
Self -discharge
1 - 2% / month
connection
M8
Pluspol arrangement
Front right
Final pole
M8 inner thread
Preparation Shunt assembly
n / A
Emergency cutter installed
n / A
length
520mm
Broad
268mm
Height
220mm
Installation position
arbitrary, standing, lying, side, upright, head over
Canbus interface
n / A
Weight
31.5kg
guarantee
5 years
Certification
UN38.3 | MSDS | CE | Raw
