Now with 8 years of guarantee!
The highest quality and reliability for almost all areas of application, whether caravan, marine or energy storage. The latest cell technology, optimized BMS 2.0 control and monitoring set the standard for maximum performance and service life. Optimal monitoring and control of the measurement and consumption values by measuring shunt and Bluetooth possible.
Top features
100% usable capacity
With our Premium battery series, 100% of the specified capacity can be used without the battery being damaged. Conventional lithium batteries can often only be discharged up to 92-95%.
Multi-Charge fashion (MCM)
With the Multi-Charge mode (MCM) you can continue to use 99% of the devices such as booster, land charger or solar regulator. This saves you additional costs and receives the manufacturer's guarantee for new vehicles.

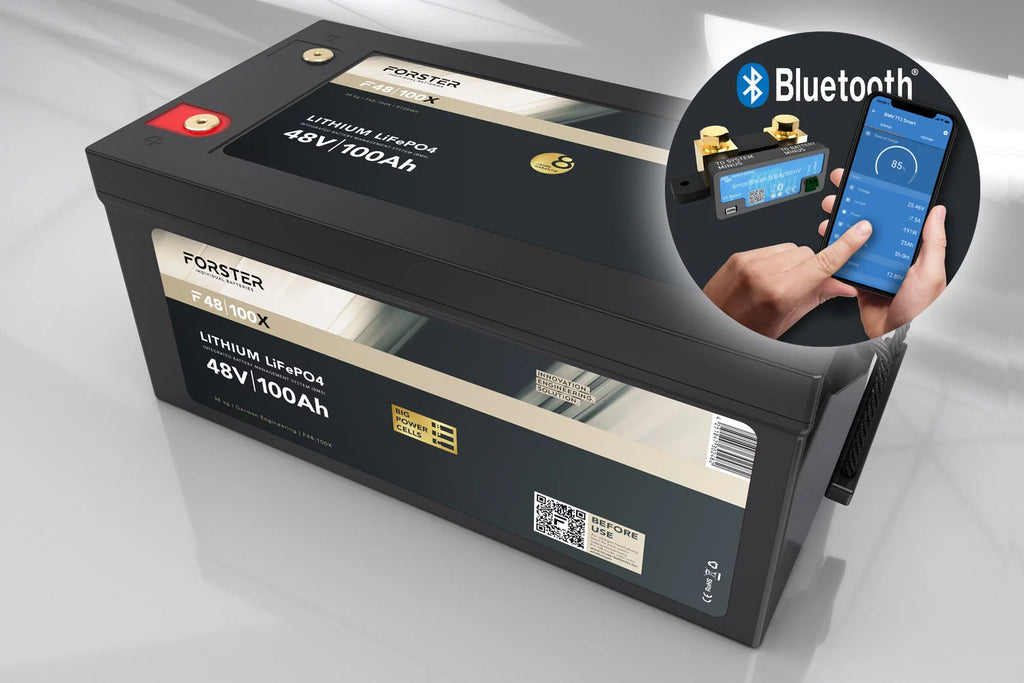

Bluetooth-Mess-Shunt
Optionally, all of our X series Batteries with a 500a Bluetooth Mess-Shunt are available in order to display the really exact level via the app.
Built -in complete protection / safety fi rst
The integrated, intelligent battery management system (BMS) protects the battery and grants completely harmless use.
Big Power Prismatic Cells (BPC)
In contrast to conventional batteries, which consist of many small interconnected cells, Forster relies on a few larger battery cells. The minus of complexity brings a plus of performance, service life and security.
- Maximum use of space
- Few cell connectors
- Less weight
- Quick assembly
- High security and service life
- High reliability
200a Hochlast Power Battery Management System (BMS)
A battery management system monitors and controls the individual cells of a battery and protects them from damage.
Important functions of the BMS:
- Overload protection
- Deep discharge
- Overvoltage protection
- Active cell balancing
- Complete charging control
- Multi-Charge fashion (MCM)
- Temperature protection of the BMS
- Short -circuit
Protection class IP67
The housing of the Premium battery is completely glued to enable flexible use even under moist or wet conditions.
Best guarantee processing 8 years of guarantee
Forster Individual Batteries grants 8 years of guarantee on his batteries. Even after the guarantee period, our service is there for you and can check and repair your battery. Due to our modular construction and the use of large cells, this is easy, quick and inexpensive.
- 8 years of manufacturer's guarantee
- Fast guarantee processing
- Fast and efficient
- Inexpensive even after the warranty period
|
Data / order no.:
|
F48-100X
|
|
EAN
|
4251847302482
|
|
capacity
|
100Ah
|
|
Replaced lead-gel-agm battery
|
200Ah
|
|
Nominal voltage
|
51.2V
|
|
Energy content
|
5120wh
|
|
Operating voltage
|
42.0V - 58.4V
|
|
Application in parallel circuit
|
Yes, any number of the same type possible in parallel!
|
|
Application of series circuit
|
no
|
|
Cell technology
|
Lithium lifepo4
|
|
Cell type
|
BPC BIG-Prismatic-Power high-load cell-gradeaa
|
|
Loading programs
|
CCCV / iu / iuou / lead acid
|
|
Laddling tension
|
56.8 - 58.4V
|
|
Preservation
|
53.2 - 55.2V
|
|
Maximum charging current
|
100a
|
|
Recommended charging current
|
50a
|
|
Max.entladestrom / 5 sec.
|
400a
|
|
Permanent entertainment current
|
200a
|
|
Battery shutdown
|
42.0V
|
|
BMS Battery Management System
|
integrated
|
|
Remote monitoring
|
possible with 500a bluetooth measurement shunt and free app
|
|
Remote monitoring/measurement shunt integrated
|
F48-100XB
|
|
Protection class
|
IP67
|
|
Cycles / lifespan at 50% DOD
|
>6000
|
|
Cycles / lifespan at 80% DOD
|
>4000
|
|
Cycles / lifespan at 90% DOD
|
>3000
|
|
Temperature when charging
|
0 ° C to +60 ° C / below 0 ° C The charging current is automatically reduced by "Cell-Frost-Control" in the BMS
|
|
Temporariness in the event of discharge
|
-20 ° C to +60 ° C
|
|
Recommended storage temperature
|
-10 ° C to 30 ° C
|
|
storage
|
80 - 100% loaded / Load the battery every 6 months if not used, battery
|
|
Self -discharge
|
1 - 2% / month
|
|

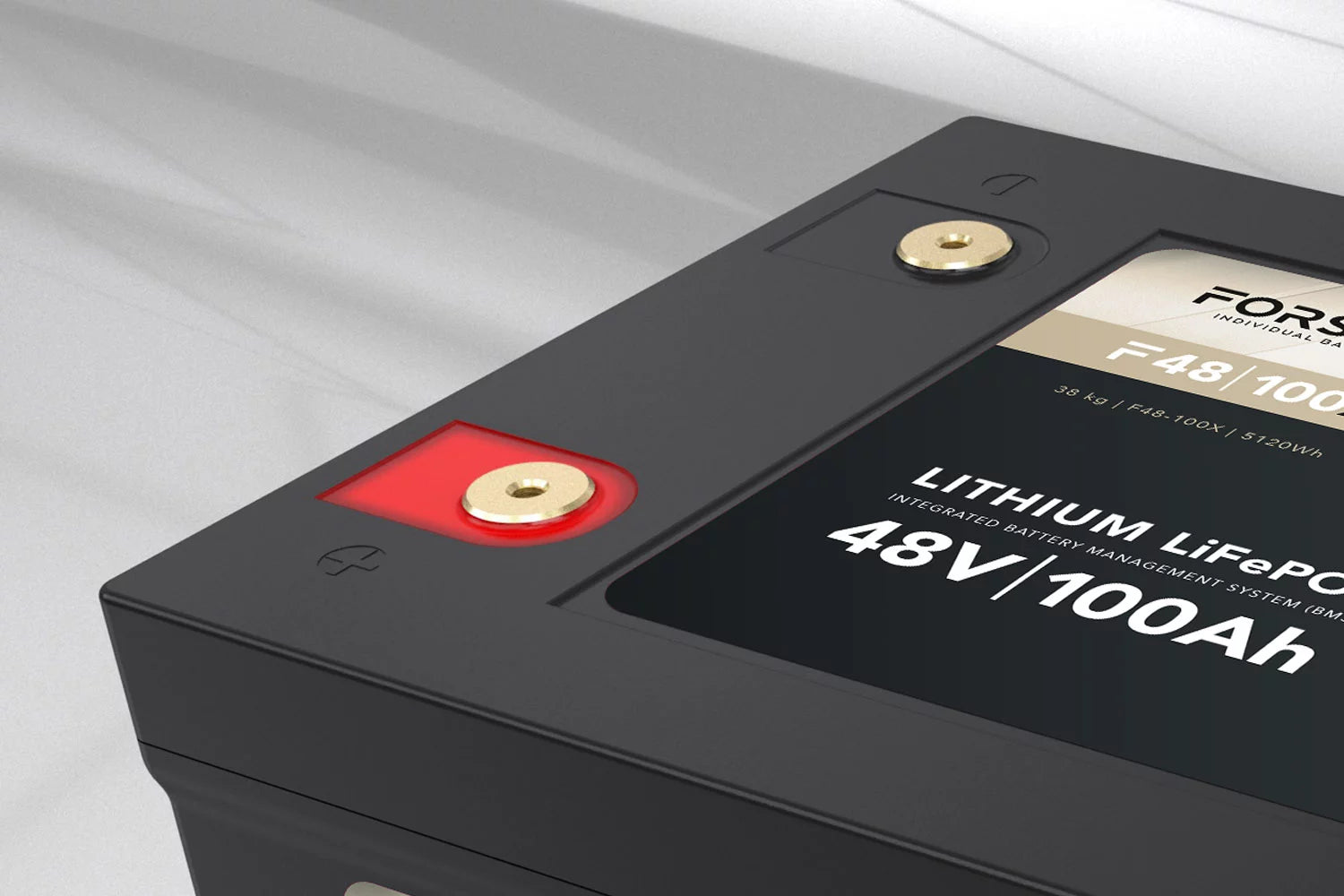

Connection
|
M8
|
|
Pluspol arrangement
|
Front right
|
|
Final pole
|
M8 interior thread
|
|
Preparation Shunt assembly
|
n/a
|
|
Emergency cutter installed
|
n/a
|
|

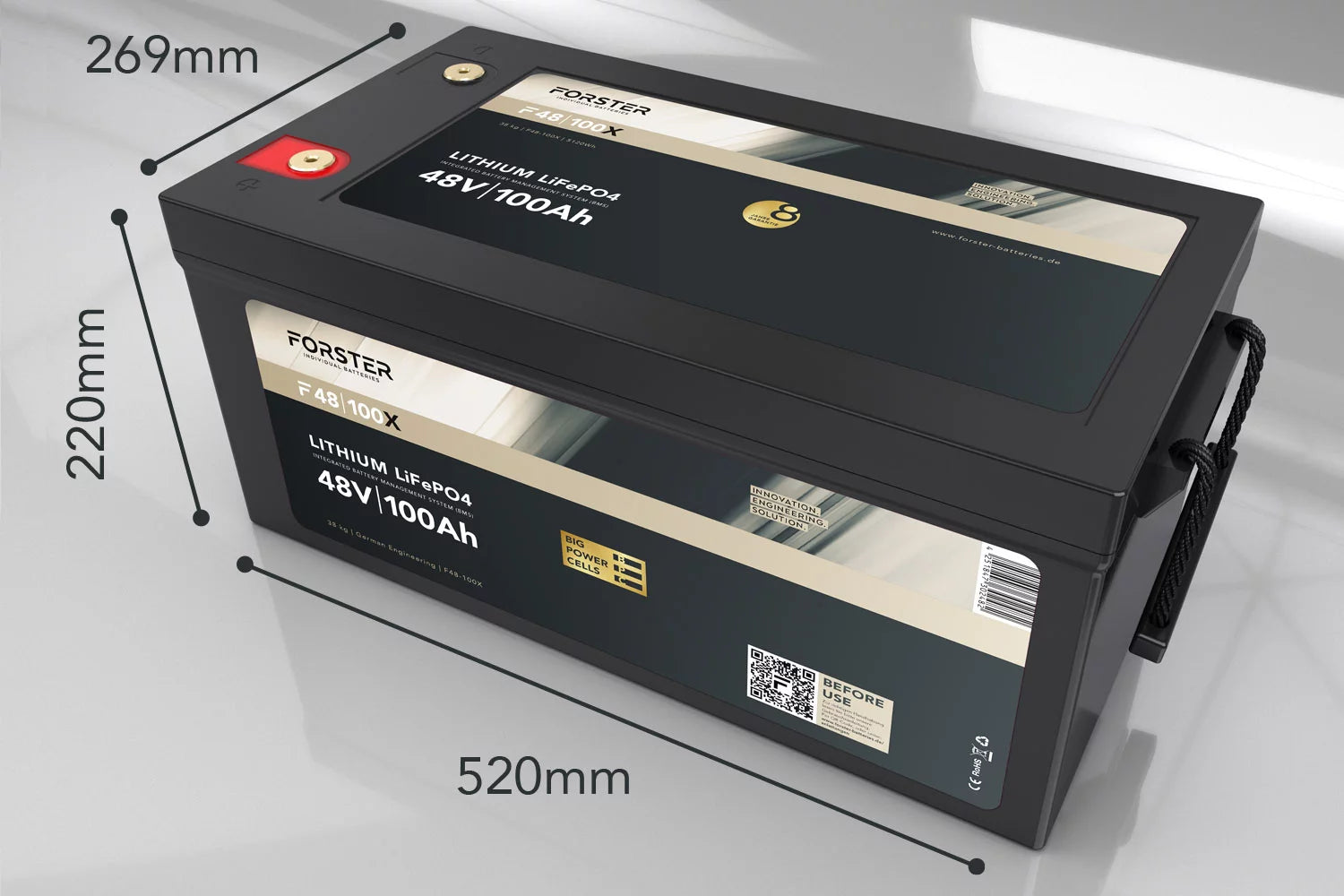

Mass
|
520 x 268 x 220 mm
|
|
Installation position
|
arbitrarily, standing, lying, side, upright, head over
|
|
Canbus interface
|
n/a
|
|
Weight
|
38.0kg
|
|
guarantee
|
8 years
|
|
Certification
|
UN38.3 | MSDS | CE | Rohs | ECE-R10 |
Now with 8 years of guarantee!
The highest quality and reliability for almost all areas of application, whether caravan, marine or energy storage. The latest cell technology, optimized BMS 2.0 control and monitoring set the standard for maximum performance and service life. Optimal monitoring and control of the measurement and consumption values by measuring shunt and Bluetooth possible.
Top features
100% usable capacity
With our Premium battery series, 100% of the specified capacity can be used without the battery being damaged. Conventional lithium batteries can often only be discharged up to 92-95%.
Multi-Charge fashion (MCM)
With the Multi-Charge mode (MCM) you can continue to use 99% of the devices such as booster, land charger or solar regulator. This saves you additional costs and receives the manufacturer's guarantee for new vehicles.
Bluetooth-Mess-Shunt
Optionally, all of our X series Batteries with a 500a Bluetooth Mess-Shunt are available in order to display the really exact level via the app.
Built -in complete protection / safety fi rst
The integrated, intelligent battery management system (BMS) protects the battery and grants completely harmless use.
Big Power Prismatic Cells (BPC)
In contrast to conventional batteries, which consist of many small interconnected cells, Forster relies on a few larger battery cells. The minus of complexity brings a plus of performance, service life and security.
- Maximum use of space
- Few cell connectors
- Less weight
- Quick assembly
- High security and service life
- High reliability
200a Hochlast Power Battery Management System (BMS)
A battery management system monitors and controls the individual cells of a battery and protects them from damage.
Important functions of the BMS:
- Overload protection
- Deep discharge
- Overvoltage protection
- Active cell balancing
- Complete charging control
- Multi-Charge fashion (MCM)
- Temperature protection of the BMS
- Short -circuit
Protection class IP67
The housing of the Premium battery is completely glued to enable flexible use even under moist or wet conditions.
Best guarantee processing 8 years of guarantee
Forster Individual Batteries grants 8 years of guarantee on his batteries. Even after the guarantee period, our service is there for you and can check and repair your battery. Due to our modular construction and the use of large cells, this is easy, quick and inexpensive.
- 8 years of manufacturer's guarantee
- Fast guarantee processing
- Fast and efficient
- Inexpensive even after the warranty period
|
Data / order no.:
|
F48-100X
|
|
EAN
|
4251847302482
|
|
capacity
|
100Ah
|
|
Replaced lead-gel-agm battery
|
200Ah
|
|
Nominal voltage
|
51.2V
|
|
Energy content
|
5120wh
|
|
Operating voltage
|
42.0V - 58.4V
|
|
Application in parallel circuit
|
Yes, any number of the same type possible in parallel!
|
|
Application of series circuit
|
no
|
|
Cell technology
|
Lithium lifepo4
|
|
Cell type
|
BPC BIG-Prismatic-Power high-load cell-gradeaa
|
|
Loading programs
|
CCCV / iu / iuou / lead acid
|
|
Laddling tension
|
56.8 - 58.4V
|
|
Preservation
|
53.2 - 55.2V
|
|
Maximum charging current
|
100a
|
|
Recommended charging current
|
50a
|
|
Max.entladestrom / 5 sec.
|
400a
|
|
Permanent entertainment current
|
200a
|
|
Battery shutdown
|
42.0V
|
|
BMS Battery Management System
|
integrated
|
|
Remote monitoring optional
|
Optionally possible with 500a Bluetooth measurement shunt and free app
|
|
Remote monitoring/measurement shunt integrated
|
F48-100XB
|
|
Protection class
|
IP67
|
|
Cycles / lifespan at 50% DOD
|
>6000
|
|
Cycles / lifespan at 80% DOD
|
>4000
|
|
Cycles / lifespan at 90% DOD
|
>3000
|
|
Temperature when charging
|
0 ° C to +60 ° C / below 0 ° C The charging current is automatically reduced by "Cell-Frost-Control" in the BMS
|
|
Temporariness in the event of discharge
|
-20 ° C to +60 ° C
|
|
Recommended storage temperature
|
-10 ° C to 30 ° C
|
|
storage
|
80 - 100% loaded / Load the battery every 6 months if not used, battery
|
|
Self -discharge
|
1 - 2% / month
|
|
Connection
|
M8
|
|
Pluspol arrangement
|
Front right
|
|
Final pole
|
M8 interior thread
|
|
Preparation Shunt assembly
|
n/a
|
|
Emergency cutter installed
|
n/a
|
|
Mass
|
520 x 268 x 220 mm
|
|
Installation position
|
arbitrarily, standing, lying, side, upright, head over
|
|
Canbus interface
|
n/a
|
|
Weight
|
38.0kg
|
|
guarantee
|
8 years
|
|
Certification
|
UN38.3 | MSDS | CE | Rohs | ECE-R10 |
Now with 8 years of guarantee!
The highest quality and reliability for almost all areas of application, whether caravan, marine or energy storage. The latest cell technology, optimized BMS 2.0 control and monitoring set the standard for maximum performance and service life. Optimal monitoring and control of the measurement and consumption values by measuring shunt and Bluetooth possible.
Top features
100% usable capacity
With our Premium battery series, 100% of the specified capacity can be used without the battery being damaged. Conventional lithium batteries can often only be discharged up to 92-95%.
Multi-Charge fashion (MCM)
With the Multi-Charge mode (MCM) you can continue to use 99% of the devices such as booster, land charger or solar regulator. This saves you additional costs and receives the manufacturer's guarantee for new vehicles.
Bluetooth-Mess-Shunt
Optionally, all of our X series Batteries with a 500a Bluetooth Mess-Shunt are available in order to display the really exact level via the app.
Built -in complete protection / safety fi rst
The integrated, intelligent battery management system (BMS) protects the battery and grants completely harmless use.
Big Power Prismatic Cells (BPC)
In contrast to conventional batteries, which consist of many small interconnected cells, Forster relies on a few larger battery cells. The minus of complexity brings a plus of performance, service life and security.
- Maximum use of space
- Few cell connectors
- Less weight
- Quick assembly
- High security and service life
- High reliability
200a Hochlast Power Battery Management System (BMS)
A battery management system monitors and controls the individual cells of a battery and protects them from damage.
Important functions of the BMS:
- Overload protection
- Deep discharge
- Overvoltage protection
- Active cell balancing
- Complete charging control
- Multi-Charge fashion (MCM)
- Temperature protection of the BMS
- Short -circuit
Protection class IP67
The housing of the Premium battery is completely glued to enable flexible use even under moist or wet conditions.
Best guarantee processing 8 years of guarantee
Forster Individual Batteries grants 8 years of guarantee on his batteries. Even after the guarantee period, our service is there for you and can check and repair your battery. Due to our modular construction and the use of large cells, this is easy, quick and inexpensive.
- 8 years of manufacturer's guarantee
- Fast guarantee processing
- Fast and efficient
- Inexpensive even after the warranty period
|
Data / order no.:
|
F48-100X
|
|
EAN
|
4251847302482
|
|
capacity
|
100Ah
|
|
Replaced lead-gel-agm battery
|
200Ah
|
|
Nominal voltage
|
51.2V
|
|
Energy content
|
5120wh
|
|
Operating voltage
|
42.0V - 58.4V
|
|
Application in parallel circuit
|
Yes, any number of the same type possible in parallel!
|
|
Application of series circuit
|
no
|
|
Cell technology
|
Lithium lifepo4
|
|
Cell type
|
BPC BIG-Prismatic-Power high-load cell-gradeaa
|
|
Loading programs
|
CCCV / iu / iuou / lead acid
|
|
Laddling tension
|
56.8 - 58.4V
|
|
Preservation
|
53.2 - 55.2V
|
|
Maximum charging current
|
100a
|
|
Recommended charging current
|
50a
|
|
Max.entladestrom / 5 sec.
|
400a
|
|
Permanent entertainment current
|
200a
|
|
Battery shutdown
|
42.0V
|
|
BMS Battery Management System
|
integrated
|
|
Remote monitoring optional
|
Optionally possible with 500a Bluetooth measurement shunt and free app
|
|
Remote monitoring/measurement shunt integrated
|
F48-100XB
|
|
Protection class
|
IP67
|
|
Cycles / lifespan at 50% DOD
|
>6000
|
|
Cycles / lifespan at 80% DOD
|
>4000
|
|
Cycles / lifespan at 90% DOD
|
>3000
|
|
Temperature when charging
|
0 ° C to +60 ° C / below 0 ° C The charging current is automatically reduced by "Cell-Frost-Control" in the BMS
|
|
Temporariness in the event of discharge
|
-20 ° C to +60 ° C
|
|
Recommended storage temperature
|
-10 ° C to 30 ° C
|
|
storage
|
80 - 100% loaded / Load the battery every 6 months if not used, battery
|
|
Self -discharge
|
1 - 2% / month
|
|
Connection
|
M8
|
|
Pluspol arrangement
|
Front right
|
|
Final pole
|
M8 interior thread
|
|
Preparation Shunt assembly
|
n/a
|
|
Emergency cutter installed
|
n/a
|
|
Mass
|
520 x 268 x 220 mm
|
|
Installation position
|
arbitrarily, standing, lying, side, upright, head over
|
|
Canbus interface
|
n/a
|
|
Weight
|
38.0kg
|
|
guarantee
|
8 years
|
|
Certification
|
UN38.3 | MSDS | CE | Rohs | ECE-R10 |
Now with 8 years of guarantee!
The highest quality and reliability for almost all areas of application, whether caravan, marine or energy storage. The latest cell technology, optimized BMS 2.0 control and monitoring set the standard for maximum performance and service life. Optimal monitoring and control of the measurement and consumption values by measuring shunt and Bluetooth possible.
Top features
100% usable capacity
With our Premium battery series, 100% of the specified capacity can be used without the battery being damaged. Conventional lithium batteries can often only be discharged up to 92-95%.
Multi-Charge fashion (MCM)
With the Multi-Charge mode (MCM) you can continue to use 99% of the devices such as booster, land charger or solar regulator. This saves you additional costs and receives the manufacturer's guarantee for new vehicles.
Bluetooth-Mess-Shunt
Optionally, all of our X series Batteries with a 500a Bluetooth Mess-Shunt are available in order to display the really exact level via the app.
Built -in complete protection / safety fi rst
The integrated, intelligent battery management system (BMS) protects the battery and grants completely harmless use.
Big Power Prismatic Cells (BPC)
In contrast to conventional batteries, which consist of many small interconnected cells, Forster relies on a few larger battery cells. The minus of complexity brings a plus of performance, service life and security.
- Maximum use of space
- Few cell connectors
- Less weight
- Quick assembly
- High security and service life
- High reliability
200a Hochlast Power Battery Management System (BMS)
A battery management system monitors and controls the individual cells of a battery and protects them from damage.
Important functions of the BMS:
- Overload protection
- Deep discharge
- Overvoltage protection
- Active cell balancing
- Complete charging control
- Multi-Charge fashion (MCM)
- Temperature protection of the BMS
- Short -circuit
Protection class IP67
The housing of the Premium battery is completely glued to enable flexible use even under moist or wet conditions.
Best guarantee processing 8 years of guarantee
Forster Individual Batteries grants 8 years of guarantee on his batteries. Even after the guarantee period, our service is there for you and can check and repair your battery. Due to our modular construction and the use of large cells, this is easy, quick and inexpensive.
- 8 years of manufacturer's guarantee
- Fast guarantee processing
- Fast and efficient
- Inexpensive even after the warranty period
|
Data / order no.:
|

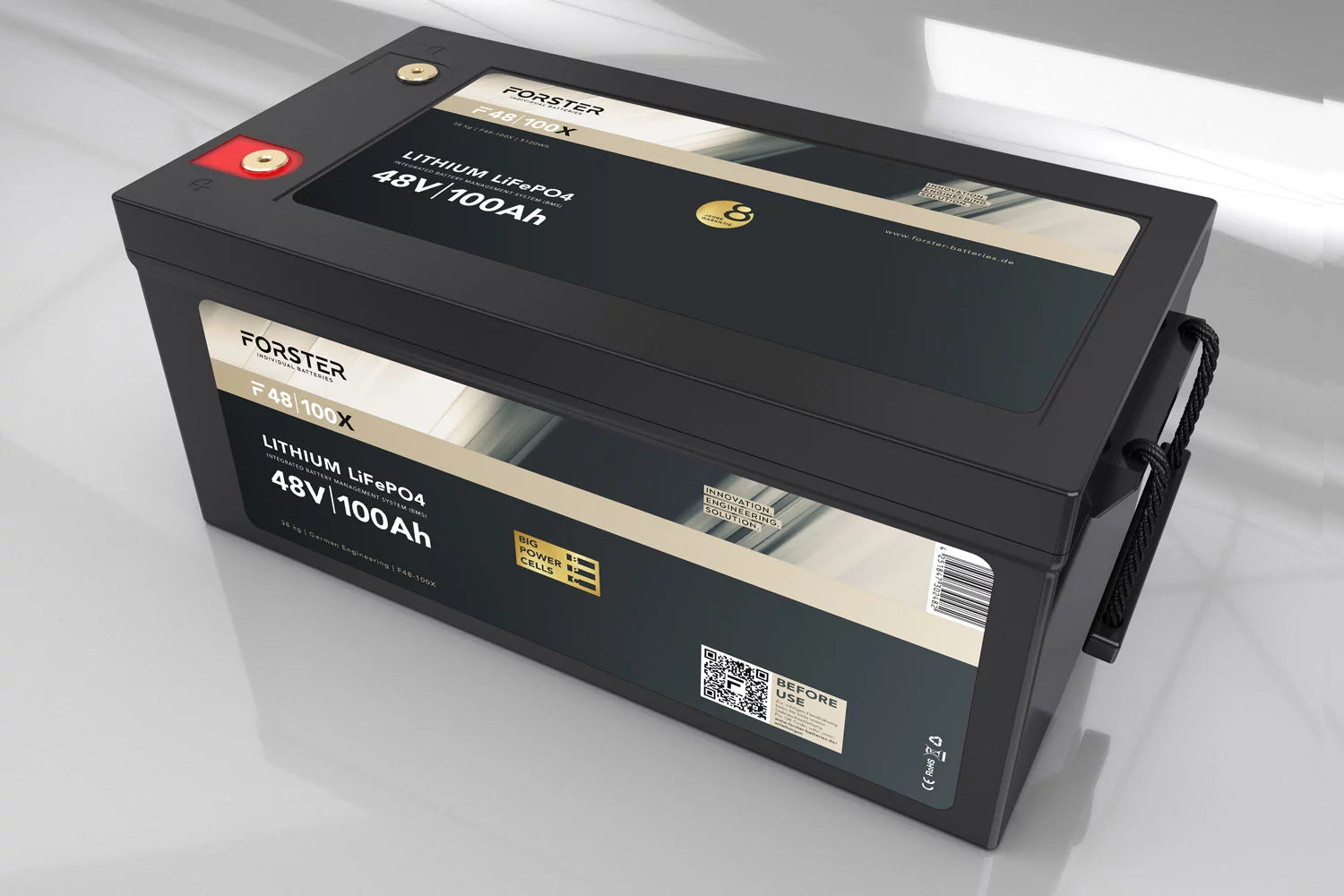

F48-100X
|
|
EAN
|
4251847302482
|
|
capacity
|
100Ah
|
|
Replaced lead-gel-agm battery
|
200Ah
|
|
Nominal voltage
|
51.2V
|
|
Energy content
|
5120wh
|
|
Operating voltage
|
42.0V - 58.4V
|
|
Application in parallel circuit
|
Yes, any number of the same type possible in parallel!
|
|
Application of series circuit
|
no
|
|
Cell technology
|
Lithium lifepo4
|
|
Cell type
|
BPC BIG-Prismatic-Power high-load cell-gradeaa
|
|
Loading programs
|
CCCV / iu / iuou / lead acid
|
|
Laddling tension
|
56.8 - 58.4V
|
|
Preservation
|
53.2 - 55.2V
|
|
Maximum charging current
|
100a
|
|
Recommended charging current
|
50a
|
|
Max.entladestrom / 5 sec.
|
400a
|
|
Permanent entertainment current
|
200a
|
|
Battery shutdown
|
42.0V
|
|
BMS Battery Management System
|
integrated
|
|
Remote monitoring optional
|
Optionally possible with 500a Bluetooth measurement shunt and free app
|
|
Remote monitoring/measurement shunt integrated
|
F48-100XB
|
|
Protection class
|
IP67
|
|
Cycles / lifespan at 50% DOD
|
>6000
|
|
Cycles / lifespan at 80% DOD
|
>4000
|
|
Cycles / lifespan at 90% DOD
|
>3000
|
|
Temperature when charging
|
0 ° C to +60 ° C / below 0 ° C The charging current is automatically reduced by "Cell-Frost-Control" in the BMS
|
|
Temporariness in the event of discharge
|
-20 ° C to +60 ° C
|
|
Recommended storage temperature
|
-10 ° C to 30 ° C
|
|
storage
|
80 - 100% loaded / Load the battery every 6 months if not used, battery
|
|
Self -discharge
|
1 - 2% / month
|
|
Connection
|
M8
|
|
Pluspol arrangement
|
Front right
|
|
Final pole
|
M8 interior thread
|
|
Preparation Shunt assembly
|
n/a
|
|
Emergency cutter installed
|
n/a
|
|
Mass
|
520 x 268 x 220 mm
|
|
Installation position
|
arbitrarily, standing, lying, side, upright, head over
|
|
Canbus interface
|
n/a
|
|
Weight
|
38.0kg
|
|
guarantee
|
8 years
|
|
Certification
|
UN38.3 | MSDS | CE | Rohs | ECE-R10
|
