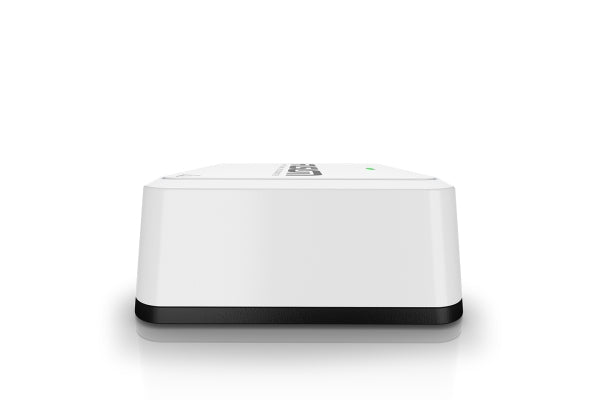

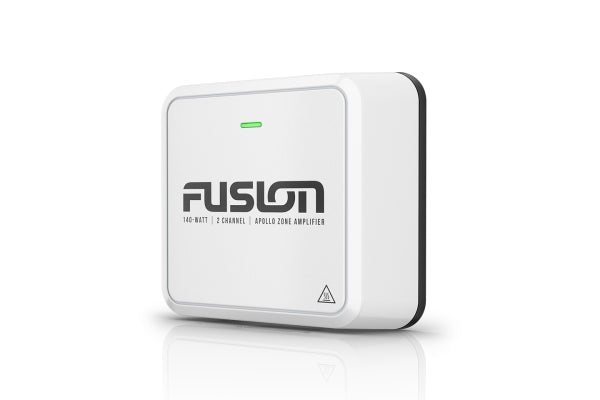

Fusion Apollo zones amplifier 140W

FusionSKU: 010-02569-00

Price:
Sale price€169,90 EUR Regular price€199,96 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

It is the difference between listening and feeling music.

150 watt RMS per channel

Enture the moment with an Apollo ™ Marine amplifier-specially developed for use with your Fusion® DSP-capable Marine stereo system and the merger speakers.

This powerful and efficient 8-channel amplifier makes up the difference between listening and feeling music. With impressive 150 watt RMS per channel (at 4 ohms), this amplifier can supply up to eight loudspeaker couples or four pairs of loudspeakers and two subwoofers. The EASY Tune function automatically regulates the audio settings for the best sound quality without manual adjustments (setup via the Fusion Link ™ app on a compatible smartphone).

Characteristics:

Impressive performance: 150 watt RMS per channel (on 4 ohms), which can supply up to eight speakers or four pairs of loudspeakers and two subwoofers.

Efficient Class-D design: Consume less electricity so that you can listen to music longer at higher volume without the battery being loaded.

Easy Tune function: Adjust the audio settings automatically to achieve the best possible sound quality without manual adjustments (setup via the fusion link app on a compatible smartphone required).

LED display: Show problems with electrical currents and short circuits as well as the temperature.

Low harmonious distortion: The amplifier was developed with minimal distortions and noise, which enables better audio quality.

Ignition -protected: Intelligent electronic fuse prevents damage caused by over/understrom, temperature, output ceiling and other errors.

Conformally coated circuit boards: The amplifier board was specially coated to ensure better protection against the elements of the sea.

Powder -coated aluminum surface: Salt fog, temperature, vibration and UV-tested with a modern, aesthetic design that gives your boat style.

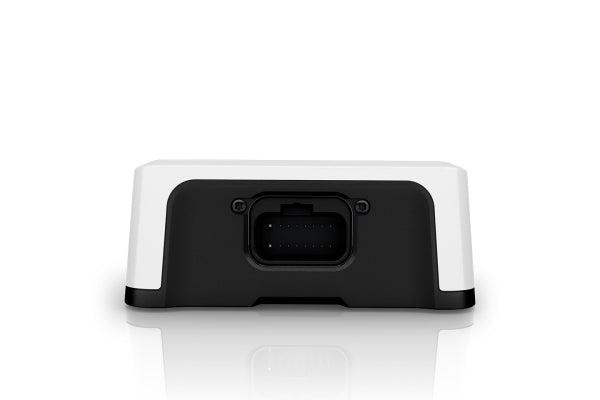

easy installation: Proprietary cable connections and assembly brain are included. With the cable connections you can push your speakers/subwoofer forward, while you can easily attach the amplifier with the assembly brain to achieve a clean end.

High-power mode: The scope of delivery includes adapters for high-power mode that simplify the bridging of two channels in high-power mode and increase the output power.

True-Marine ™ design: Developed in order to withstand the toughest maritime conditions season after season and equipped with a 3-year guarantee ..



Important note: The Apollo amplifiers only work with the DSP function for fusion audio systems and should only be used with fusion speakers.

If this is taken into account, the amplifier automatically adjusts to the best sound image for each boat type via the DSP function.

The Apollo amplifiers are currently compatible with the following radios: Apollo MS-RA770, Apollo MS-RA670, Apollo WB670 (Blackbox Radio) and the MS-RA210.

specification

Dimensions without bracket (BXHXT)

359 x 180 x 45 mm

Dimensions with bracket (BXHXT)

359 x 180 x 50 mm

Weight

3.15 kg

Waterproofness

IPX2

Amplifier

Class-D

CEA-2006 nominal output

150 -watt RMS X 8 @ 14.4 V Input - 4 Ohm <1% THD

Total nominal output performance - 2 ohms (watts)

290 -watt RMS X 8 @ 14.4 V Input - 2 Ohm <1% THD

Total nominal output performance - 4 ohms bridged (watts)

580 -Watt RMS X 4 @ 14.4 V Input - 4 Ohm Brided <1% THD

Top performance (watts)

2400 watts

Sensitivity

1.3 V RMS

Impedance

22k ohm

Operating voltage

10.8 V - 16 V DC

Electricity consumption (standby)

<5 MA @ 14.4 V. Entrance

Electricity intake (idle)

<1.60 a @ 14.4 V input

Electricity intake (max.)

104 a

Security value

125 a electronic fuse (no exchange required)

Igitical protection (SAE J1171)

Yes

Protective circuits

Polation, sub/overvoltage at the entrance, over temperature, short circuit at the output

Operating temperature range

0 ° to 50 ° C

guarantee

3 years
